Akustik dB Finder
Channel Clip - UK
System C
Data: 14/06/2023
| Ln,w(CI) | IIC | Rw(C,Ctr) | STC |
|---|---|---|---|
| 56(-) | 54 | 63(-,-) | 64 |

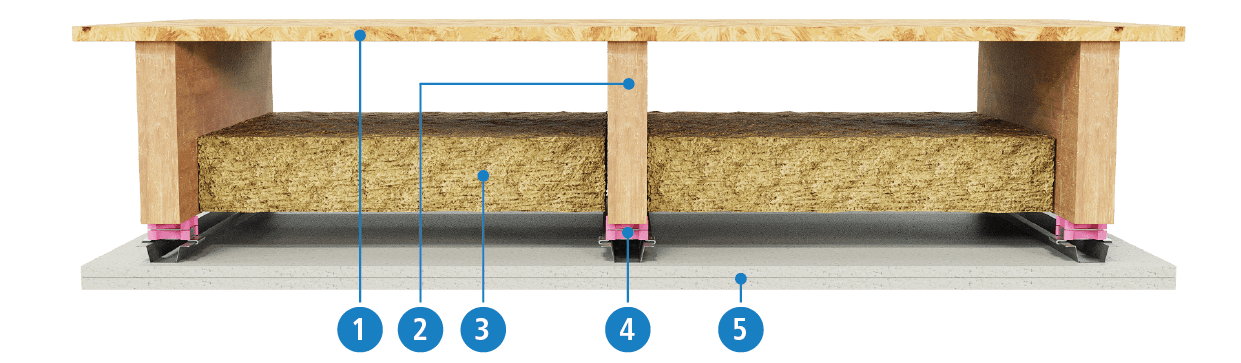

| N. | Componente | Materiale | Altezza | Larghezza | Peso |
|---|---|---|---|---|---|
| 1 | OSB | -- | 18 mm | -- | -- |
| 2 | Timber Joists | -- | 50 mm | 235 mm | -- |
| 3 | Knauf Earthwool | -- | 100 mm | -- | -- |
| 4 | AMC Akustik+Sylomer(R) 15 Channel Clips with MF5 Ceiling Channel | -- | -- | -- | -- |
| 5 | 2x Knauf Soundshield Plus Plasterboard | -- | 15 mm | -- | -- |
