Akustik dB Finder
Suspended ceilings in CLT structures
System 1
Data: 25/04/2022
| Ln,w(CI) | IIC | Rw(C,Ctr) | STC |
|---|---|---|---|
| 51(-) | 59 | 69(-,-) | - |

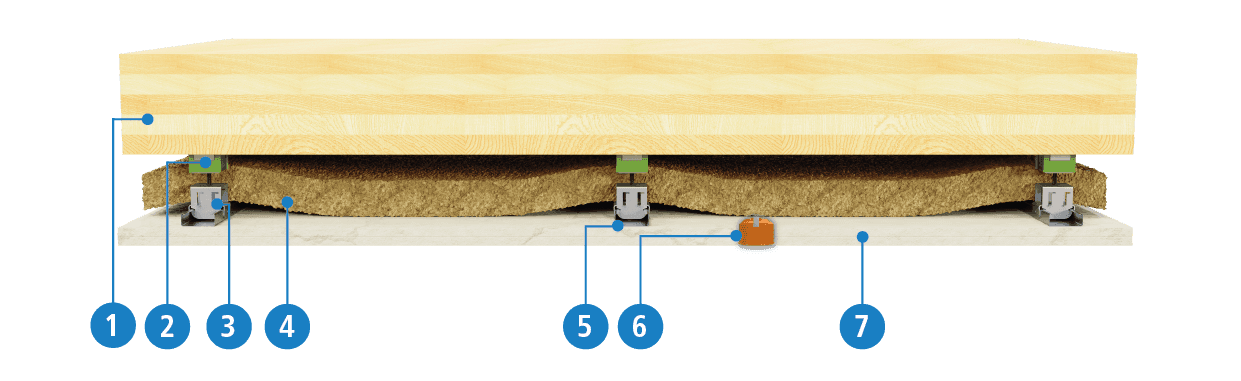

| N. | Componente | Materiale | Altezza | Larghezza | Peso |
|---|---|---|---|---|---|
| 1 | CLT Ceiling | Wood | -- | -- | -- |
| 2 | Akustik 1 + Sylomer® 30 | Sylomer | 100 mm | -- | -- |
| 3 | Akustik Super T-47 Fixation | Steel | -- | -- | -- |
| 4 | Mineral Wool | Isolator | 100 mm | -- | -- |
| 5 | Furring Channel | Steel | -- | -- | -- |
| 6 | Luminaires + junction boxes | Plastic | -- | -- | -- |
| 7 | 2x Gypsum board Prégyplac BA18 | Gypsum | 18 mm | -- | -- |
