Akustik dB Finder
NRC Canada
Configuration F1
Data: 27/04/2022
| Ln,w(CI) | IIC | Rw(C,Ctr) | STC |
|---|---|---|---|
| 41(-) | 69 | 68(-,-) | 68 |

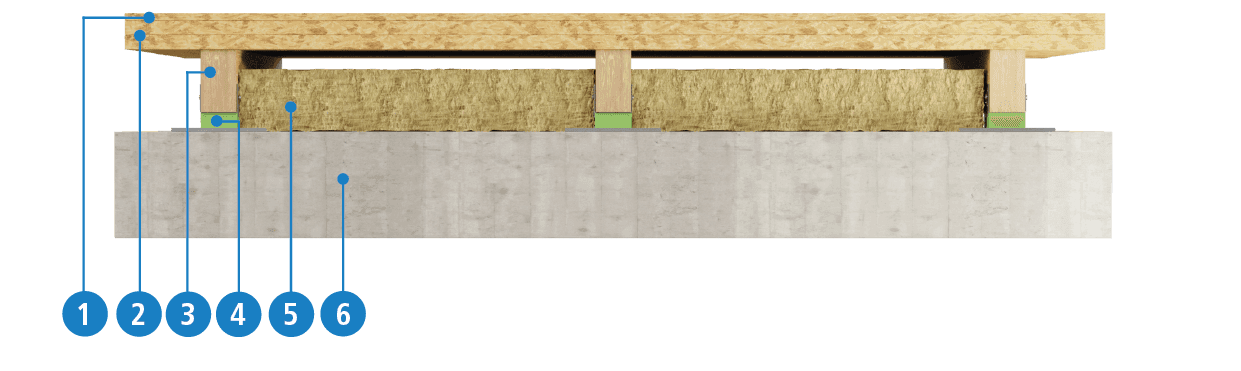

| N. | Componente | Materiale | Altezza | Larghezza | Peso |
|---|---|---|---|---|---|
| 1 | Plywood | Wood | 9 mm | -- | -- |
| 2 | 2x Plywood | Wood | 19 mm | -- | -- |
| 3 | Wooden battens | Wood | 89 mm | -- | -- |
| 4 | Akustik + Sylomer Floor Mount 25 | Sylomer | 116 mm | -- | -- |
| 5 | Glass Fibre Insulation | Isolator | 89 mm | -- | -- |
| 6 | Concrete slab | Concrete | 155 mm | -- | -- |
