Akustik dB Finder
CLT
System 3
Data: 08/05/2022
| Ln,w(CI) | IIC | Rw(C,Ctr) | STC |
|---|---|---|---|
| 50(0) | 60 | 65(-1,-7) | 66 |

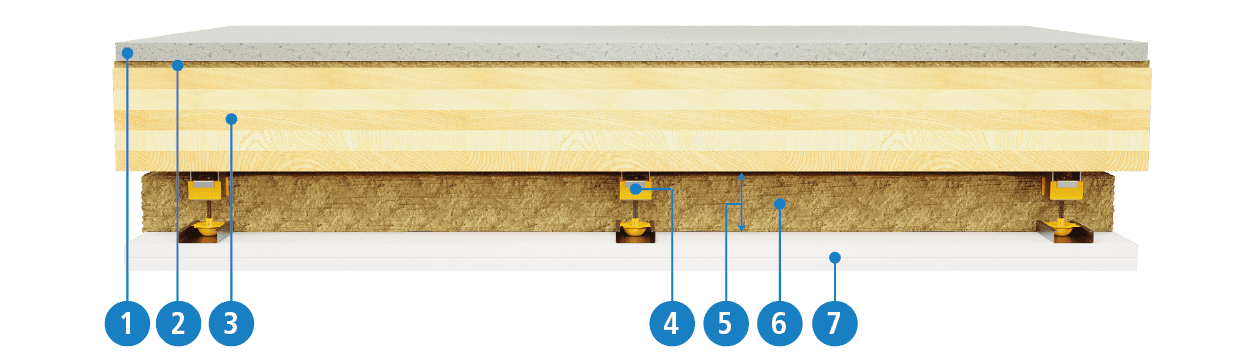

| N. | Componente | Materiale | Altezza | Larghezza | Peso |
|---|---|---|---|---|---|
| 1 | Fermacell Fiberboard | Fermacell | 25 mm | -- | -- |
| 2 | Mineral Wool | Isolator | 10 mm | -- | -- |
| 3 | CLT 140 | Wood | 140 mm | -- | -- |
| 4 | Akustik 1 + Sylomer acoustic hangers | Sylomer | -- | -- | -- |
| 5 | Air gap | Air | 100 mm | -- | -- |
| 6 | Mineral Wool | Isolator | 80 mm | -- | -- |
| 7 | 2x 18mm Placoplatre BA18 Plasterboards | Plaster | 18 mm | -- | -- |
