Akustik dB Finder
CLT
System 5
Data: 08/05/2022
| Ln,w(CI) | IIC | Rw(C,Ctr) | STC |
|---|---|---|---|
| 56(1) | 54 | 63(-2,-7) | 64 |

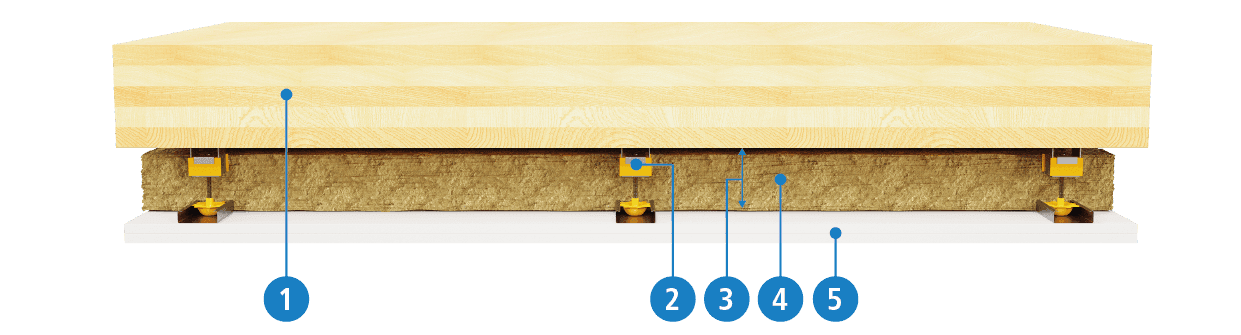

| N. | Componente | Materiale | Altezza | Larghezza | Peso |
|---|---|---|---|---|---|
| 1 | CLT 140 | Wood | 140 mm | -- | -- |
| 2 | Akustik 1 + Sylomer acoustic hangers | Sylomer | -- | -- | -- |
| 3 | Air gap | Air | 105 mm | -- | -- |
| 4 | Mineral Wool | Isolator | 80 mm | -- | -- |
| 5 | 2x 12,5mm Placoplatre BA13 Plasterboards | Plaster | 12 mm | -- | -- |
