Akustik dB Finder
CLT
System 8
Data: 08/05/2022
| Ln,w(CI) | IIC | Rw(C,Ctr) | STC |
|---|---|---|---|
| 47(2) | 63 | 74(-2,-9) | 74 |

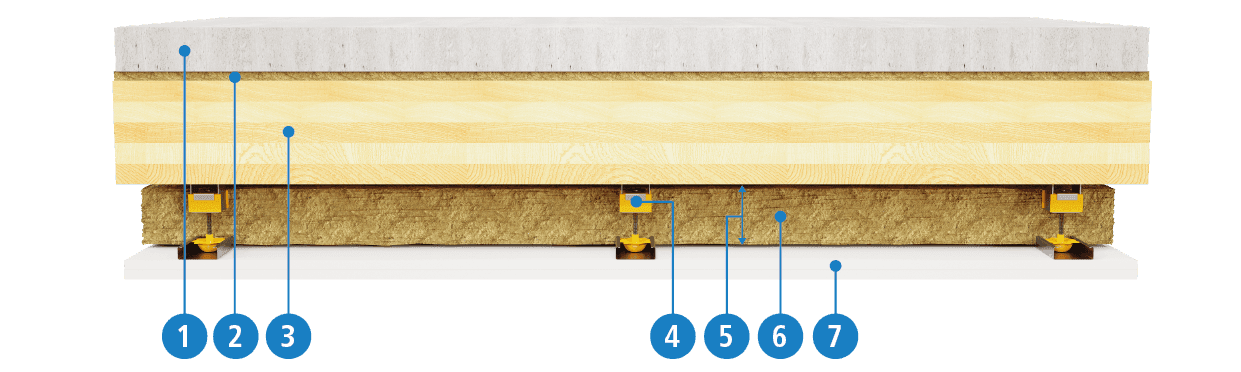

| N. | Componente | Materiale | Altezza | Larghezza | Peso |
|---|---|---|---|---|---|
| 1 | Reinforced mortar | Concrete | 60 mm | -- | -- |
| 2 | Mineral Wool | Isolator | 13 mm | -- | -- |
| 3 | CLT 140 | Wood | 140 mm | -- | -- |
| 4 | Akustik 1 + Sylomer acoustic hangers | Sylomer | -- | -- | -- |
| 5 | Air gap | Air | 105 mm | -- | -- |
| 6 | Mineral Wool | Isolator | 80 mm | -- | -- |
| 7 | 2x 12,5mm Placoplatre BA13 Plasterboards | Plaster | 12 mm | -- | -- |
