Akustik dB Finder
CLT
System 5
Data: 09/05/2022
| Ln,w(CI) | IIC | Rw(C,Ctr) | STC |
|---|---|---|---|
| 47(1) | 63 | 73(-3,-10) | 73 |

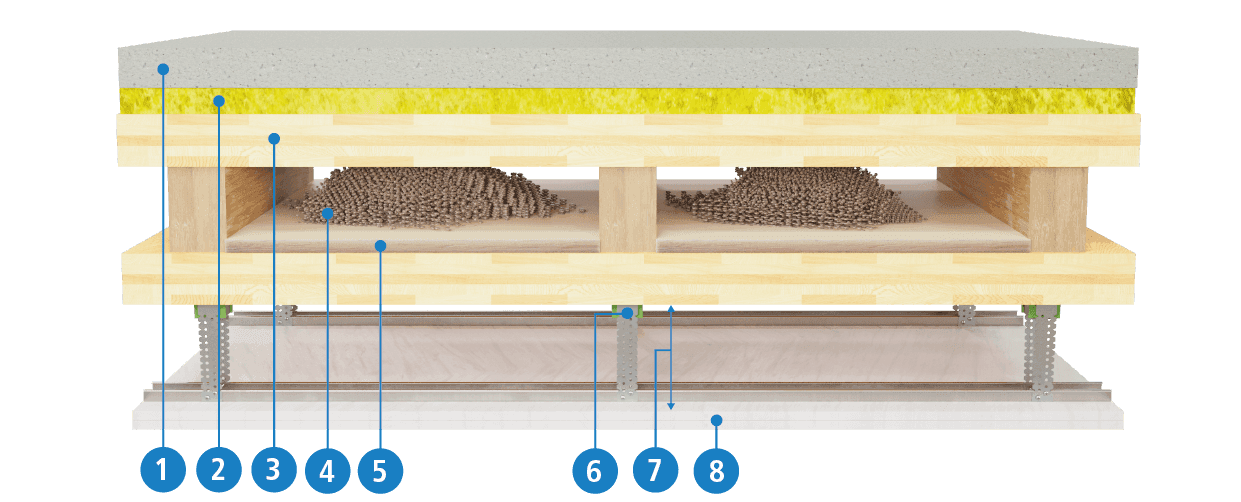

| N. | Componente | Materiale | Altezza | Larghezza | Peso |
|---|---|---|---|---|---|
| 1 | Wet screed | Screed | 55 mm | -- | -- |
| 2 | ISOVER EP1 layer | Isolator | 40 mm | -- | -- |
| 3 | Best Wood CLT | Wood | 260 mm | -- | -- |
| 4 | FLOOR 220 Filling | - | -- | -- | 40 kg |
| 5 | Plasterboard | Plaster | 12 mm | -- | -- |
| 6 | EP 700 + Sylomer® acoustic hangers | Sylomer | -- | -- | -- |
| 7 | Air gap | Air | 100 mm | -- | -- |
| 8 | 2x Plasterboard | Plaster | 12 mm | -- | -- |
