AMC-MECANOCAUCHO® INTRODUCES THE NEW TFS 25 vibration isolatorS
The AMC-MECANOCAUCHO® type TFS 25 are ideal for mobile applications for load ranging 0Kg to 50Kg. Its specific design allows these vibration isolators provide very stable suspended elements on mobile applications where the horizontal movement has to be controlled.
TECHNICAL CHARACTERISTICS
The design of this vibration isolators is composed of two vibration isolators symmetrically inverted. This feature allows a symmetric stiffness on traction or compression loads. These mounts can be supplied with rebound washers to limit movement in compression/traction. Like the rest of the AMC-MECANOCAUCHO TF vibration isolators the horizontal stability is assured thanks to the reduced section of rubber in the centre of the mount.
The AMC-MECANOCAUCHO TFS 25 vibration isolators are manufactured in 60 shore A as standard rubber hardness to suit load ranges from 0 to 50Kg load applications. For higher or lower loads these vibration isolators can be supplied in 45 or 70 shore A
The metal parts are coated with Zinc Nickel coating in order to withstand to arduous corrosive environments.

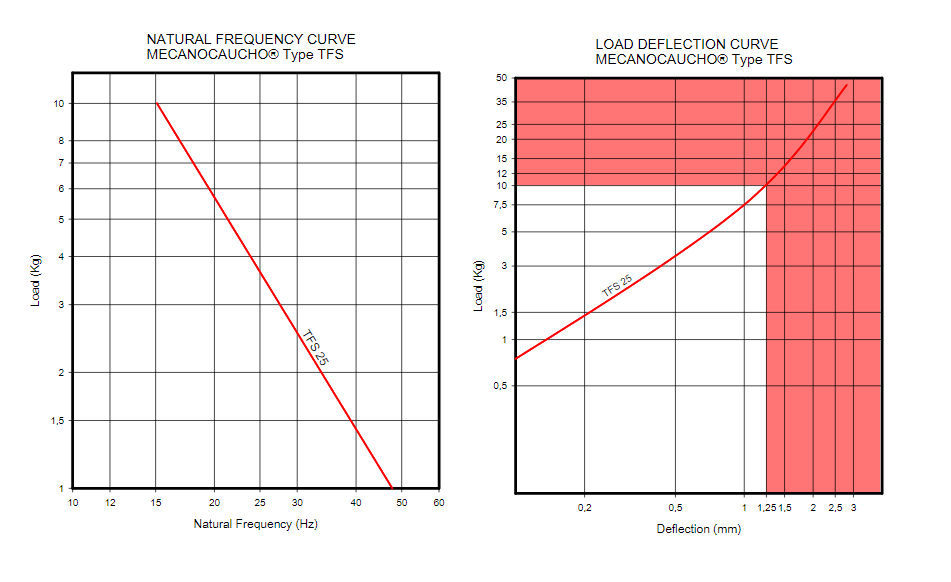

ELASTICAL PROPERTIES
APPLICATIONS
The AMC-MECANOCAUCHO® TFS 25 vibration isolators are used on mobile applications where disturbing frequency is above 1000 rpm and high stability is required, for example industrial vehicle electric cabinets and small electric engines, mobile HVAC equipment, generator electrical cabinets sets, pumps or ventilators.
