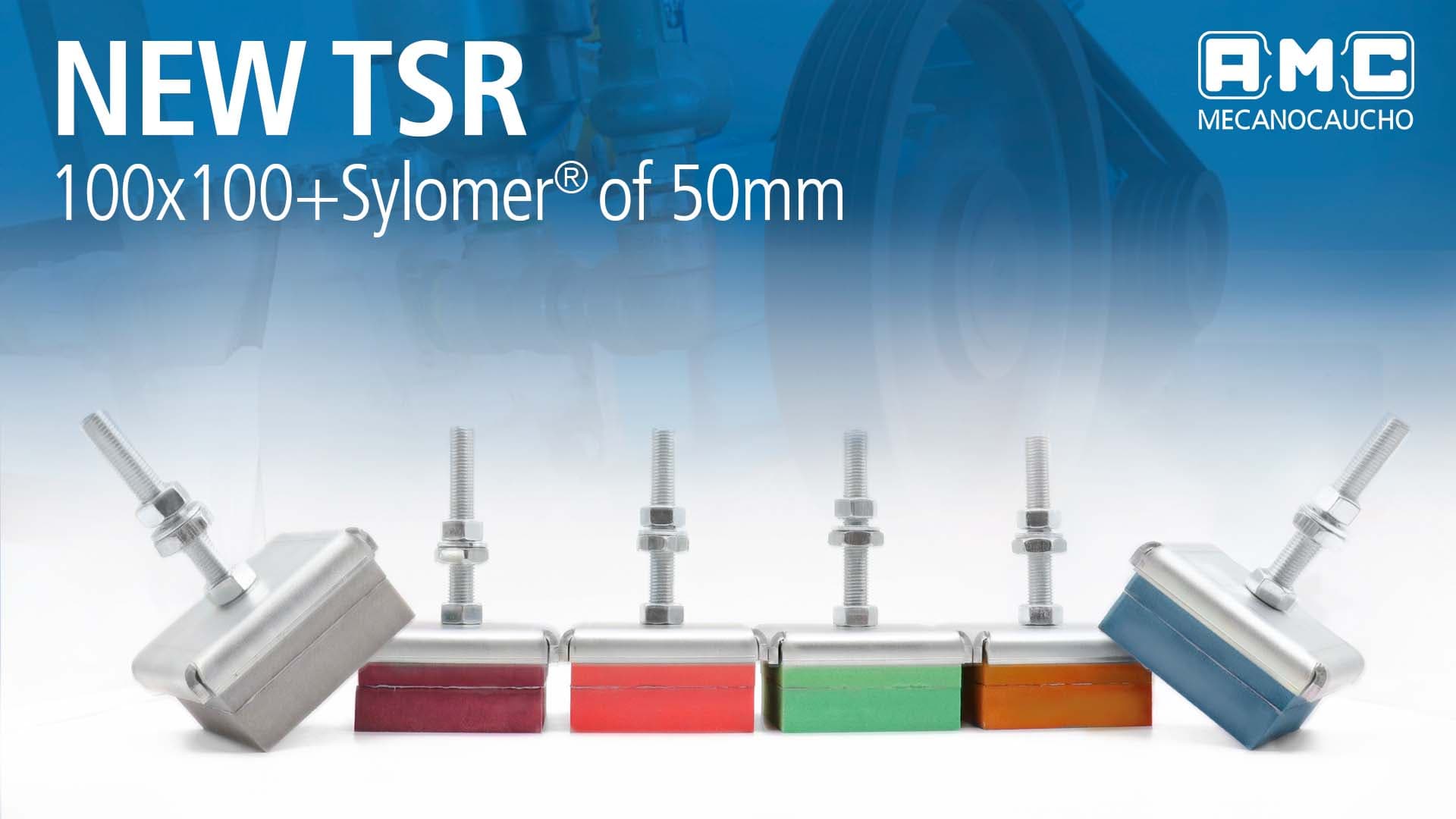

AMC MECANOCAUCHO ADDS NEW TSR 100X100+SYLOMER® VIBRATION ISOLATORS IN 50MM THICKNESS TO ITS AMC RANGE OF MOUNTS
5/11/2022
In order to match the application, 6 different densities of Sylomer can be supplied. This Sylomer® is oil resistant and has a temperature range of -30ºC/+70ºC.
The TSR mounts can be fixed mechanically thanks to the internal nut incorporated in the metallic part that is treated with an anticorrosive coat. This coating complies to the RoHs regulations.
RANGE OF THE NEW TSR 100X100 SR/50mm + SYLOMER® VIBRATION ISOLATORS
TSR 100X100 SR/50
| CODE | SYLOMER TYPE | LOAD MAX.(kg) | SYLOMER COLOUR |
|---|---|---|---|
| 157091 | SR 55 | 44 | GREEN |
| 157092 | SR 110 | 82 | BROWN |
| 157093 | SR 220 | 148 | RED |
| 157094 | SR 450 | 274 | GREY |
| 157095 | SR 850 | 409 | TURQUOISE |
| 157096 | SR 1200 | 521 | VIOLET |
TSR 100X100 SR/50 + LEVELLING KIT
| CODE | SYLOMER TYPE | LOAD MAX.(kg) | SYLOMER COLOUR |
|---|---|---|---|
| 157170 | SR 55 | 44 | GREEN |
| 157171 | SR 110 | 82 | BROWN |
| 157172 | SR 220 | 148 | RED |
| 157173 | SR 450 | 274 | GREY |
| 157174 | SR 850 | 409 | TURQUOISE |
| 157175 | SR 1200 | 521 | VIOLET |
ELASTIC PROPERTIES OF THE NEW TSR 100X100 SR/50mm + SYLOMER® VIBRATION ISOLATORS
Feel free to contact our application engineers for more information on this product.
