AMC MECANOCAUCHO ADDS NEW TSR 150X150+SYLOMER® ANTI-VIBRATION MOUNTS IN 50MM THICKNESS TO ITS AMC RANGE OF MOUNTS
8/16/2022
In order to match the application, 6 different densities of Sylomer can be supplied. This Sylomer® is oil resistant and has a temperature range of -30ºC/+70ºC.
The TSR mounts can be fixed mechanically thanks to the internal nut incorporated in the metallic part that is treated with an anticorrosive coat. This coating complies to the RoHs regulations.

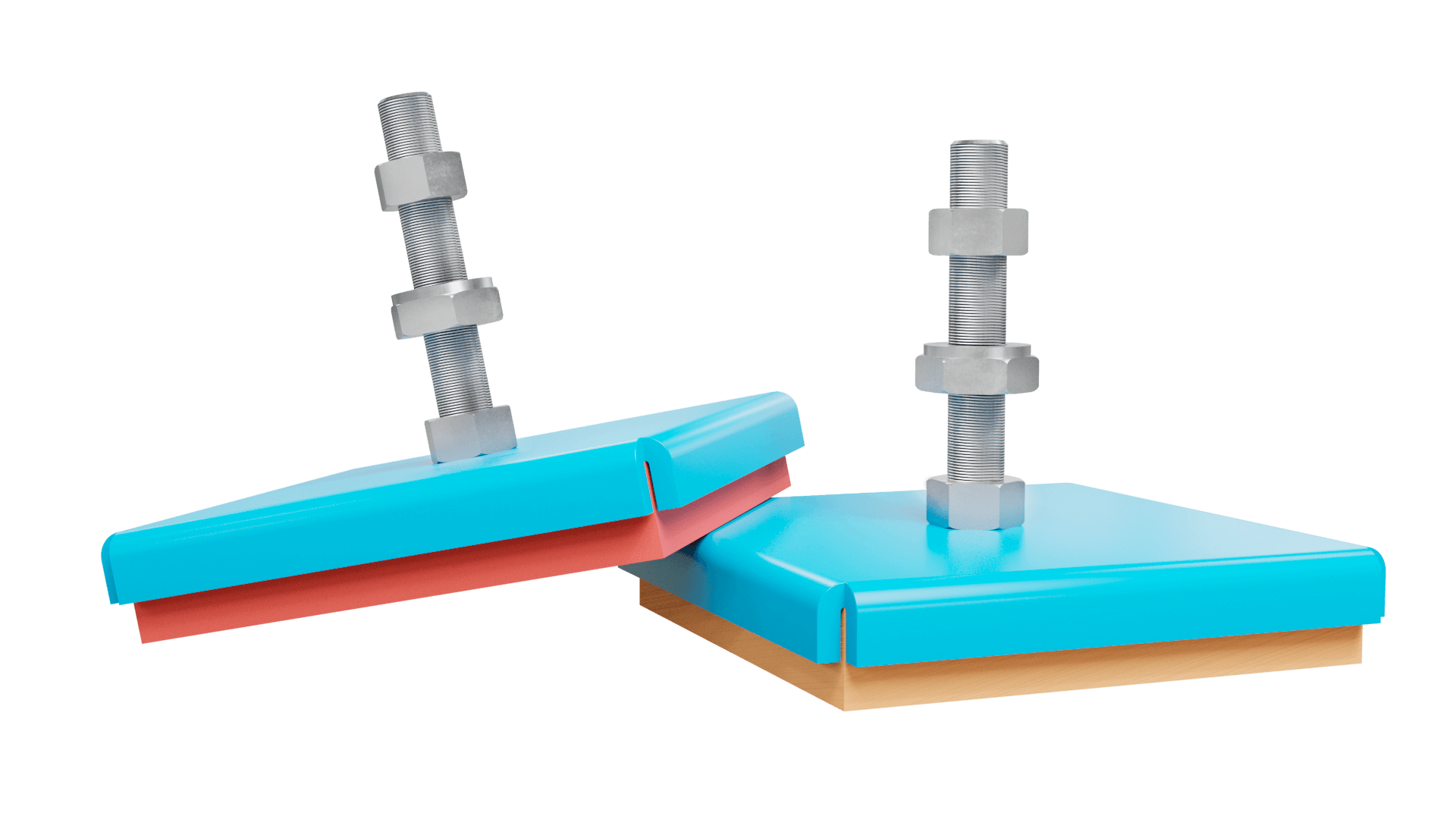

RANGE OF THE NEW TSR 150X150 SR/50mm + SYLOMER® ANTI-VIBRATION MOUNTS
TSR 150X150 SR/50
| CODE | SYLOMER TYPE | LOAD MAX.(kg) | SYLOMER COLOUR |
|---|---|---|---|
| 157145 | SR 110 | 202 | BROWN |
| 157156 | SR 220 | 375 | RED |
| 157154 | SR 450 | 709 | GREY |
| 157155 | SR 850 | 1093 | TURQUOISE |
| 157157 | SR 1200 | 1418 | VIOLET |
TSR 150X150 SR/50 + LEVELLING KIT
| CODE | SYLOMER TYPE | LOAD MAX.(kg) | SYLOMER COLOUR |
|---|---|---|---|
| 157176 | SR 55 | 44 | GREEN |
| 157177 | SR 110 | 82 | BROWN |
| 157178 | SR 220 | 148 | RED |
| 157179 | SR 450 | 274 | GREY |
| 157180 | SR 850 | 409 | TURQUOISE |
ELASTIC PROPERTIES OF THE NEW TSR 150X150 SR/50mm + SYLOMER® ANTI-VIBRATION MOUNTS
Feel free to contact our technical department if you require help on this topic.
