Wet construction gym floors
Wet floor systems for acoustic insulation in gyms
Wet floors for gyms allow for the creation of high-mass floating solutions, particularly suited for reducing impacts, vibrations, and structural noise. By using a correctly sized elastic layer beneath the screed or slab, the flooring is decoupled from the structure, improving acoustic comfort in adjacent spaces.
G-Fit Impact Extreme + Shock Absorb Advance Floor Insulation:
Brick wall - 100mm
Plasterboard
Skirting board
Sports floor finish
Shock Absorb Advance - 25mm
Perimeter joint - 10mm
Concrete slab - 90mm
Composite sheet - 16mm
Placo Rigi 60
Floor Block AFB 110 - 50mm
Rock wool - 50mm
Reinforced concrete structural slab - 140mm

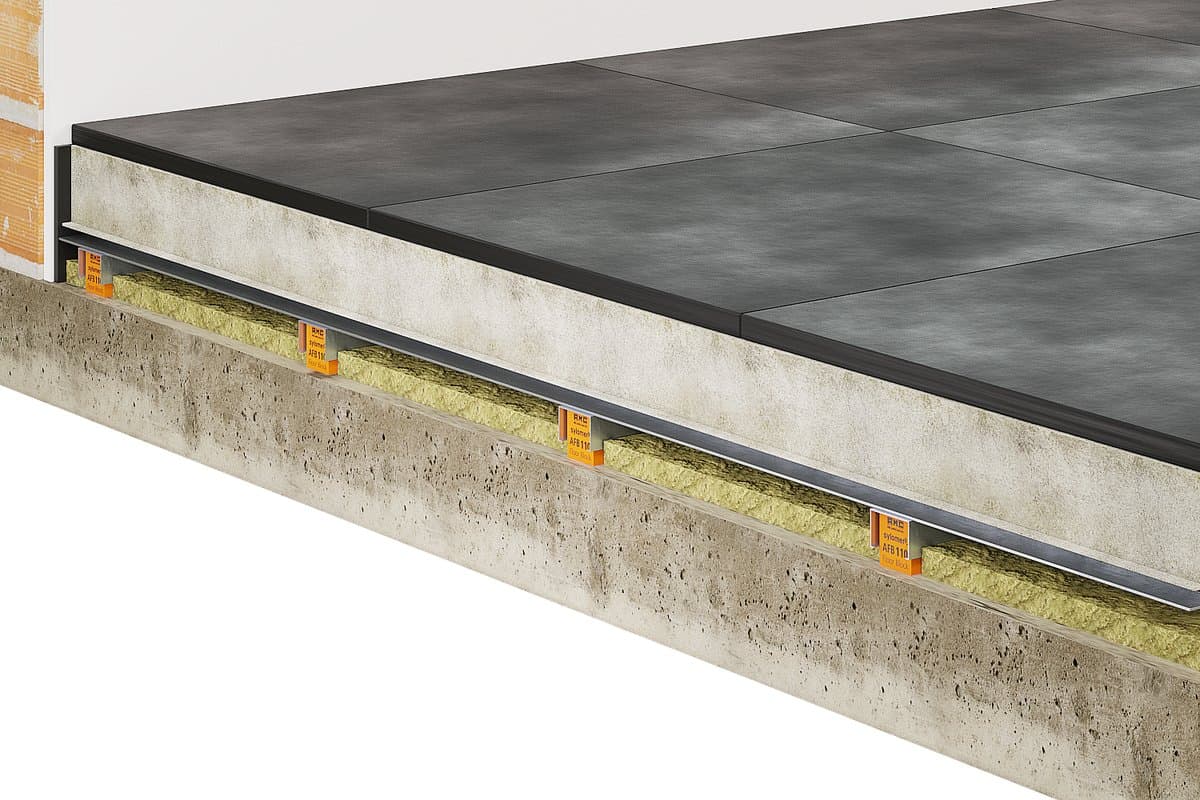

Sylomer® floor blocks
Sylomer® floor blocks can be used in a wet construction system as the base for a lost formwork. They provide great improvements in impact noise insulation and can be adapted to fit most system height requirements.
Average impact noise improvement: 31 dB
Dimensions: 50 x 50 x 50 mm
FZH + Sylomer® jack-up mounts
The FZH + Sylomer® floating floor mounts are an example of a wet construction jack-up solution. They provide good isolation while not requiring as much space as the spring solution.
Natural frequency: as low as 8.5 Hz

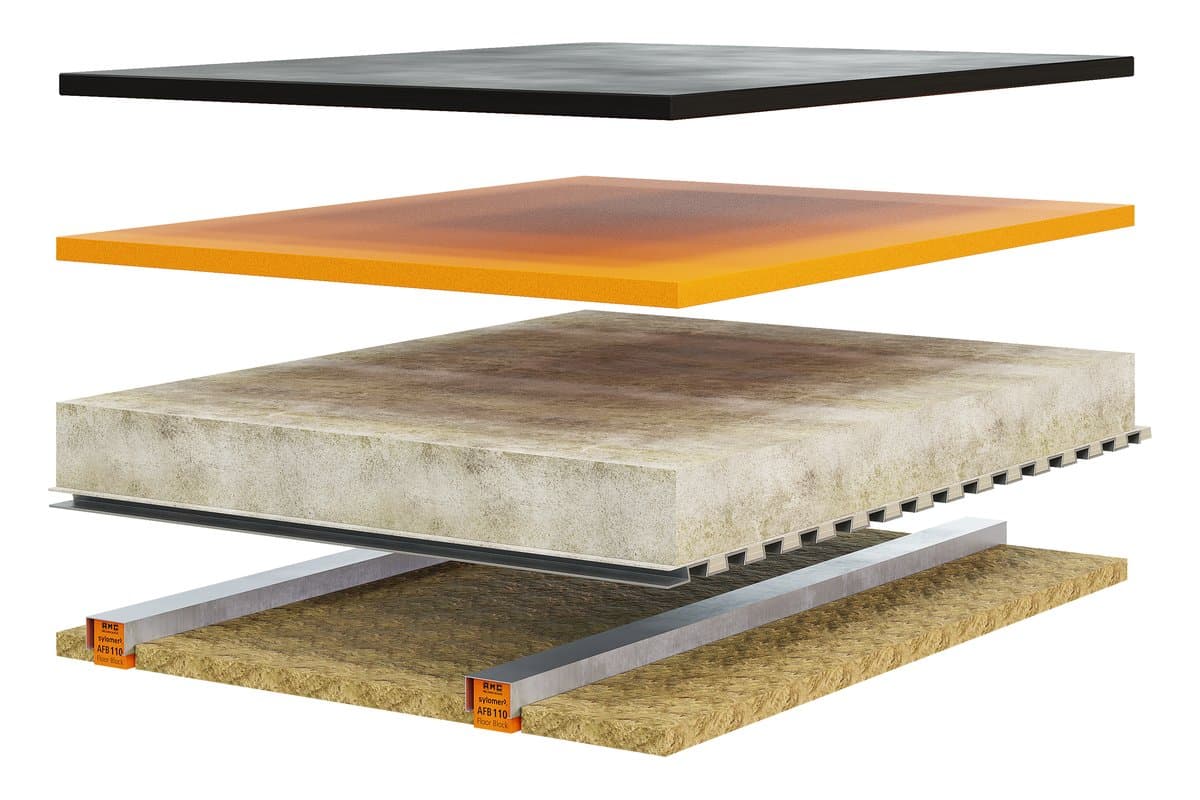

G-Fit Impact Extreme
Sylomer® floor blocks in combination with ShockAbsorb in different thicknesses from 0 to 75 mm, to adapt the system to the impact level of each gym area.
LAFmax reduction compared to concrete slab with sports flooring only (38 kg weight dropped from 1 m):
G-Fit Impact Extreme 1 (without ShockAbsorb): -41.4 dB
G-Fit Impact Extreme 2 (12.5 mm): -41.8 dB
G-Fit Impact Extreme 3 (25 mm): -41.7 dB
G-Fit Impact Extreme 4 (50 mm): -44.6 dB
G-Fit Impact Extreme 5 (75 mm): -47 dB

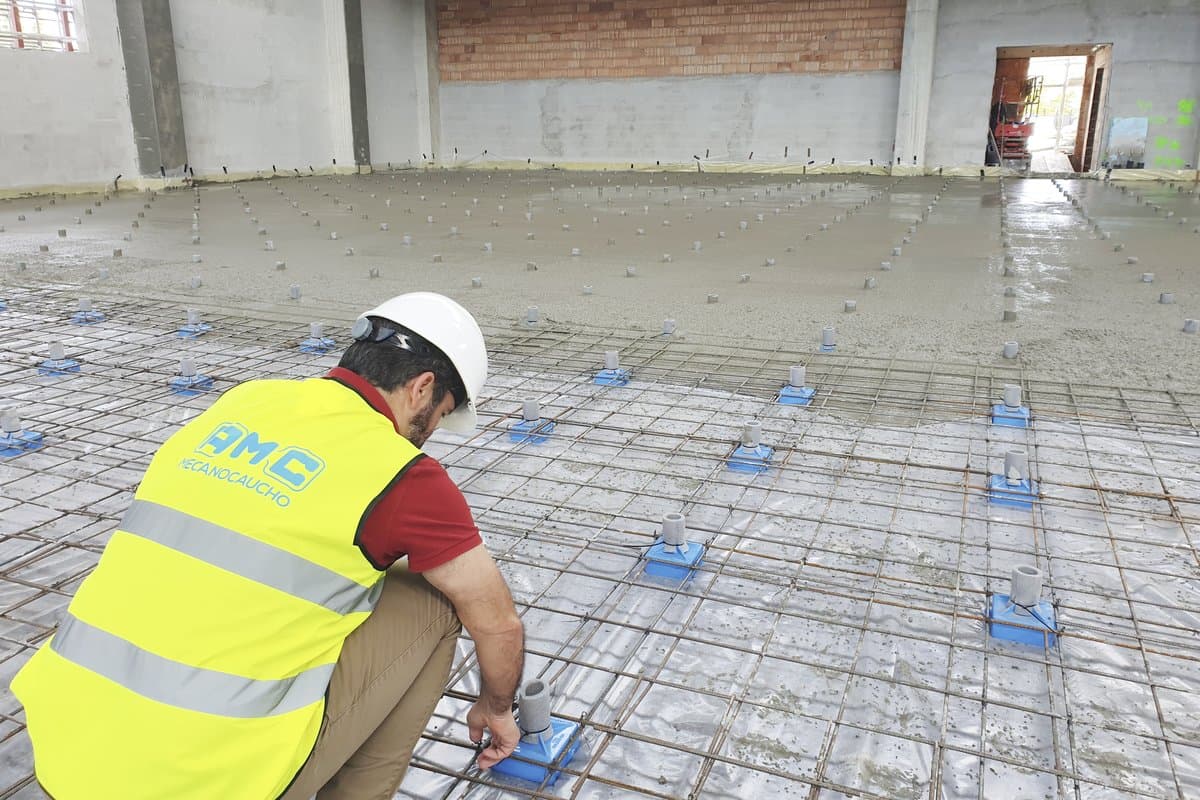

INSTALLATION OF FZH2M+SYLOMER® SPRING MOUNTS FOR FLOATING SLABS
Floating slabs for a cinema and gymnasium in heritage building using FZH2M+Sylomer® mounts.
