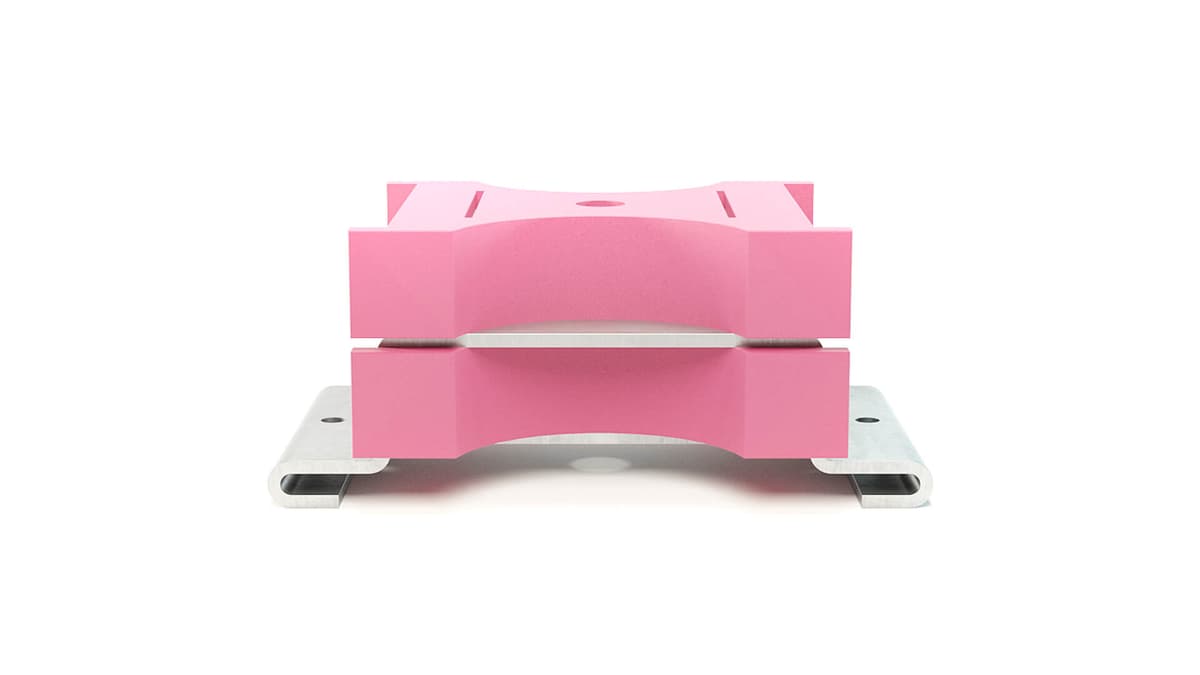

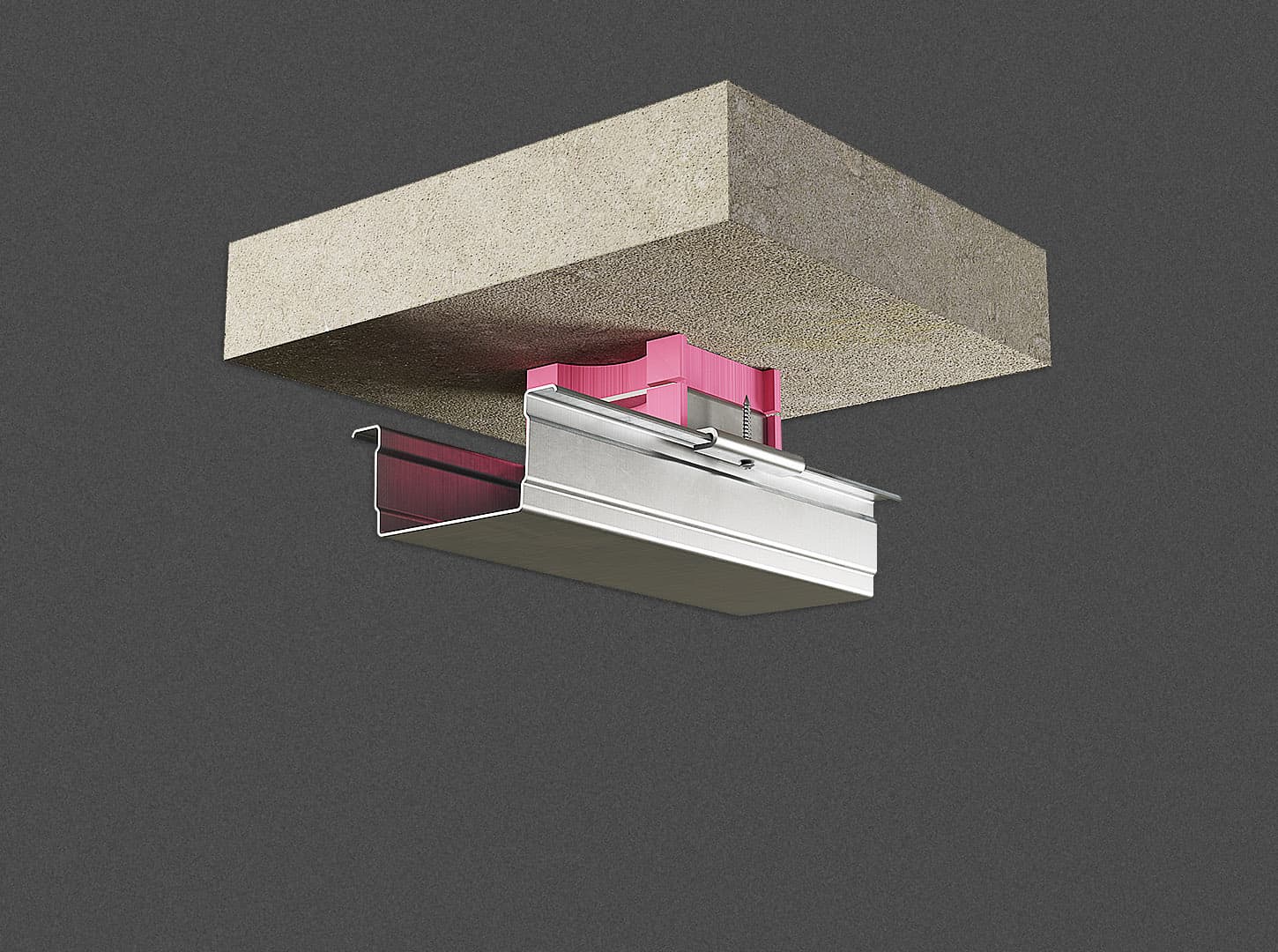

Akustik + Sylomer® Channel Clip

Omega profile support with pressure and screw fixation. Superior insulation with double Sylomer®. Ideal for ceilings and linings.

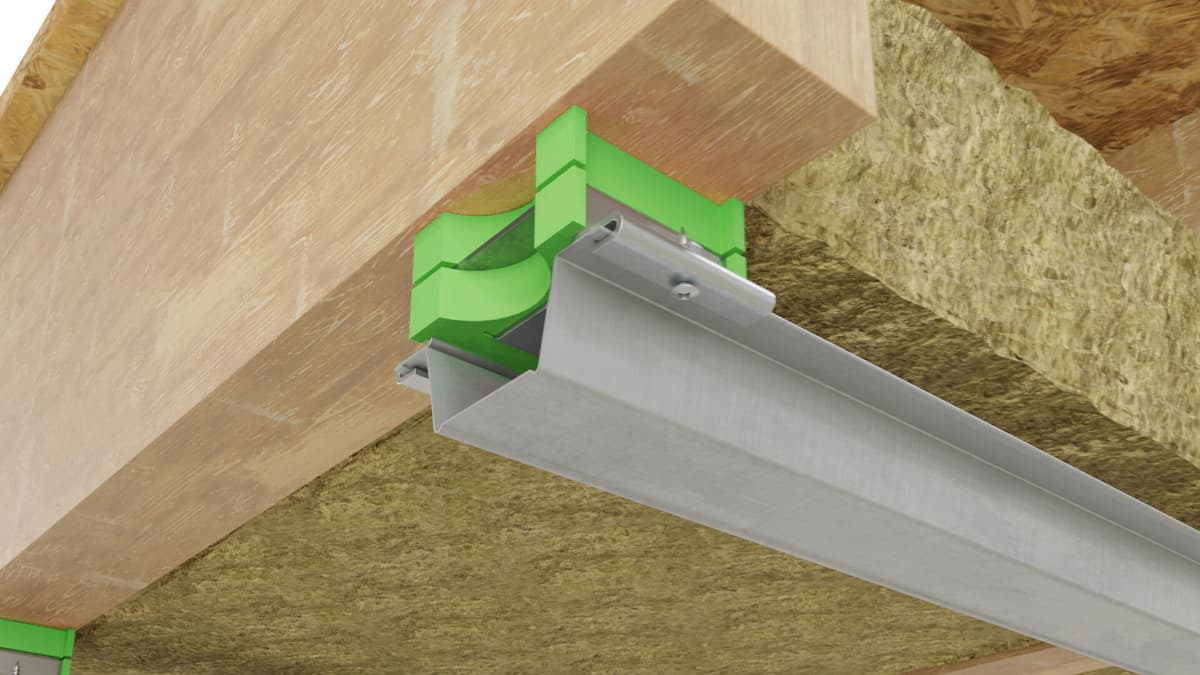

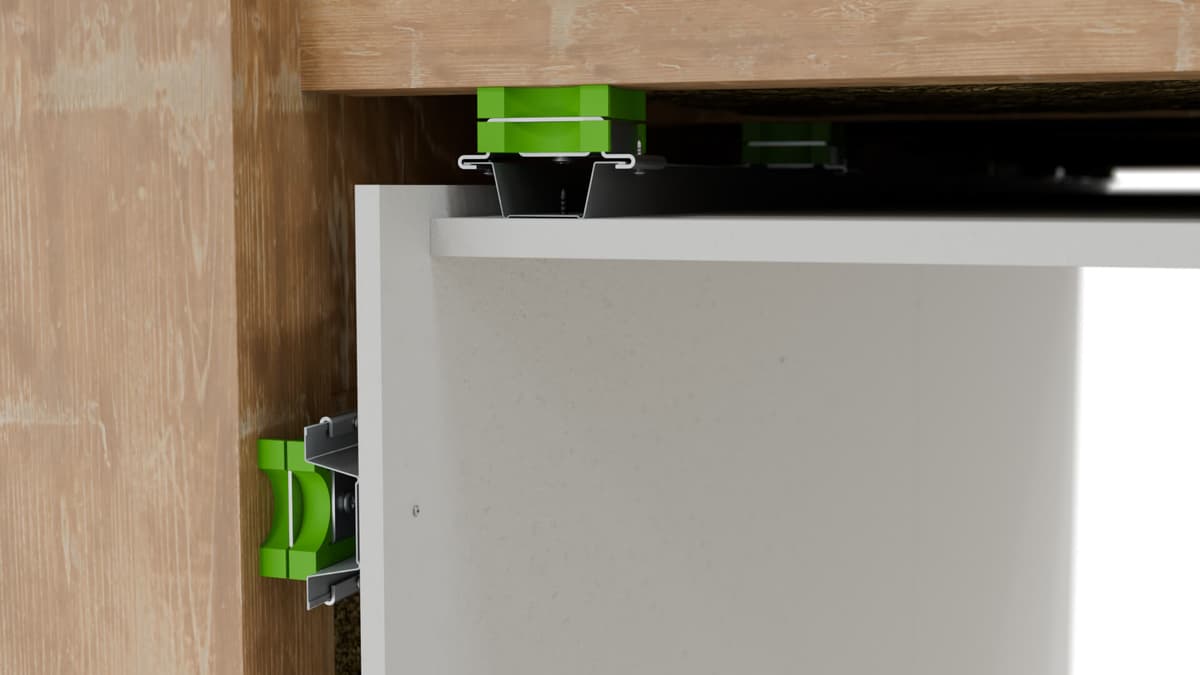

The Akustik + Sylomer® Channel Clip has been specifically designed to directly interface with the standard ‘top hat’ metal furring channels which are widely available in the UK.

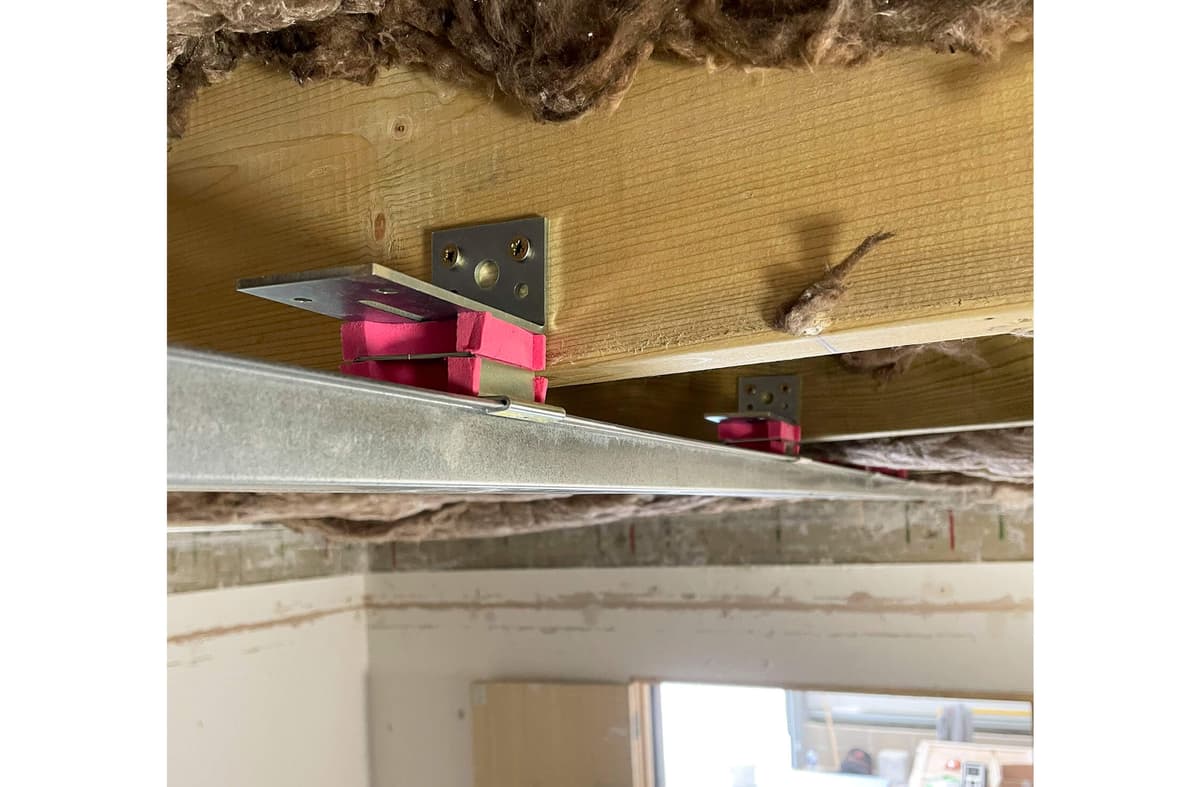

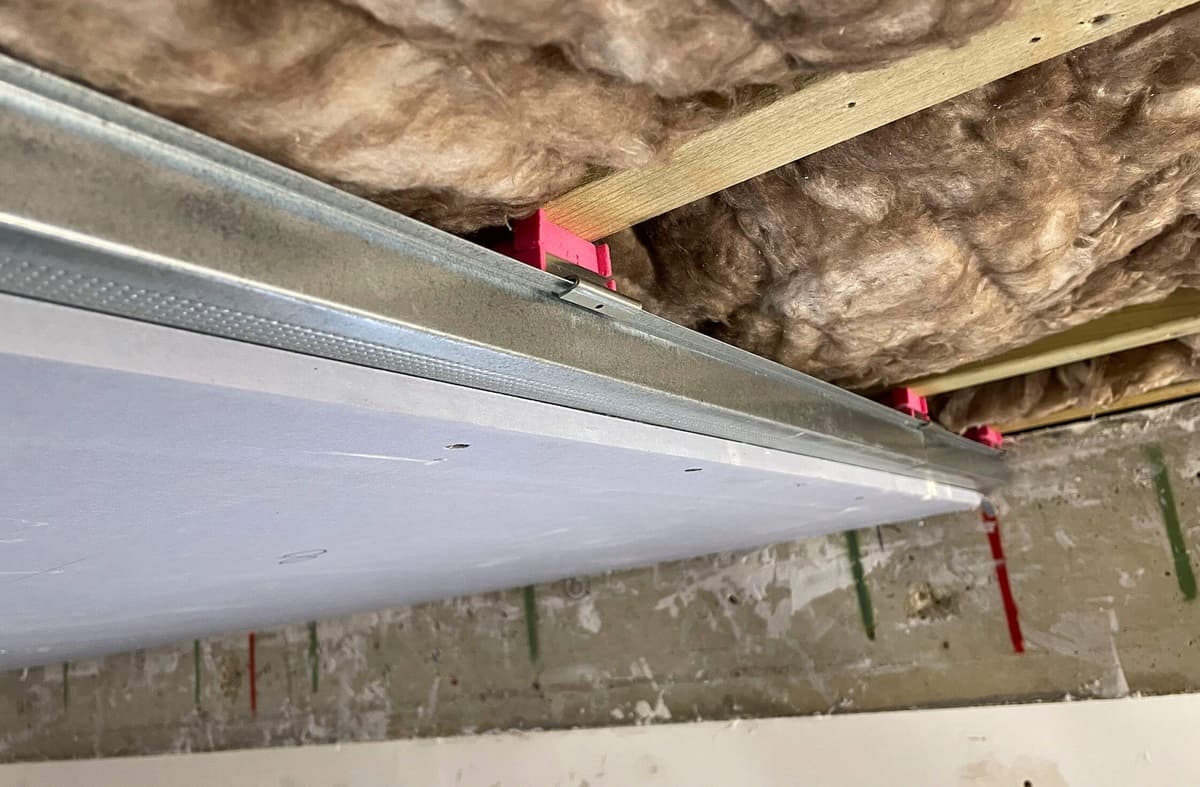

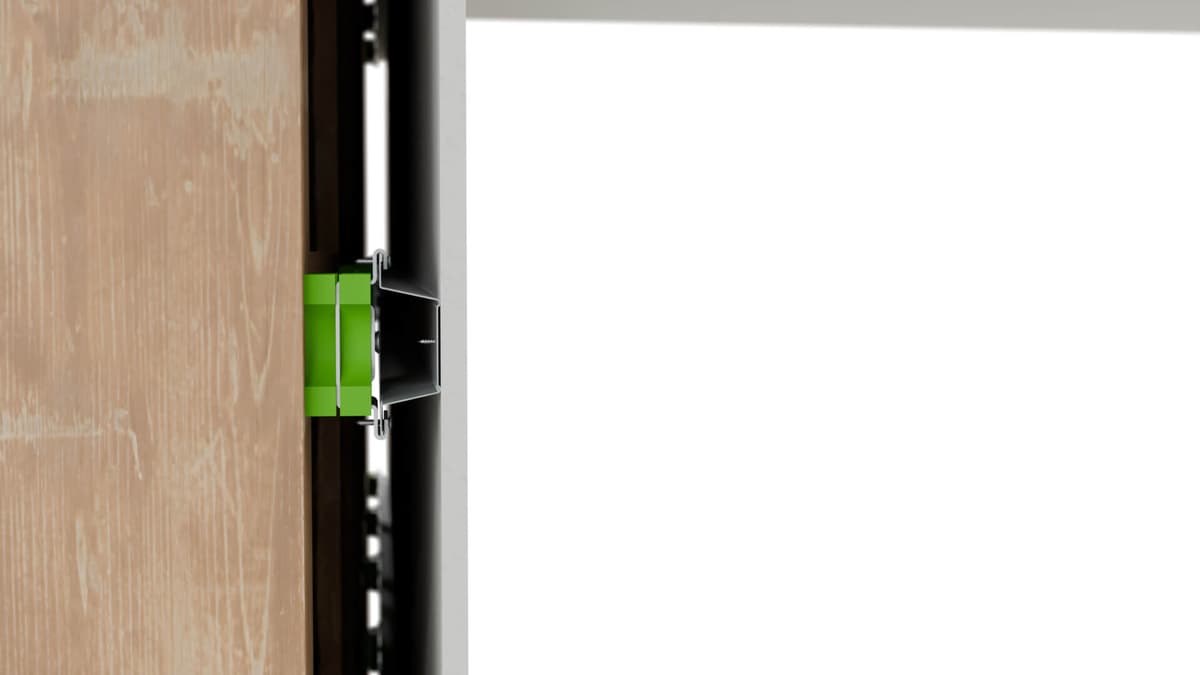

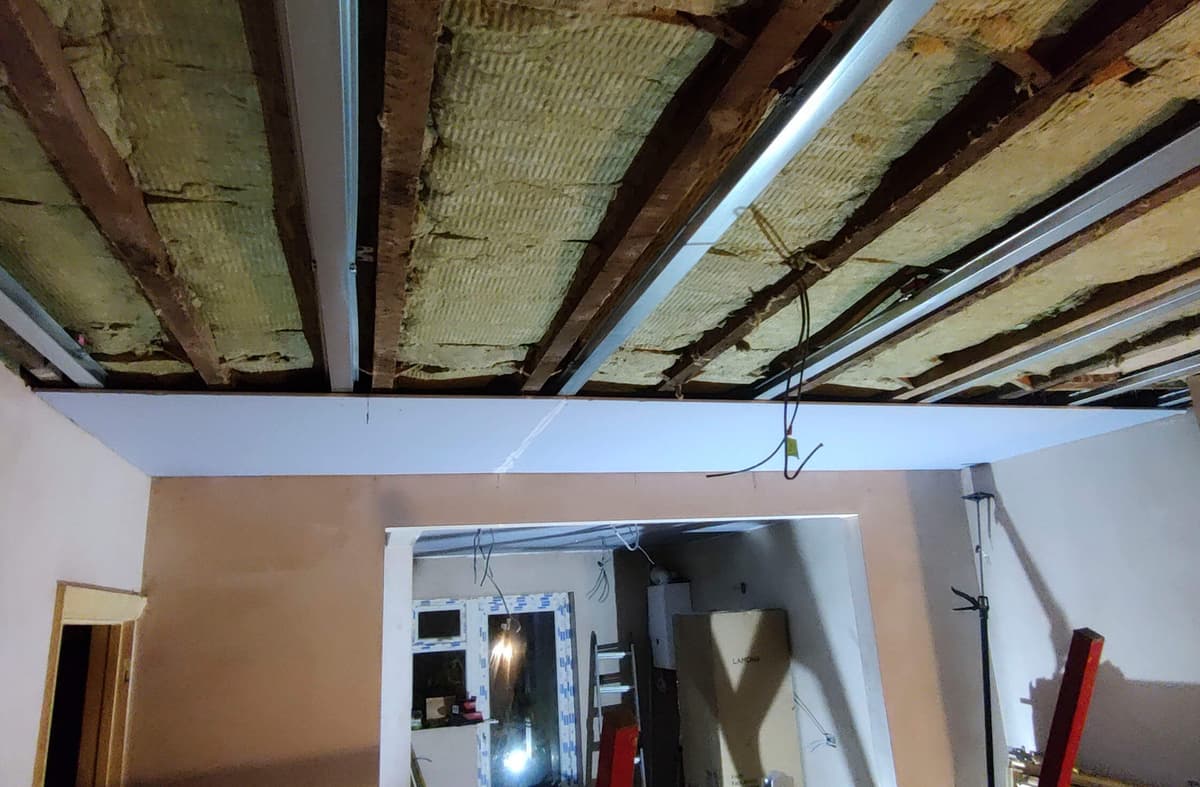

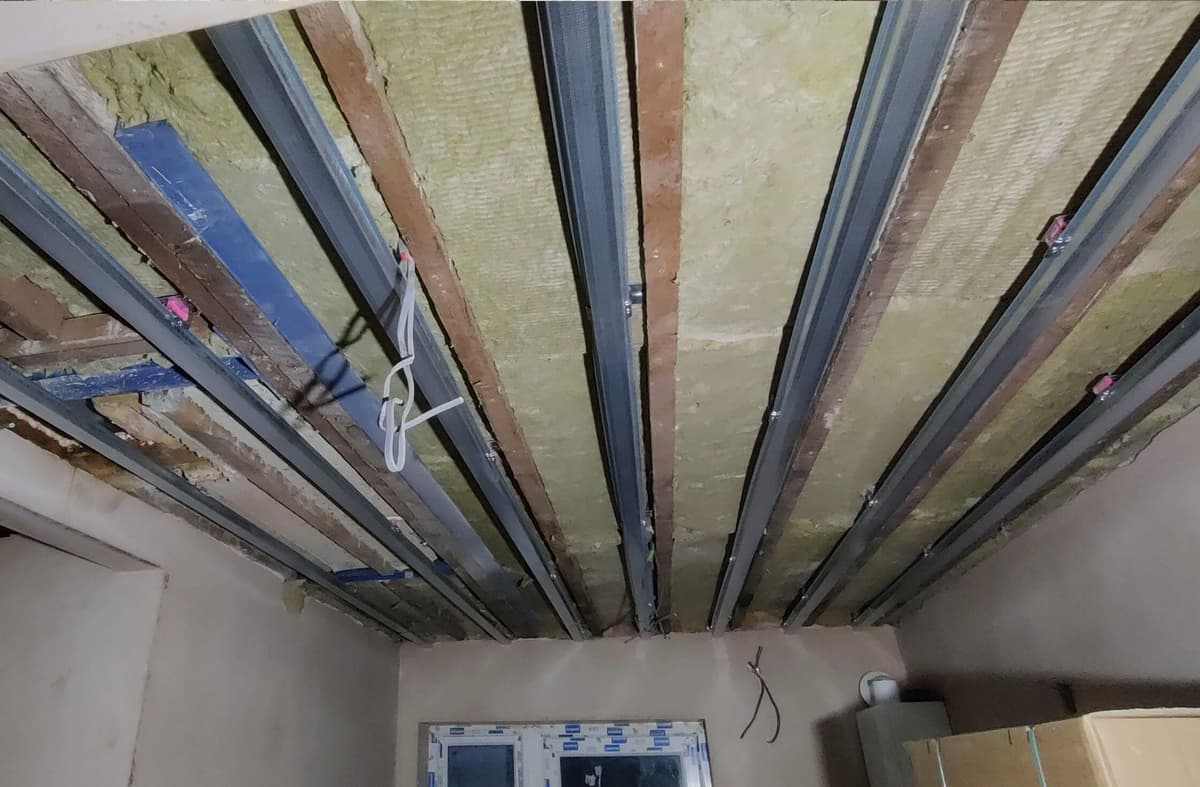

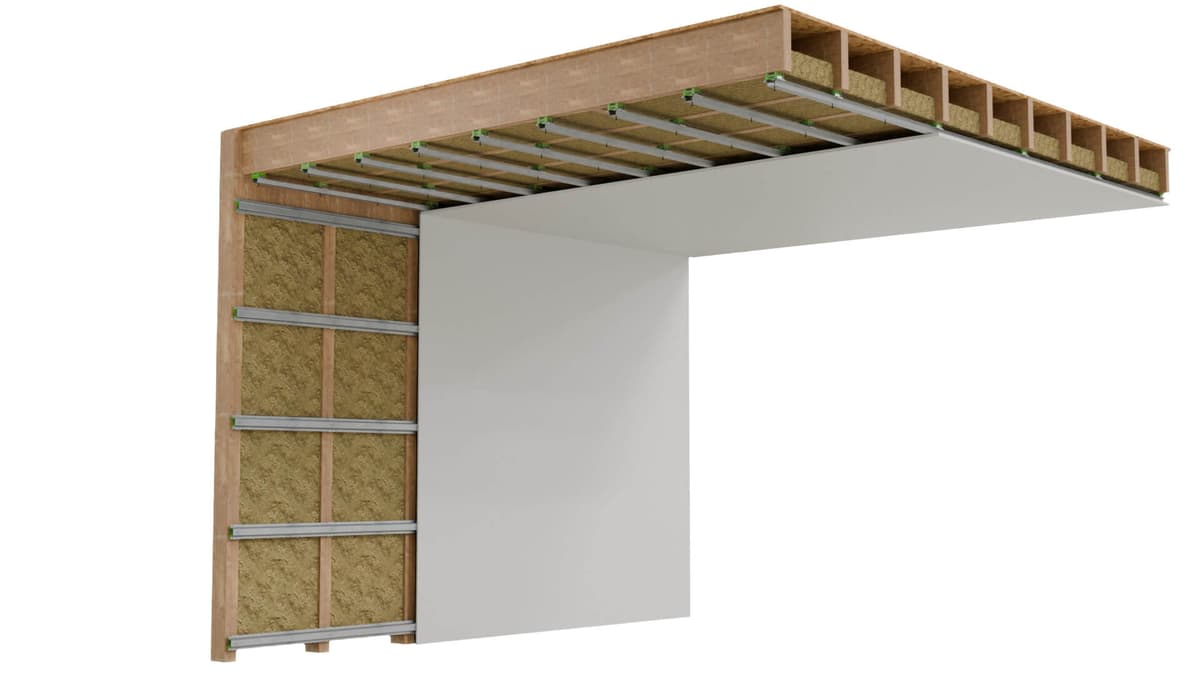

The low profile design provides space saving for both acoustic walls and suspended ceiling installations, fixing in place is quick and easy thanks to a single central fastener. The ‘top hat’ channel is simply pressed in to place and secured via 2x screws for extra security.

Noise and vibration is decoupled by the use of Sylomer®, a proven material that provides exceptional acoustic results and unrivalled long term durability. The metal components provide an overload-proof and fail safe design, factors which are particularly important where resistance to fire or shock is necessary.

Akustik + Sylomer® Channel Clip
TypeCodeMax. Load(lbs)Weight(lbs)BIMCEUKCA
Akustik + Sylomer® Channel Clip 1523271330.18
TypeCodeMax. Load(lbs)Weight(lbs)BIM
Akustik + Sylomer® Channel Clip 3023319660.19
Elastic properties
Advantages
01
Easy installation
This mount requires no major modifications to the structure for installation.
02
Incorporates Sylomer® elastomer, highly effective for isolating both high and low frequencies
Sylomer® provides high isolation across a wide frequency range and is particularly effective at high frequencies, effectively eliminating the transmission of structure-borne noise.
03

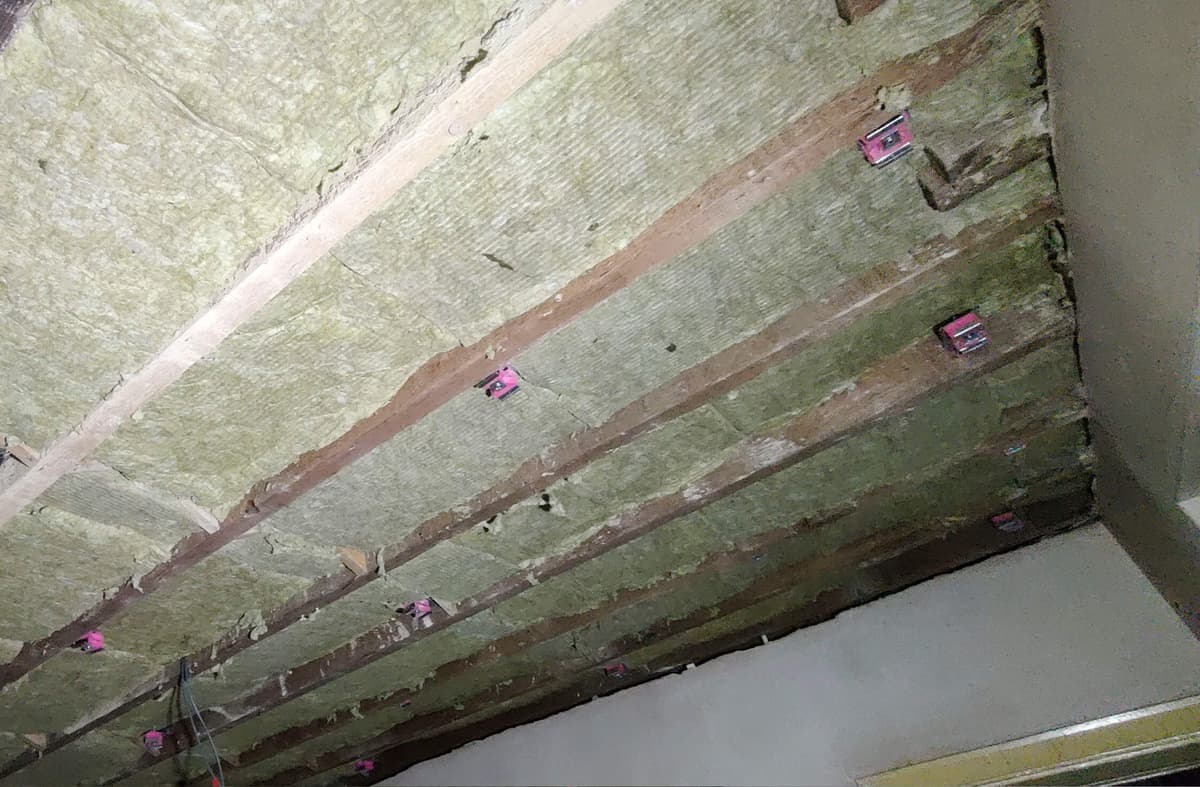

Secure ceiling anchorage
With more than one attachment point to the overhead slab, it is particularly reliable for anchors with low load-bearing capacity.
Downloads
Technical Data Sheet
PDF
Download
UKCA
PDF
Download
Submittal Specifications
DOCX
Download
Submittal Specifications
DOCX
Download
Images
Videos
Video thumbnail
Acoustic results

Access all our acoustic results

Acoustic supports

We can help you

We have a team of engineers ready to assist you with your specific needs.
