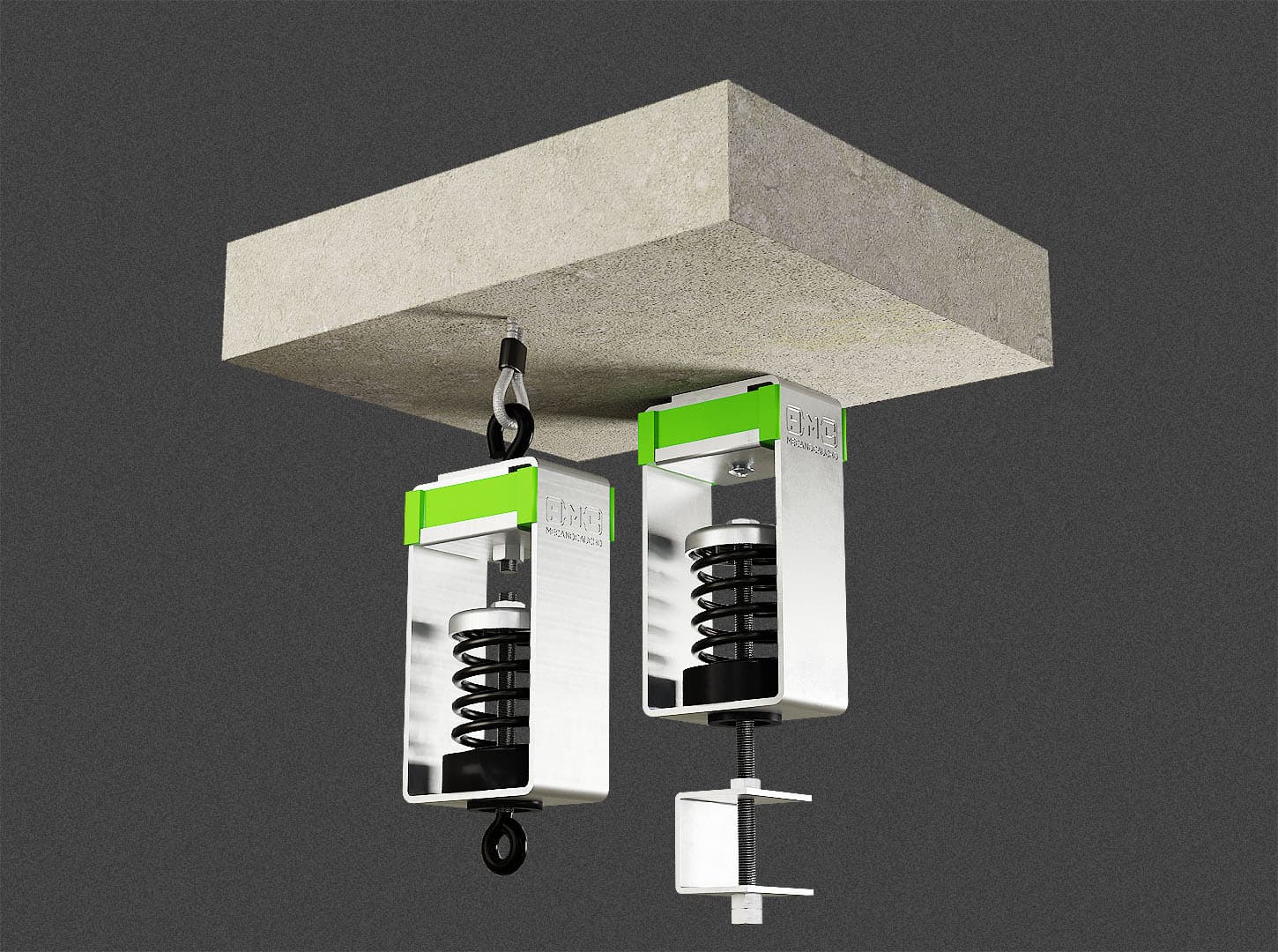

The SRS + SYLOMER® acoustic hangers are designed for the vibration isolation of suspended ceilings and mechanical equipment operating at low frequencies.
The system combines the low stiffness of a steel spring with the damping properties of Sylomer® microcellular polyurethane, providing effective vibration isolation over a broad frequency range.
This combination improves isolation performance compared with conventional rubber or cork hangers and is particularly suitable for applications where low-frequency vibration isolation is required.
| Type | Max. Load(lbs) | Spring color | Code |
|---|---|---|---|
| SRS 50 + SYLOMER® Type D | 110 | Blue | 23488 |
| Type | Max. Load(lbs) | Spring color | Code |
|---|---|---|---|
| SRS 75 + SYLOMER® Type D | 165 | Grey | 23489 |
| Type | Max. Load(lbs) | Spring color | Code |
|---|---|---|---|
| SRS 100 + SYLOMER® Type D | 220 | Beige | 23490 |
These antivibration mounts are manufactured in 6 different steel spring models to adapt optimal for each application.
Their rugged metal parts withstand can tensile stresses. They are supplied with an anticorrosive treatment that can resist tensile stresses up to 1000Kg withstand the toughest environments.
NEVER METAL TO METAL CONTACT
The hanger has a clearance that allows the threaded rod to swing within a 35° angle envelope to absorb irregularities in the ceiling.
