The AMC-MECANOCAUCHO® S-60 Trapezoidal Vibration Isolator Kit is a set of 4 vibration isolators designed to provide simple, reliable, and cost-effective vibration isolation for machinery and equipment subject to higher loads.

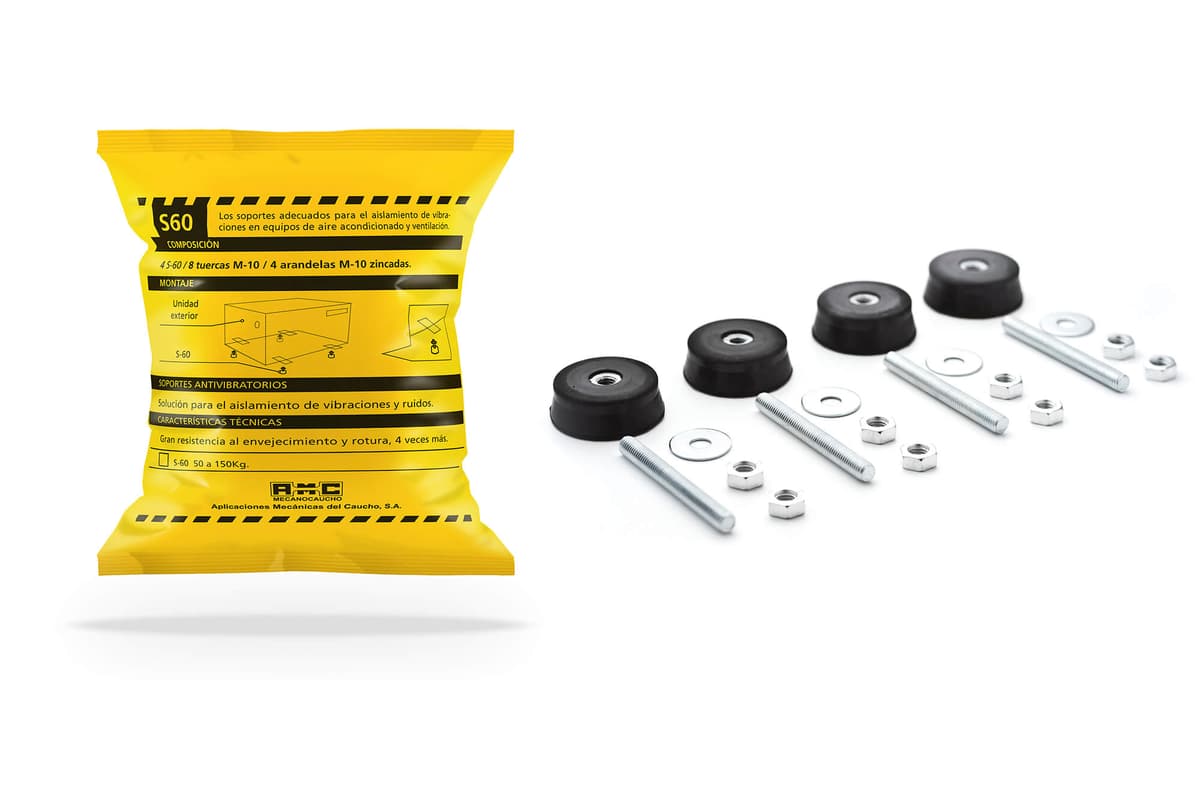

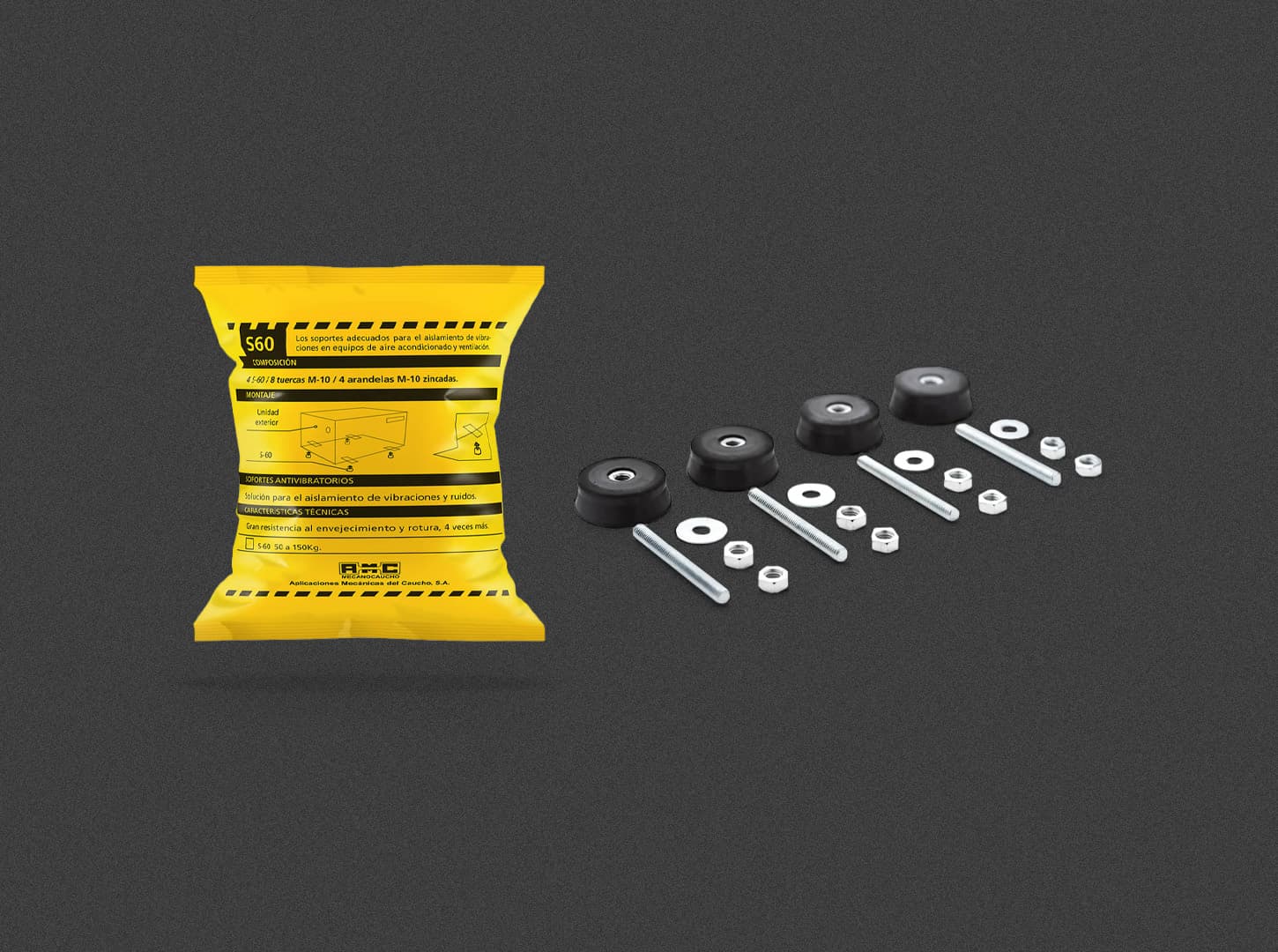

The kit includes 4 S-60 trapezoidal vibration isolators with their mounting studs and nuts, allowing simple and quick installation of the equipment on its supporting structure.
The elastomer elements provide an elastic connection between the machine and the structure, helping to reduce the transmission of vibration and structure-borne noise generated during operation.
Thanks to their robust design and higher load capacity, S-60 vibration isolators are particularly suitable for motors, fans, pumps, auxiliary equipment, and industrial machinery requiring simple and reliable vibration isolation.
| Type | Code | Max. Load (lbs) | Weight(lbs) | Min.Load (lbs) |
|---|---|---|---|---|
| S-60 | 649043 | 331 | 1 | 110 |
The AMC Mecanocaucho® S-60 supports have a softer stiffness in the direction which is perpendicular to its axis (shear). The AMC Mecanocaucho® S-60 supports allow for relative movements between two secured elements, movement can be accommodated to provide elasticity in the case of heat expansion, chassis deformations, etc.
