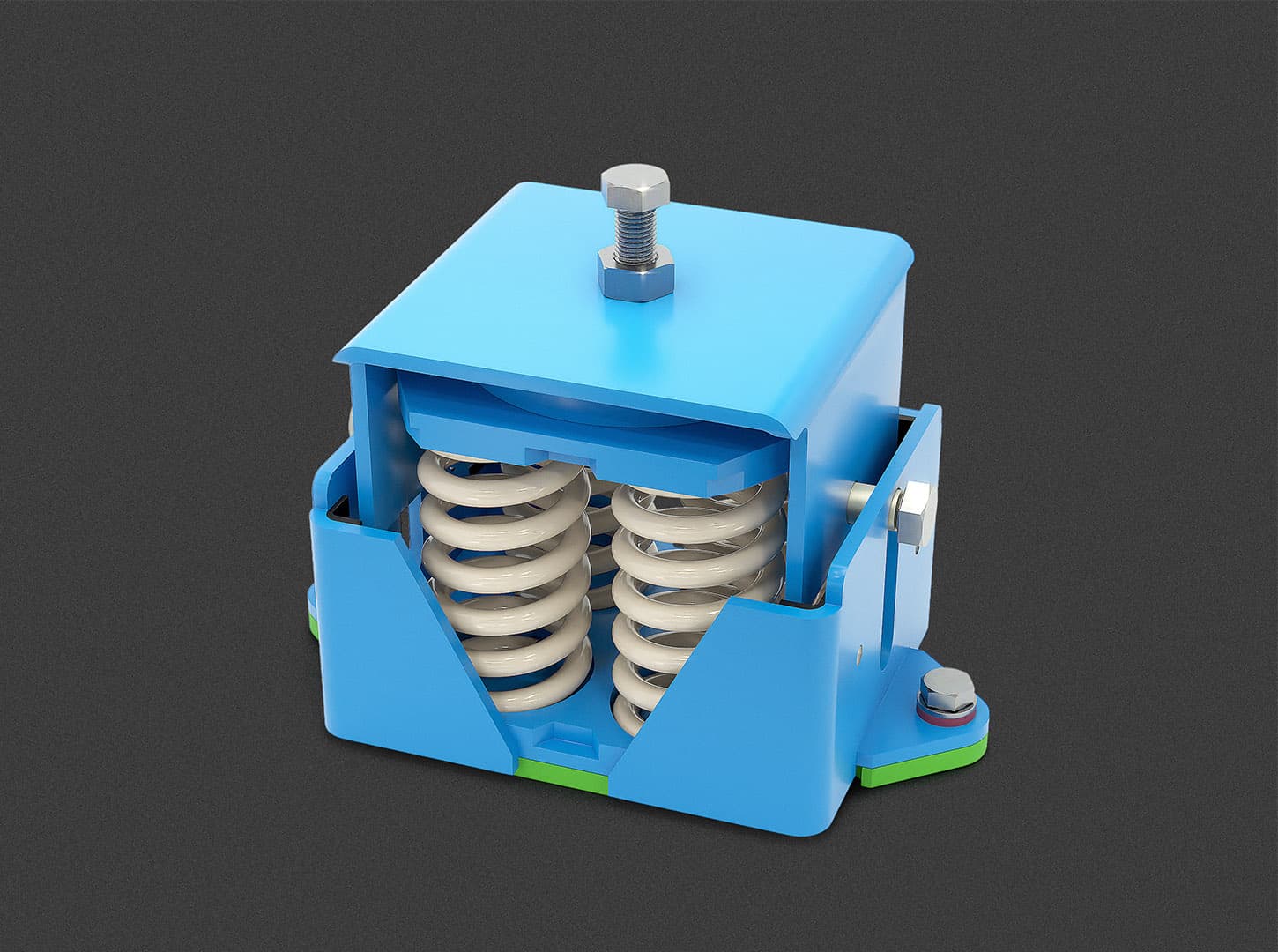

AMC-MECANOCAUCHO® Anti-Seismic Preloaded 4V-SX Spring Isolators are designed for applications requiring high-performance low-frequency vibration isolation, combined with mechanical protection under seismic conditions.
With a static deflection of up to 76 mm (3 inches), the springs provide a natural frequency of approximately 2 Hz, ensuring a very high level of low-frequency vibration isolation.
The adjustable preload system facilitates installation by maintaining the spring isolator at a predetermined height before the equipment load is fully applied. This design helps prevent sudden settlement of the equipment during installation and facilitates system leveling.
A Sylomer® layer helps reduce the transmission of medium- and high-frequency vibrations that may propagate through the steel springs. The spring + Sylomer® combination therefore provides effective vibration isolation over a very wide frequency range.
The integrated seismic restraint system limits excessive equipment movement under exceptional loads, while allowing the movement required for effective vibration isolation under normal operating conditions.
This range of supports consists of:
