New AMC-MECANOCAUCHO® antivibration mounts for transformers. Do you need an easy to install mount for transformers? Check the new transformer antivibration mountings!

Transformer, anti vibration mount

The AMC-MECANOCAUCHO® antivibration mounts for transformers are ideal for applications where transformers must have a correct noise and vibration isolation.

Its specific design allows a very easy installation on transformers equipped with castors. As shown on the images below:

Side view

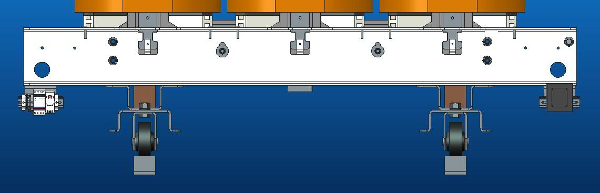

Front view

3D View

Technical characteristics

Two different size of antivibration mounts allow to isolate transformers from 400Kg to 12000Kg of load. The natural frequency of these antivibration mountings are low and provide a level of isolation above 95% to disturbing frequencies of 50Hz. The AMC-MECANOCAUCHO® transformer antivibration mounts are double bonded and incorporate first grade elastomeric compound.

Installation instructions and selection

AMC-MECANOCAUCHO® applications engineers can help you to select the correct mount for the application. Click on this link for that.
