SPRING HANGER VT SV: THE NEW ANTI-VIBRATION SOLUTION FOR SUSPENDED EQUIPMENT

New Spring Hanger VT-SV

Easy installation on existing metal structures, with high deflections and very low natural frequencies.

AMC-MECANOCAUCHO® has expanded its range of VT-type anti-vibration hangers by introducing the new VT models without metal frame (VT SV).

The VT SV spring anti-vibration hangers from AMC MECANOCAUCHO® are specifically designed for vibration isolation of suspended machinery in different environments, facilitating their installation on existing metal structures.

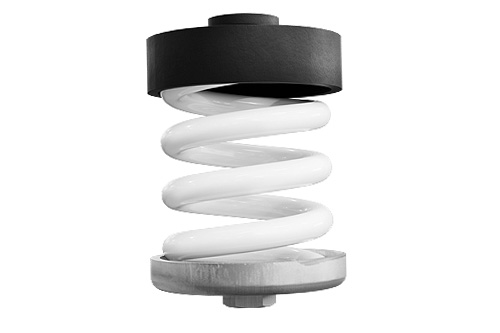

These mounts are manufactured using high mechanical quality springs, guided by a rubber washer, which prevents the generation of acoustic bridges in case of misalignment of the suspension studs.

Working range and performance

VT SV hangers cover a wide load range, from 0 kg to 750 kg, and are designed to operate with high deflections (up to 16–17 mm), allowing the achievement of very low natural frequencies.

Thanks to these characteristics, high levels of vibration isolation can be achieved, with natural frequencies even below 5 Hz.

Elastic properties of Spring Hangers VT SV

Drawings and dimensions

VT SV 8-150R M8 / VT SV 8-150R M10

VT SV 150-350 M12

VT SV 500-750 M14

Applications

This type of mount is suitable for a wide range of applications, including:

• HVAC equipment
• Silencers
• Air ducts
• Compressors
• Other types of suspended machinery

Easy installation on existing metal structures

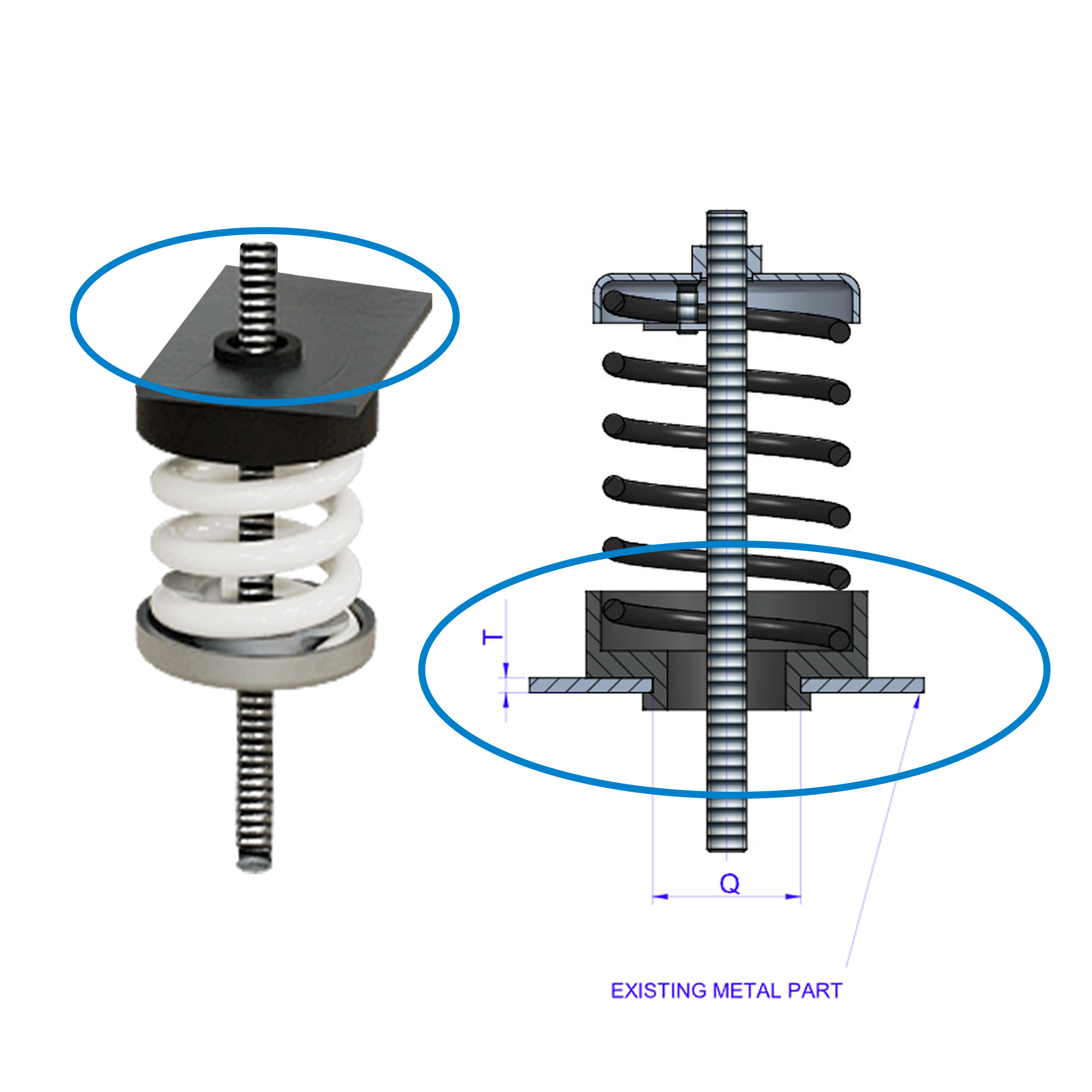

The main advantage of the VT SV is its ease of installation on existing metal structures, requiring only consideration of:

• The plate thickness (T)
• The hole diameter for the elastomeric part (Q)

This allows for fast and efficient integration without the need for complex modifications to the installation.

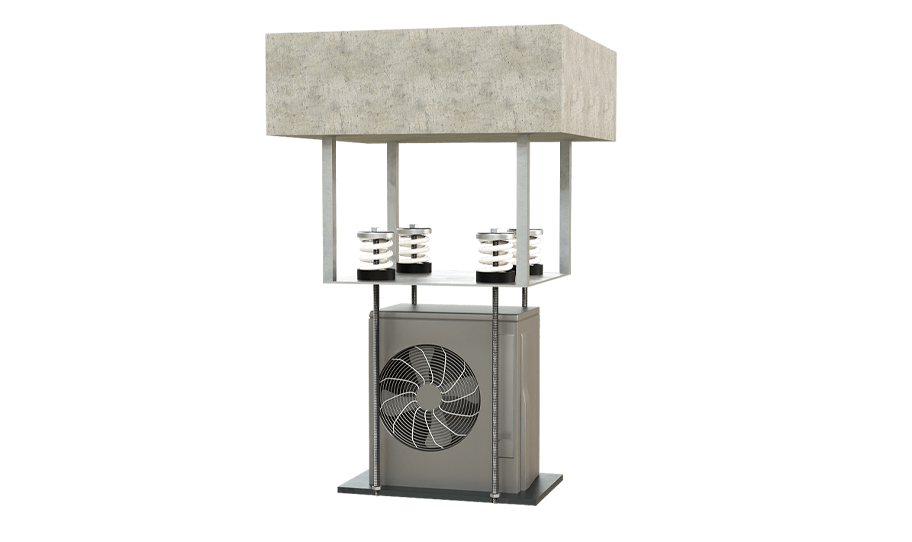

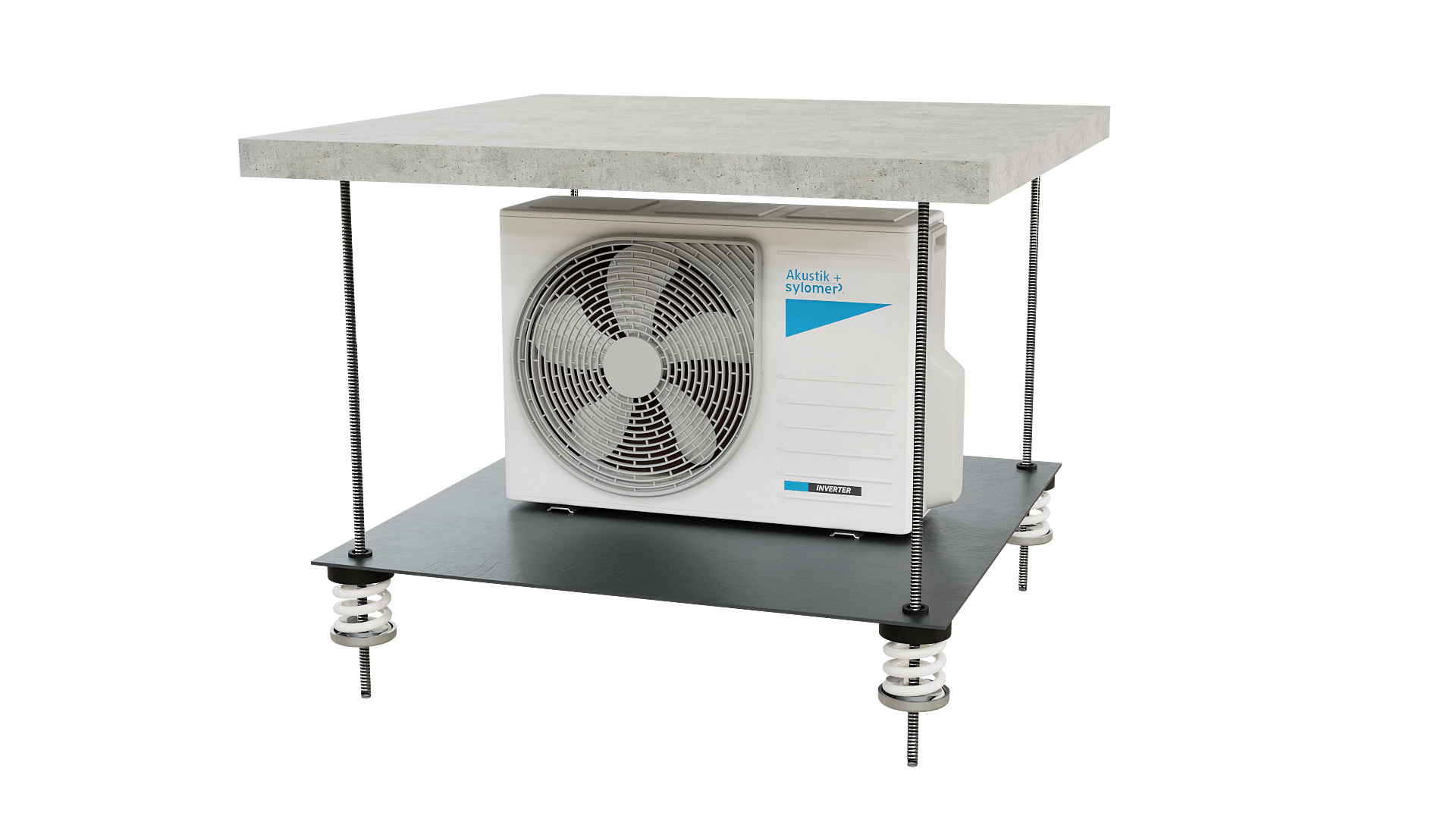

VT SV mounts allow different installation configurations, adapting to the specific requirements of each project:

1. Option

2. Option


For more technical information or assistance in selecting the most suitable VT SV springs for your project, please do not hesitate to contact the AMC-MECANOCAUCHO® applications engineering team.
