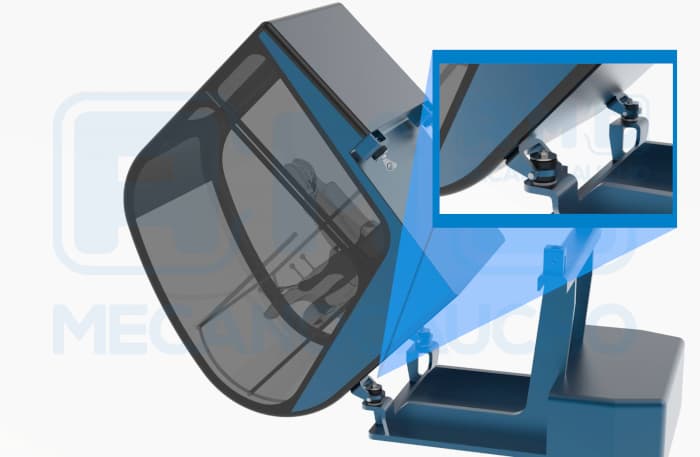

HOW TO ACHIEVE TILTING CABS WITH CB ANTI VIBRATION MOUNTS.

Just by adding an additional bracket between the cabin and the frame the CB anti vibration mounts can allow tilting cab installations

AMC-MECANOCAUCHO Applications engineers can help to design the bracket according to the loading conditions that could come from a ROPS/FOPS test.

AMC MECANOCAUCHO applications engineers can help to specify the allowable tilting degree and the safety factor when the 2 front mounts receive the full load of the cab.

Back side mounts can be installed with a metal part that allows a safety pin to go through as shown below.

Do not hesitate to contact our application engineers team to get further instructions.
