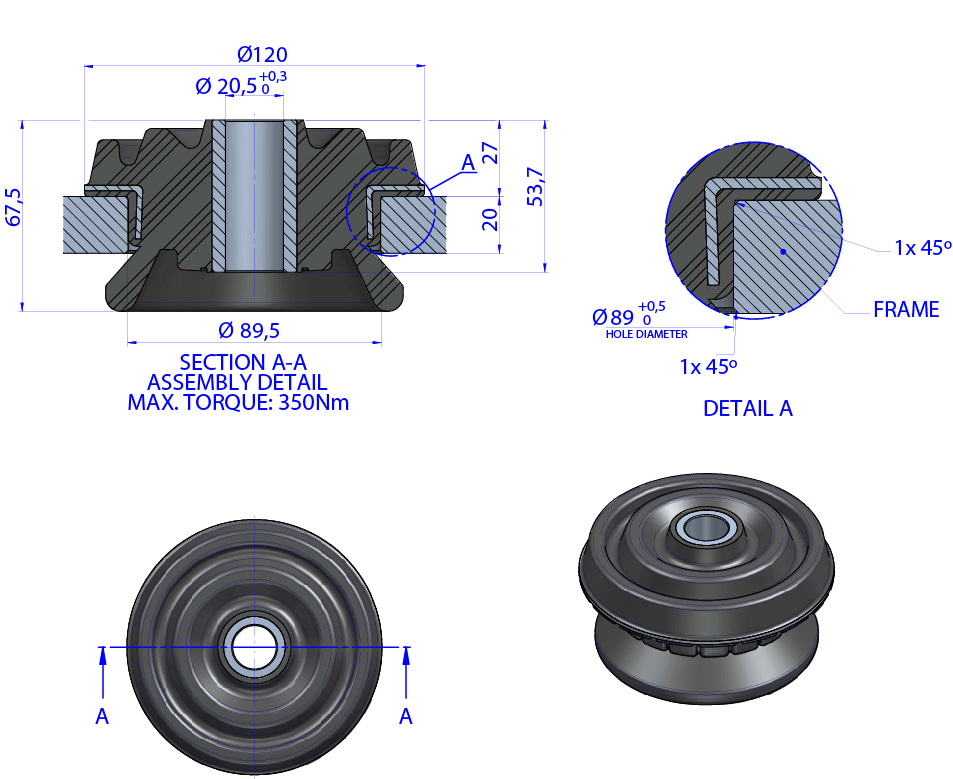

New cab mounts 120
The cab mount 120 has been designed for cabins with weights from 800Kg to 2000Kg. It incorporates a limit switch on the perimeter that acts as an elastic second stage to be able to resist high dynamic loads/shocks. The purpose of this limit switch is to limit the movements of the cab when it is subjected to specific shocks.
TECHNICAL CHARACTERISTICS.
Metallic parts are protected against corrosion to withstand aggressive environments, in terrestrial mobile or marine applications. ROHS compliant.
AMC-MECANOCAUCHO shock absorbers are manufactured in different rubber hardnesses. This allows us to search for the right element depending on the load and the frequency of disturbance.
Our technical service can offer advice on how to comply with ROPS regulations in the world of mobile machinery.

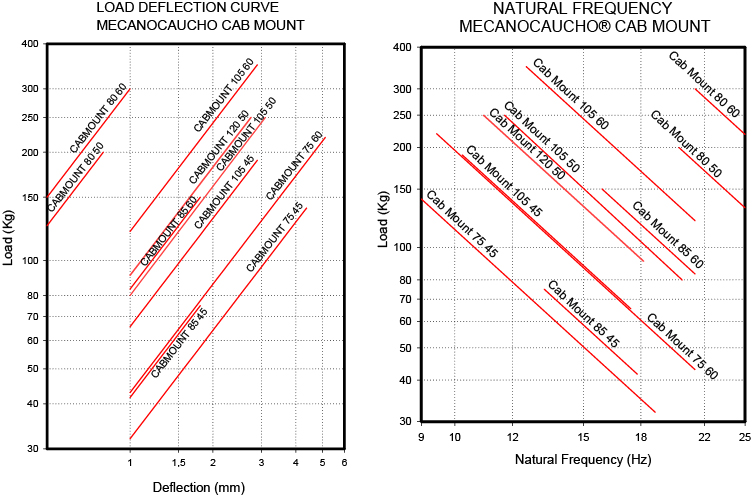

ELASTIC PROPERTIES
APPLICATIONS
Suitable for isolating vibrations and noise in cabins and other vibrating machines, such as:
- Agricultural tractors.
- Telescopic handlers, loaders, Excavators
- Maintenance vehicles.
- …
The use of washers is recommended if the support surface does not completely cover the rubber surface.
If you have any doubt about this product, do not hesitate to contact our technical department.
