Case study that demonstrates the effectiveness of structure/airborne Noise in off road vehicles.

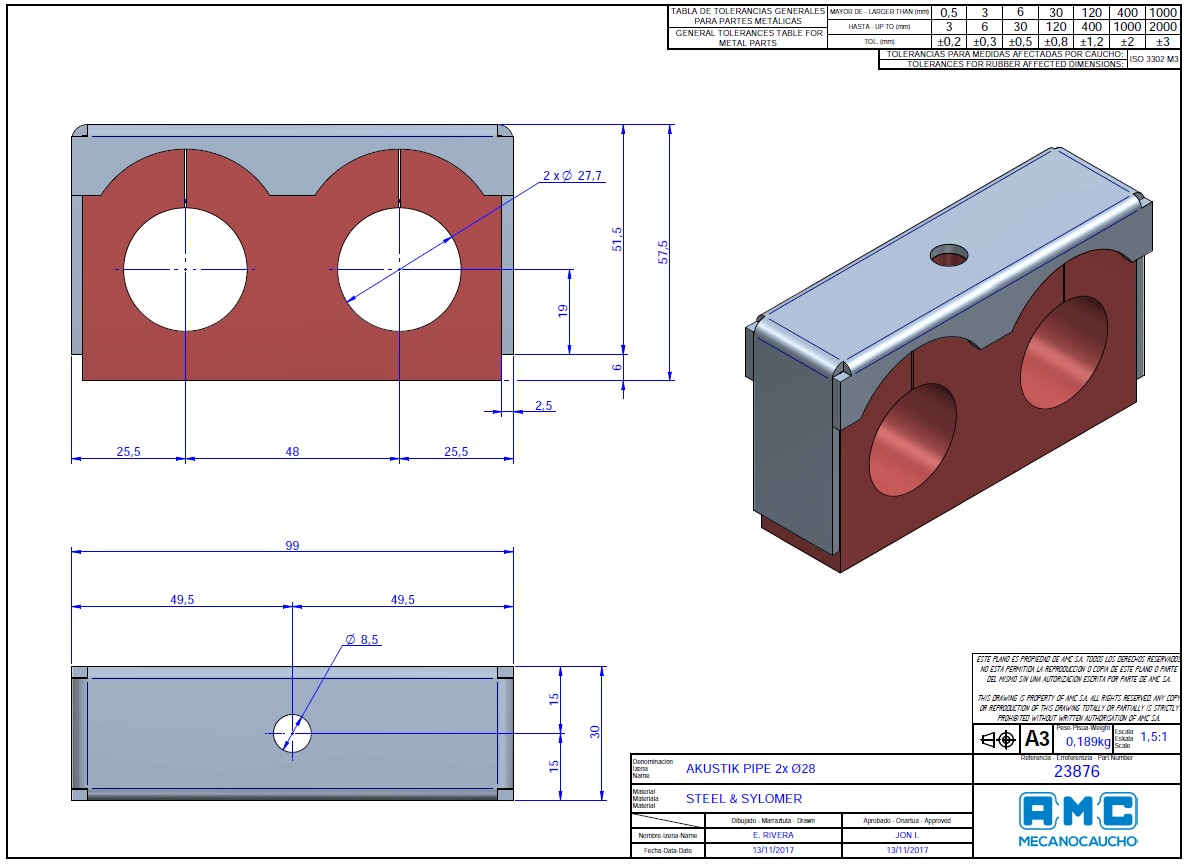

Case study: AMC-MECANOCAUCHO type AKUSTIK PIPE+Sylomer® anti vibration mounts for Hydraulic hose clamps.

10/25/2018

A recent test realized on an off road vehicle proves the performance of the AMC-MECANOCAUCHO AKUSTIK PIPE+Sylomer® elastic clamps. A reduction of 2dB(A) in airborne noise was measured in real working conditions.

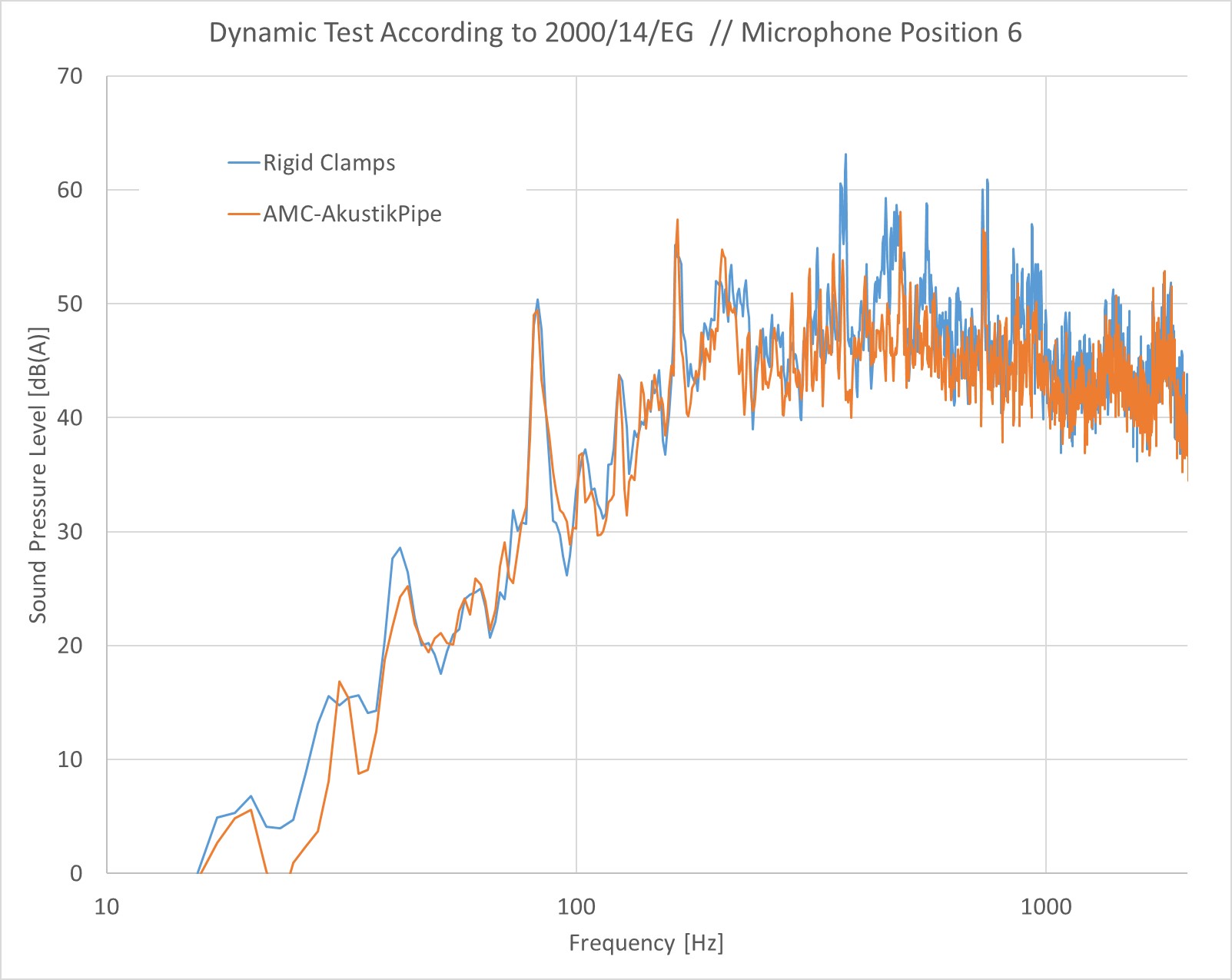

These anti vibration mounts were tested following the 2000/14/EG standard. Same vehicle was tested using rigid clamps holding the hydraulic piping system.

A reduction of airborne noise from 105,5dB(A) to 103,1 dB(A) was measured when replacing the rigid clamps with AMC-MECANOCAUCHO AKUSTIK PIPE+Sylomer® elastic clamps.

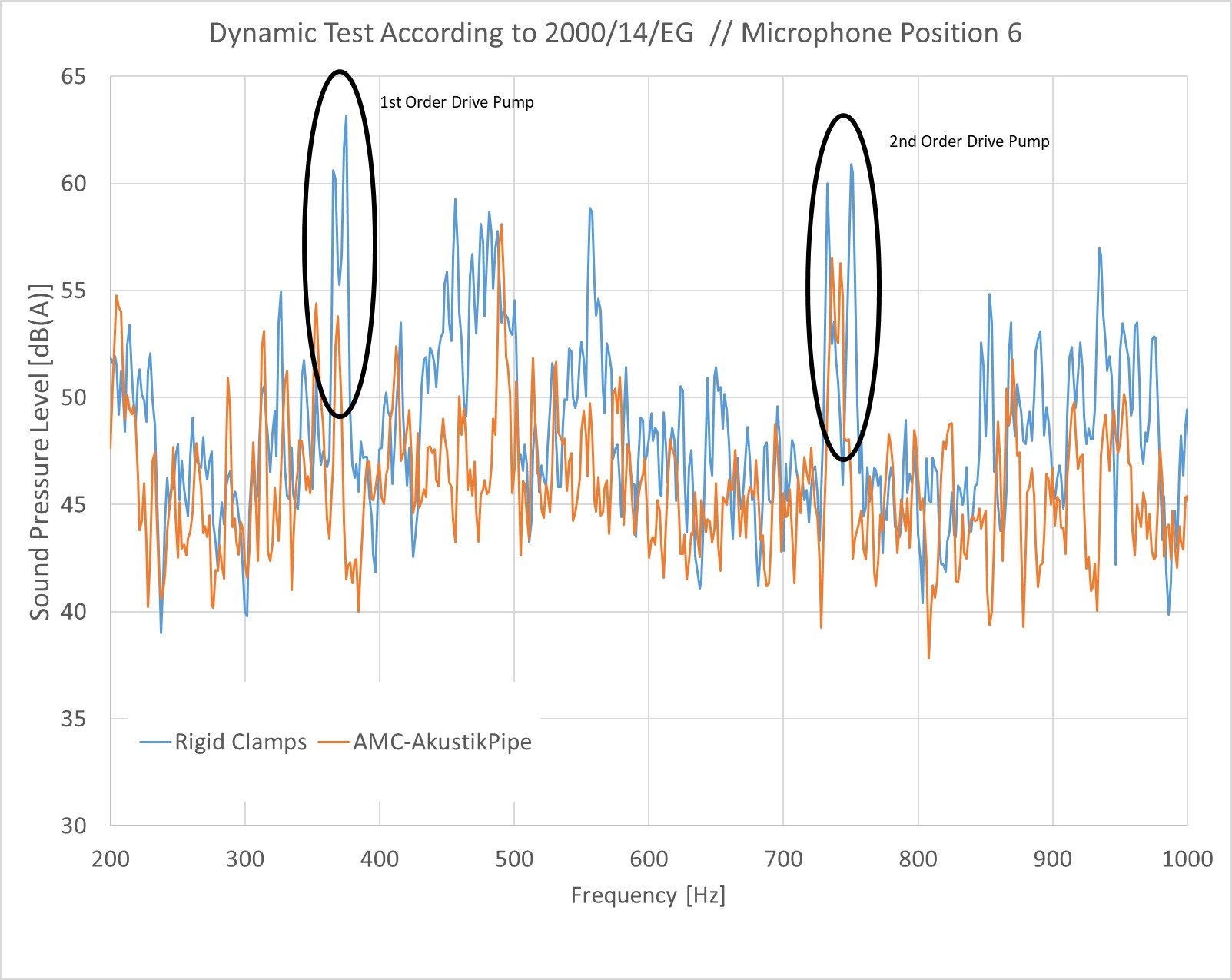

The AMC-MECANOCAUCHO AKUSTIK PIPE+Sylomer® elastic clamps reduce clearly the excitation transmitted to the vehicle by the Hydraulic drive pumps.

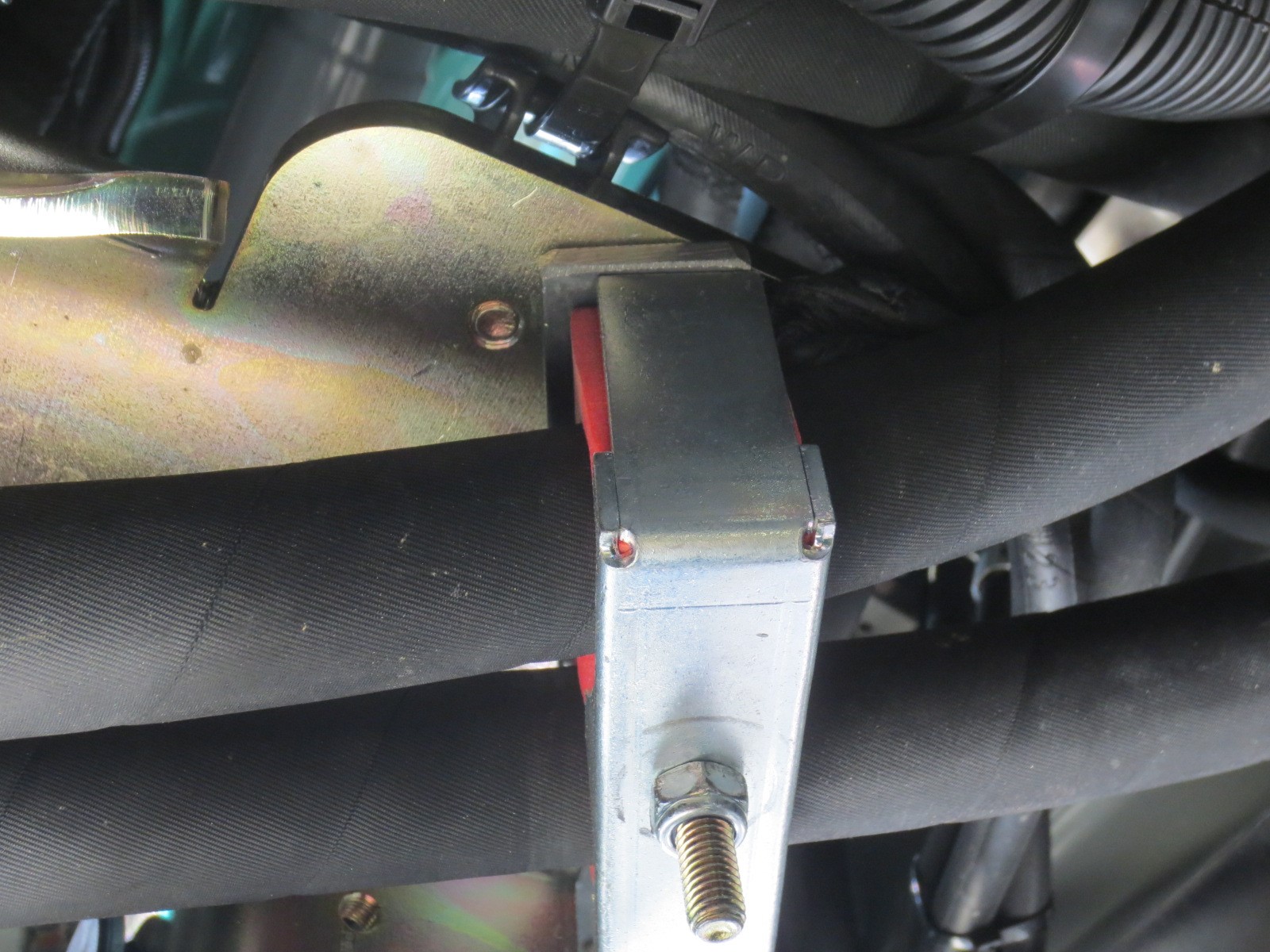

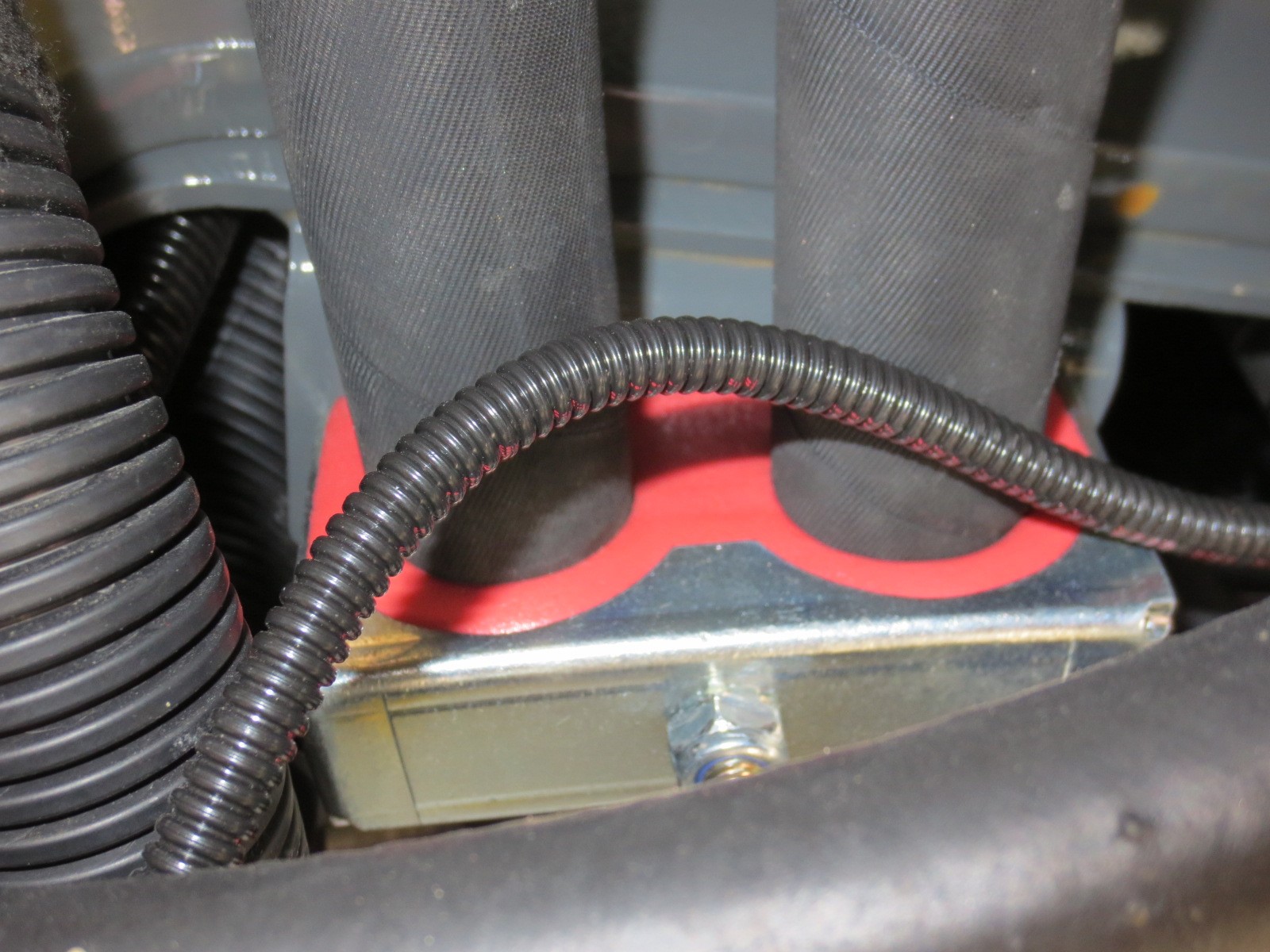

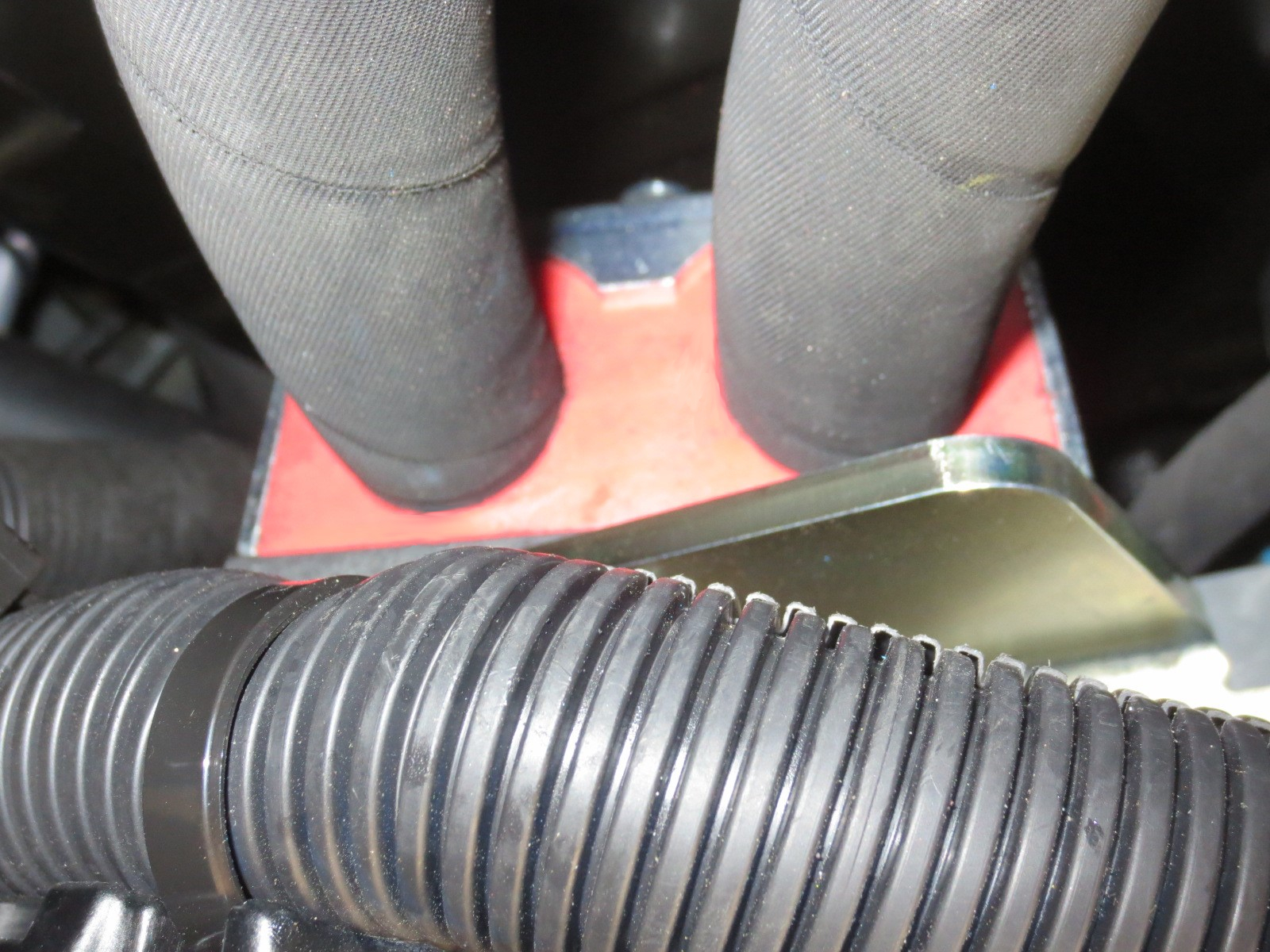

Installation pictures and a video:

More information available in our website

You might also be interested in

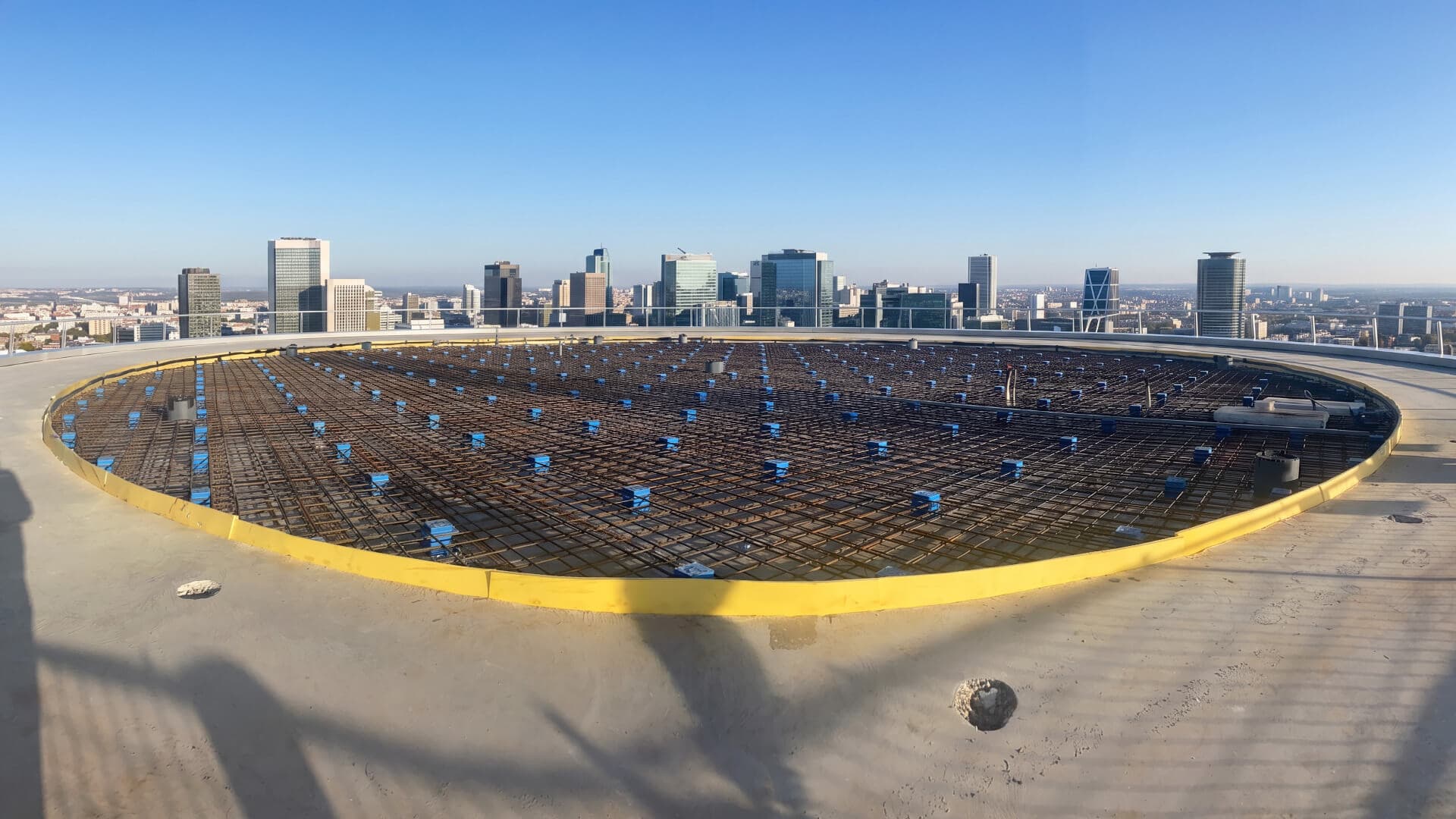

INSTALLATION OF FZH2M+SYLOMER® MOUNTS FOR THE VIBRATION ISOLATION OF HOSPITAL HELIPADS
