AMC-MECANOCAUCHO ADDS THE NEW MARINE XT ANTI VIBRATION MOUNTS TO THEIR RANGE

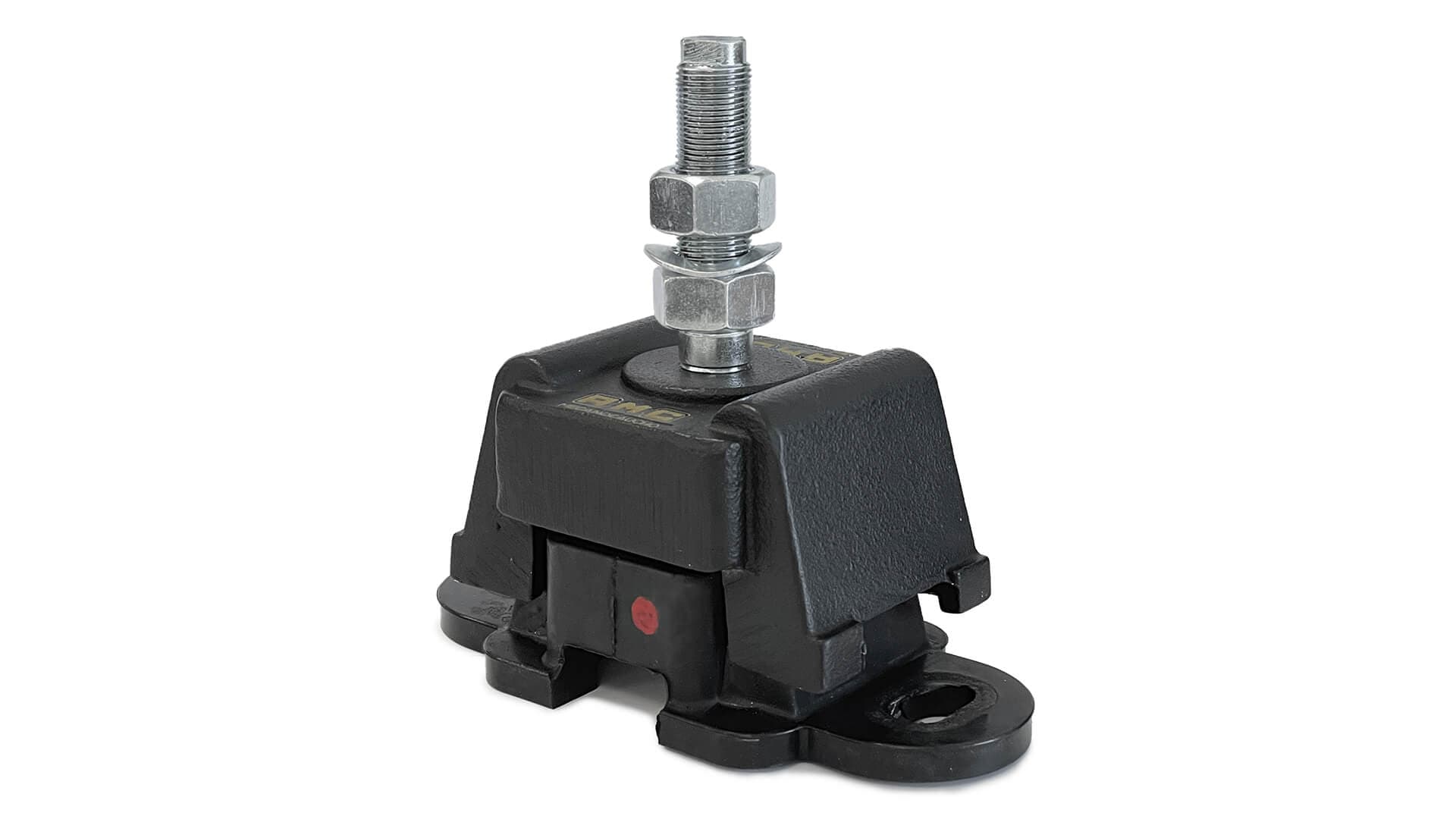

AMC Mecanocaucho® MARINE XT Captive anti vibration mounts are anti vibration elements which work the rubber in both shear and compression. Their design has been tailored to provide a specific stiffness in each axis, a key benefit is providing a reduced roll natural frequency for engine installations.
The AMC Mecanocaucho® MARINE XT Captive mount is especially recommended for harsh applications where vibration isolation is a crucial factor, such as the isolation of rotating or mobile machines that are continuously subjected to shock forces. A high level of corrosion resistance is achieved which ensures protection from substances such as dripping oil/diesel and also in applications where there is exposure to the elements. Furthermore, thanks to their high stiffness in one of its directions, excellent results can be achieved for applications in which the thrust from the engine is high.
TECHNICAL CHARACTERISTICS
AMC Mecanocaucho® MARINE XT anti vibration mounts have a special design that provides 3 different stiffness values in the 3 different directions, the highest being the one in the longitudinal direction. This design allows the mounts to face high longitudinal loads (thrust loads produced by marine engines) while their low lateral and vertical stiffness values allow them to keep a high isolation level against the main excitations from the crankshaft of the engine (which occurs at the plane with the lowest stiffness values of the mount).
ELASTIC PROPERTIES
TECHNICAL CHARACTERISTICS
-
The top metal hood protects the rubber from the Ozone, UV rays, diesel or oils which could damage the rubber.
-
The metal parts have a suitable anticorrosive treatment for outdoor applications. RoHs compliant.
-
They have an interlocking metal component that provides a fail-safe protection for mobile applications. This device limits vertical movement when the mounting is submitted to shock inputs.
-
The mounts are clearly identified, the baseplates are engraved with the type and hardness making it possible to easily recognize the part even after several years of use.
APPLICATIONS
The Marine XT anti vibration mounts are designed for marine applications where it is important to control the thrust from the engine. Thanks to their high longitudinal stiffness they can withstand the high thrust loads with a limited deflection.
Do not hesitate to contact our technical department for more information about this product.
