New ST-5 and ST-5+Sylomer®

AMC-MECANOCAUCHO® INTRODUCES THE NEW ST-5 and ST-5+Sylomer ® ACOUSTIC HANGERS. THE PERFECT ANTI VIBRATION MOUNT FOR THE VIBRATION ISOLATION OF LOUD SPEAKERS

11/3/2016

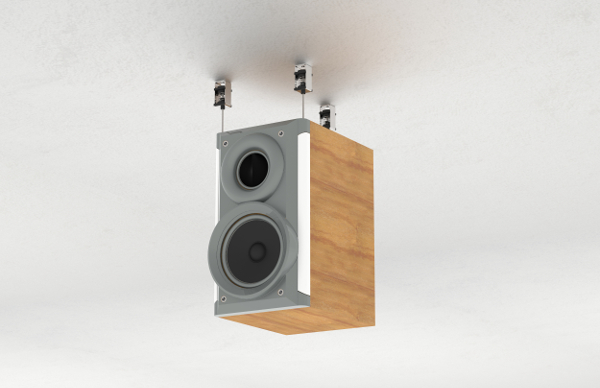

loud speakers

The AMC-MECANOCAUCHO® type ST-5 and ST-5+Sylomer® are also ideal for high performance building acoustics as well for stationary applications where the acoustic hanger must provide a high degree of structure borne noise isolation. Thanks to their low stiffness they are capable of achieve natural frequencies ranging from 3 to 4Hz. Due to this fact they are often used on applications where a high isolation degree is required even at low disturbing frequencies (600 to 1000 rpm).

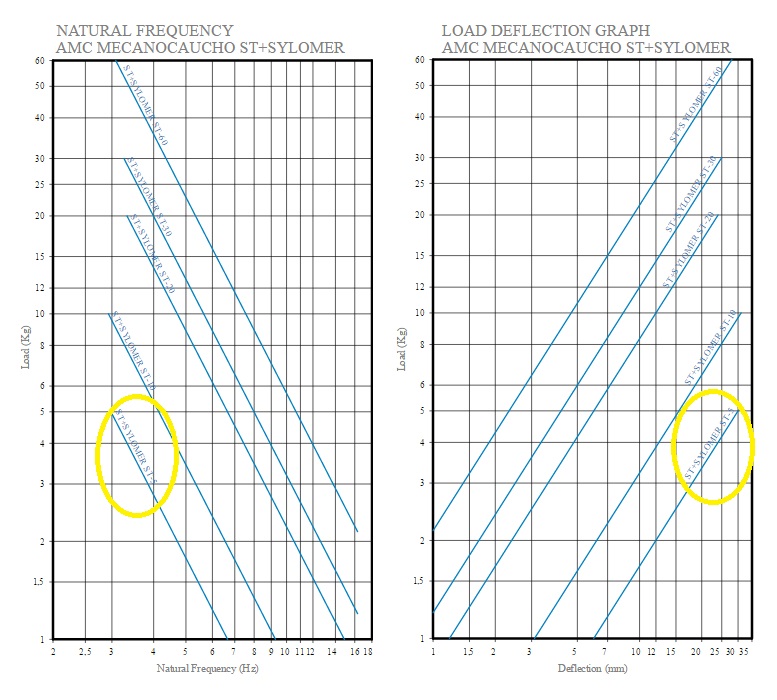

elastic properties

TECHNICAL CHARACTERISTICS

The design of these acoustic hangers is composed of:

  • 1.- Metal parts that are mechanically failsafe.
  • 2.- A rubber molded part equipped with an end stroke buffer if ever the acoustic hanger is overloaded.
  • 3.- A prime degree steel coil spring to provide low natural frequency to the acoustic hanger.
  • 4.- A Sylomer® layer to isolate mid-high frequencies that could travel through the coil spring.

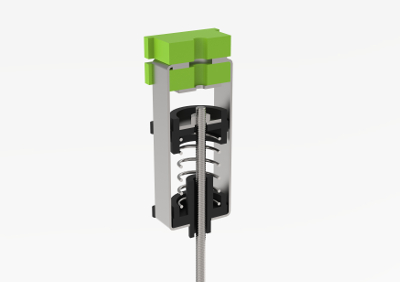

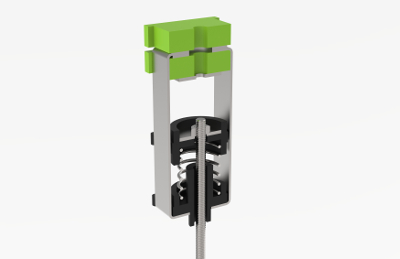

ST5+Sylomer® ST5+Sylomer®
WITHOUT DEFLECTION 14mm DEFLECTION

Contact our team of acoustic hanger specialists to provide you advice and recommendations of installation.
