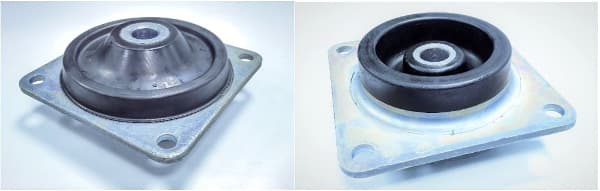

AMC-MECANOCAUCHO® INTRODUCES THE NEW CONE 141 ANTI VIBRATION MOUNTS
The AMC-MECANOCAUCHO® type cone 141 anti vibration mounts are ideal for mobile applications for loads ranging from 70 to 250 Kg. Its specific design allows these anti vibration mounts to provide two different vertical stiffnesses, thanks to the architecture of the rubber. This is particularly interesting for mobile applications where the vertical movement has to be controlled.
TECHNICAL CHARACTERISTICS
The design of these anti vibration mounts has been optimized using FEM in order to spread the tension of the compound homogeneously throughout the section of the anti vibration mount.
The above architecture of the mount allows two vertical stiffnesses. This feature allows a better control of the vertical movement of the suspended element. These mounts are supplied with rebound and centering washers to limit movement in compression/traction. Like the rest of the AMC-MECANOCAUCHO Conical anti vibration mounts, the horizontal stability is assured thanks to the parallel faces between the external and internal armours.
The AMC-MECANOCAUCHO cone 141 anti vibration mounts are manufactured in 3 standard rubber hardnesses to suit load ranges from 70 to 250 Kg. load applications.
The metal parts are coated with Zinc Nickel coating in order to withstand arduous corrosive environments.
ELASTICAL PROPERTIES
APPLICATIONS
The AMC-MECANOCAUCHO® cone 141 anti vibration mounts are used on mobile applications where there is a need for high isolation performance and limitation of vertical movement when overloaded. Typical applications that match this requirement are for example industrial vehicle cabins, mobile HVAC equipment, generator sets, ventilation systems or pumps.
