AMC-MECANOCAUCHO® ADDS THE NEW VIBRABSORBER® VSH 700 - 2’’ DEFLECTION SPRING-MOUNT TO THEIR STANDARD AND ANTISEISMIC RANGE
The AMC-MECANOCAUCHO® Vibrabsorber VSH -700 are ideal for stationary or low mobility applications where a high isolation degree is required at low disturbing frequencies (above 400 rpm).
TECHNICAL CHARACTERISTICS
The design of these anti vibration mounts is composed of metal parts that keep the same dimensions as the current range of AMC-MECANOCAUCHO Vibrabsorber Antiseismic VSH .
The elastic properties remain the same as the actual range of our Vibrabsorber anti vibration mounts . The load range of these mounts is from 430 to 700 Kg per anti vibration mount.

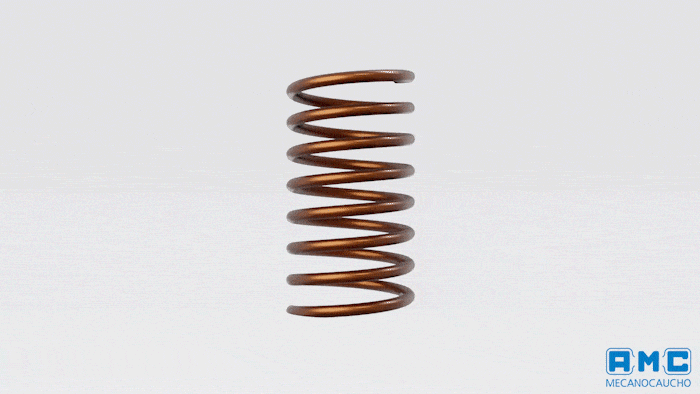

These mounts can be equipped on multiple spring setup as below, sets of 2,3,4,5,6 or 9 springs can be achieved.
|
|
The range has increased considerably as it can be seen on the tables below.
| STANDARD VSH Vibrabsorber Spring Mounts | |
|---|---|
| Code | Description |
| 20464 | 1V-SH 700 |
| 21015 | 2V-SH 1400 |
| 21029 | 3V-SH 2100 |
| 21039 | 4V-SH 2800 |
| 21049 | 5V-SH 3500 |
| 21059 | 6V-SH 4200 |
| 21069 | 9V-SH 6300 |
| Antiseismic VSH Vibrabsorber Spring Mounts | |
|---|---|
| Code | Description |
| 20661 | 1V-SH 700 Antiseismic + Sylomer® |
| 20594 | 2V-SH 1400 Antiseismic + Sylomer® |
| 20759 | 4V-SH 2800 Antiseismic + Sylomer® |
| 20868 | 6V-SH 4200 Antiseismic + Sylomer® |
| 20900 | 9V-SH 6300 Antiseismic + Sylomer® |
|
|
|
|
|
|
|
|
These anti vibration mounts are epoxy and cataphoresis coated to cope to arduous corrosive environments.
APPLICATIONS
The AMC-MECANOCAUCHO® VSH 700 - 2’’ spring anti vibration mounts are used on stationary or low mobility applications where the disturbing frequency is low, for example generator sets, HVAC equipment, pumps or ventilators.
Do not hesitate to contact our team of applications engineers. They can help you to make vibration calculations using this new anti vibration mount.
