MRI floor vibration isolation

Distribution of Sylomer® densities for floor vibration isolation

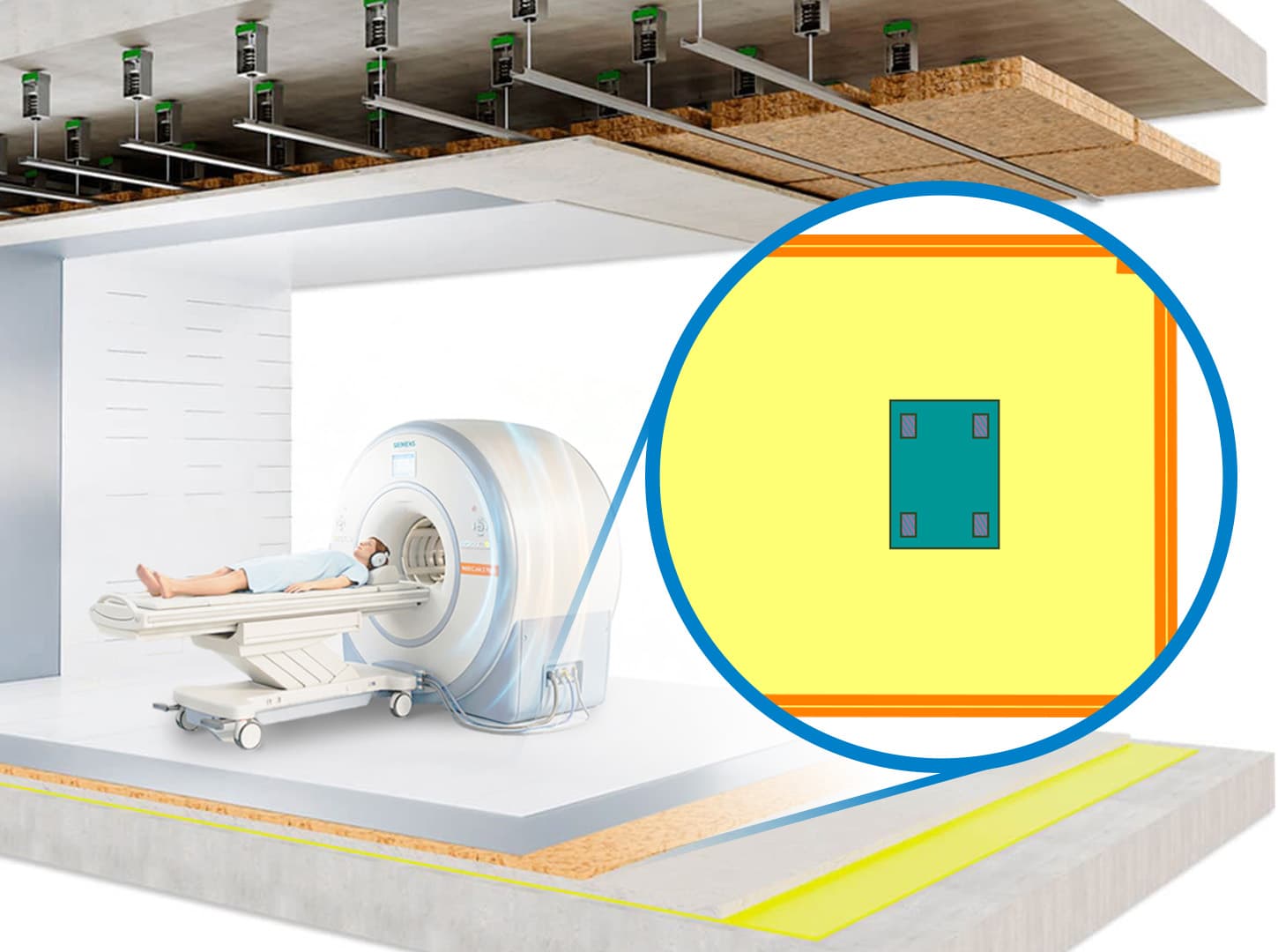

The floor vibration isolation system is designed using different Sylomer® densities according to the load distribution in each area. The MRI scanner requires higher-density materials beneath its support points, as do the perimeter zones supporting the Faraday cage structure. Lower-density materials are used throughout the remaining floor area, optimizing the overall performance and deflection of the isolation system.
sol-maquina-resonancia-big
Solutions

Reinforced insulation under the MRI

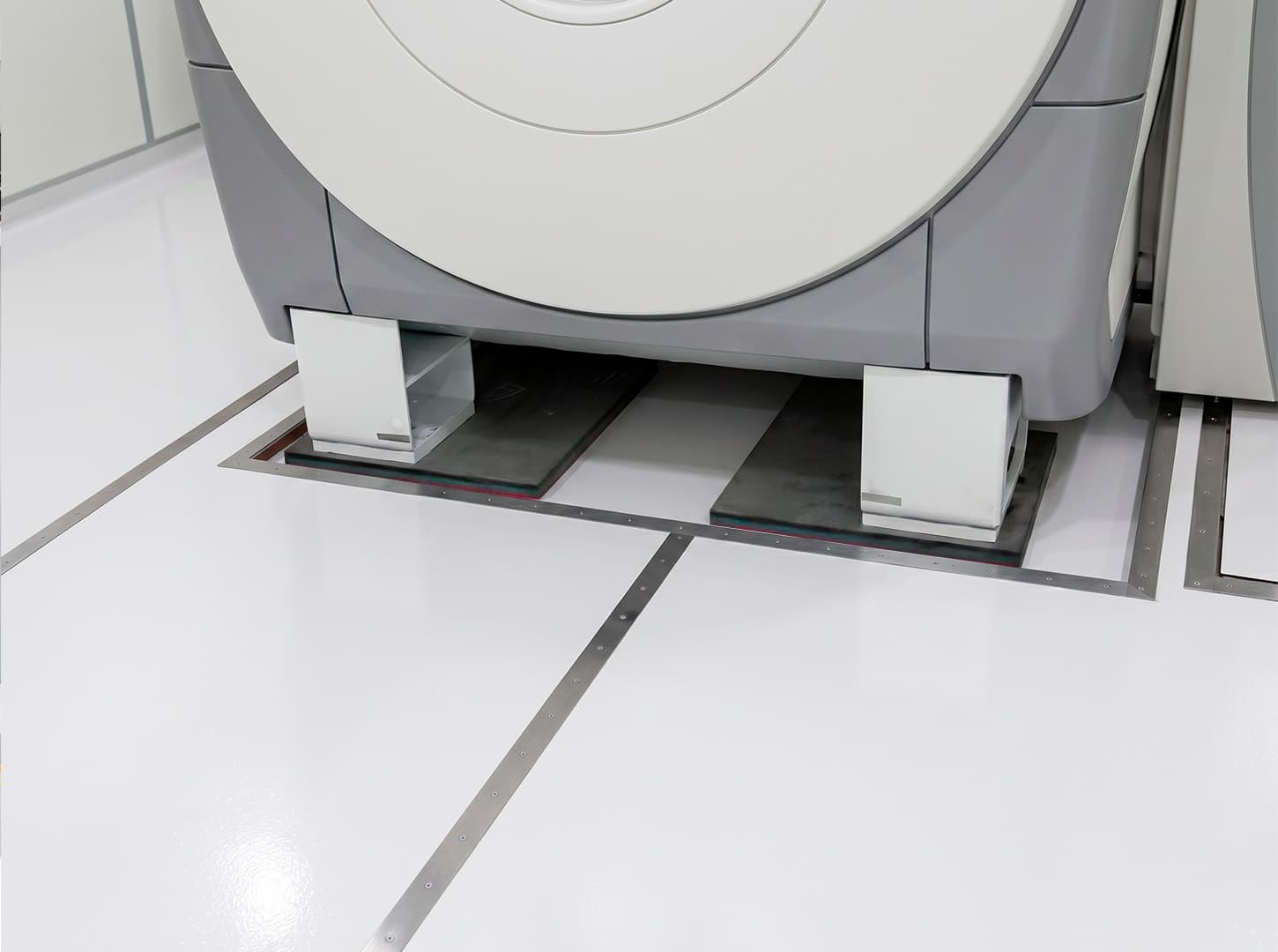

The area where the MRI machine is located concentrates the highest loads, requiring a reinforced insulation system. At this point, specific supports are incorporated, combined with higher density Sylomer®, capable of working under high loads without losing elastic properties. This configuration allows for a low natural frequency and effective vibration isolation. Additionally, it ensures the stability and precision necessary for the proper functioning of the equipment.

solucion-suelo-mir
Solutions alternatives

Isolation vibratoire du plancher d’une salle d’IRM

Le système d’isolation vibratoire du plancher est dimensionné avec différentes qualités de Sylomer®, sélectionnées en fonction de la répartition des descentes de charges sur l’ensemble de l’installation.

Des éléments de densité supérieure sont disposés sous les points d’appui de l’appareil d’IRM ainsi qu’en périphérie, au droit de la structure porteuse de la cage de Faraday. Des densités inférieures sont mises en œuvre sur le reste de la surface.

Cette répartition optimisée des charges permet d’obtenir une déflexion statique homogène, de maximiser les performances d’isolation vibratoire et de garantir la stabilité à long terme de l’installation d’IRM.

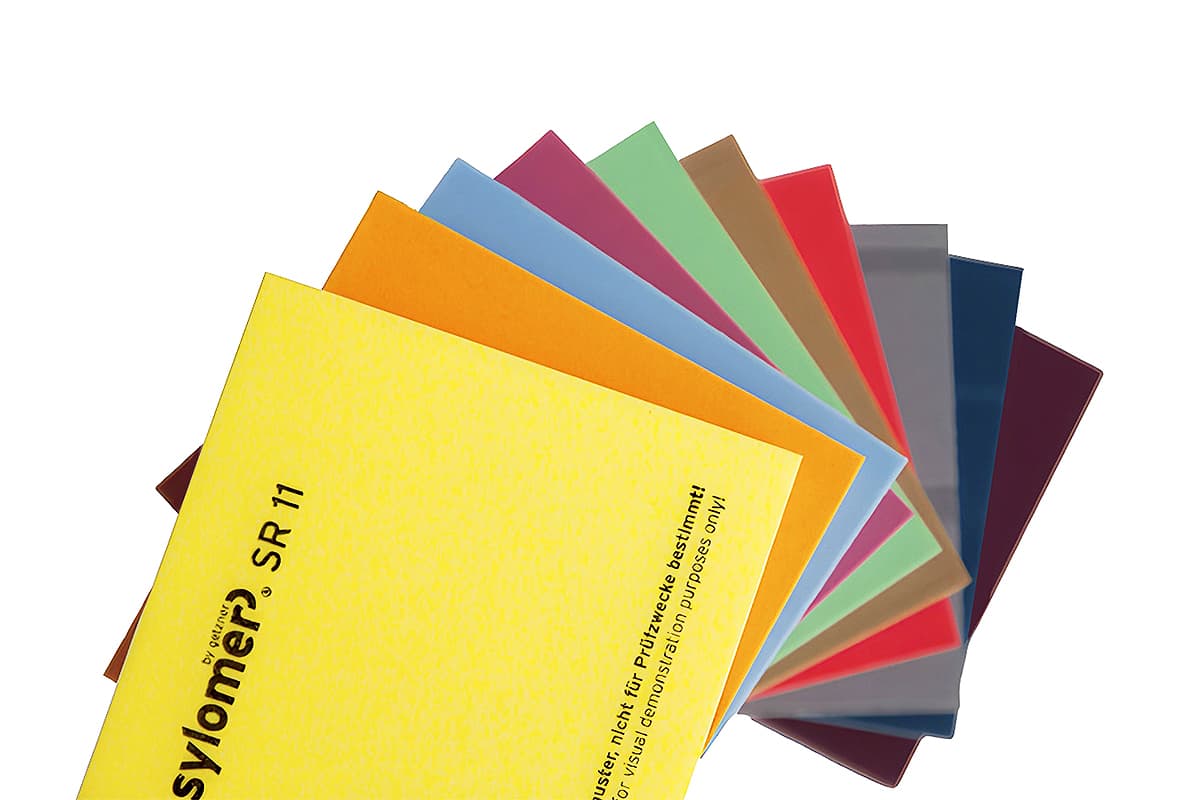

improve-isolation.mri

Anti vibration mounts for this solution

Alt imagen

300 × 300 Anti-Vibration Pads

300 × 300 mm rubber anti-vibration pads, easily cut to size and installed without mechanical fixings to reduce vibration transmission.
Alt imagen

400 × 400 Anti-Vibration Pads

400 × 400 mm rubber anti-vibration pads, easily cut to size and installed without mechanical fixings to reduce vibration transmission.
Mecanocaucho® Blocks

Mecanocaucho® Blocks

Rubber anti-vibration blocks for vibration isolation of industrial machinery and equipment, available in various dimensions and thicknesses and suitable for installation without anchoring.
Alt imagen

FZH + Sylomer® Jack-Up Mounts for Floating Floors

FZH + Sylomer® Jack-Up Mounts integrated into concrete slabs for floating floor construction. Vibration isolation from 8 Hz with a low-profile design.
Alt imagen

Floor Blocks – Anti-Vibration Mounts for Floating Floors

Floor Blocks anti-vibration mounts for the resilient isolation of floating floors and slabs and the reduction of impact sound, vibration and structure-borne noise.

1 AMC DB Spring mount

1 AMC DB Spring mount

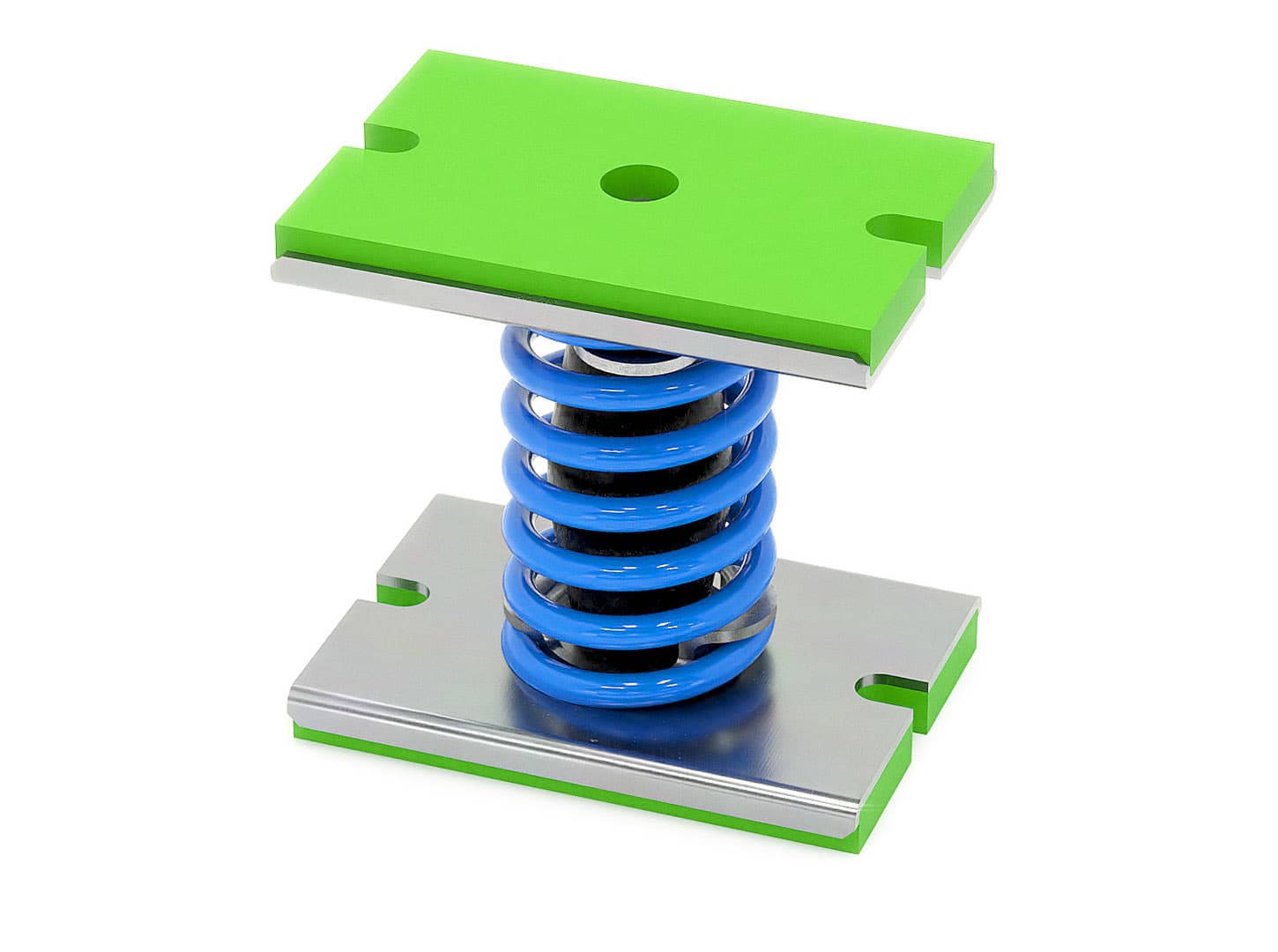

1 AMC DB  spring mount with upper and lower Sylomer® layers for broadband vibration isolation and acoustic floating floors.
