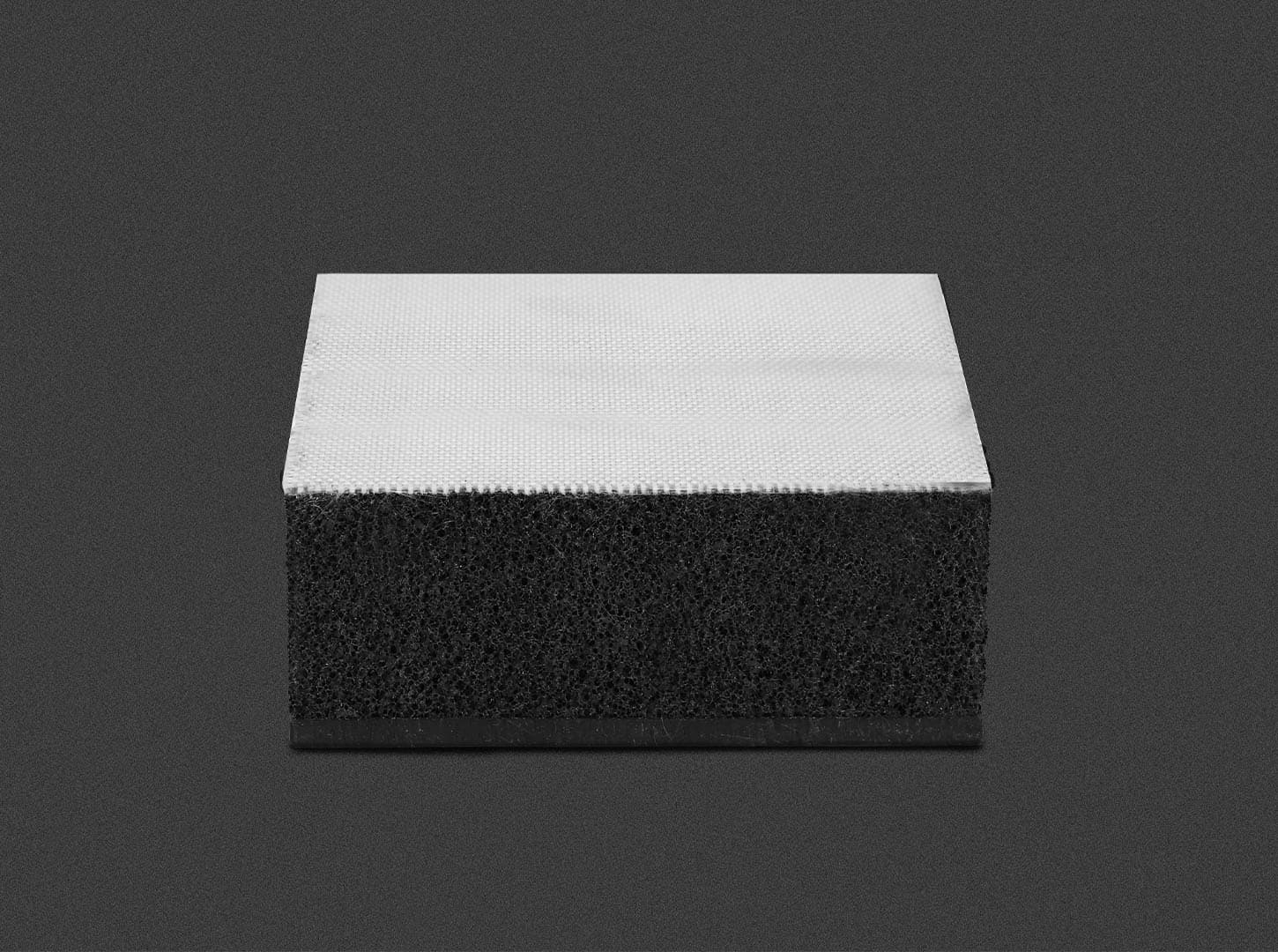

The AKUSTIKABSORBER FIM is a multilayer acoustic panel designed to provide high airborne sound isolation, combining sound absorption, mass and mechanical durability in a single technical product. It consists of fire-resistant Type F polyurethane foam, a durable glass fibre facing and a heavy mass layer bonded to the rear, which acts as an acoustic barrier when positioned against the supporting surface during installation.
The Type F foam provides effective sound absorption, particularly at medium and high frequencies. The external glass fibre facing mechanically reinforces the panel and protects the foam against wear, abrasion and demanding operating conditions. The rear heavy mass layer increases the surface mass of the system, helping to reduce airborne sound transmission.
This multilayer construction makes FIM particularly suitable for demanding industrial applications, acoustic enclosures, technical rooms, machinery housings and cabins where high sound isolation, effective absorption and high surface resistance are required.
| Type | Code | Self-adhesive | Rw(dB) | Weight/m2 (kg) |
|---|---|---|---|---|
| FIM-15 sheet | 26221 | - | 24 | 7,335 |
| Type | Code | Self-adhesive | Rw(dB) | Weight/m2 (kg) |
|---|---|---|---|---|
| FIM-15 A sheet | 26211 | ✓ | 24 | 7,335 |
| Type | Code | Self-adhesive | Rw(dB) | Weight/m2 (kg) |
|---|---|---|---|---|
| FIM-25 sheet | 26225 | - | 24 | 8,085 |
| Type | Code | Self-adhesive | Rw(dB) | Weight/m2 (kg) |
|---|---|---|---|---|
| FIM-25 A sheet | 26215 | ✓ | 24 | 8,085 |
15mm 25mm
1200x1000 mm
15mm thick, 8 Sheets per box.
25mm thick, 5 Sheets per box.
