The AMC-MECANOCAUCHO® 2V-SH Anti-Seismic Spring Mount is designed for equipment requiring high load capacity and high-performance low-frequency vibration isolation, combined with mechanical protection under seismic conditions.
With a static deflection of up to 50 mm (2 inches), the springs can achieve natural frequencies as low as 3 Hz, providing effective isolation for low-speed equipment or machinery generating very low-frequency vibration.

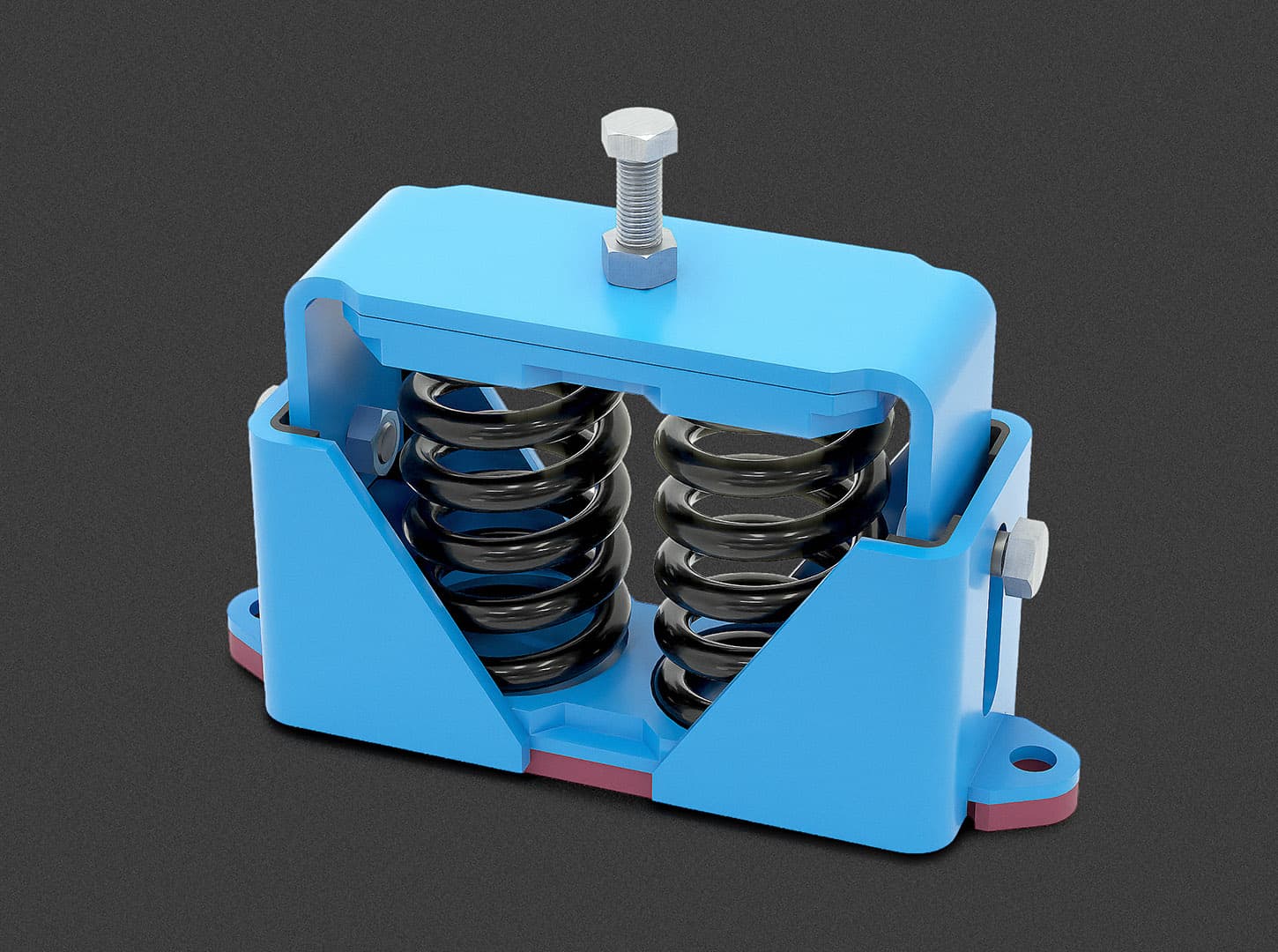

Its twin steel spring configuration provides increased load capacity whilst maintaining the high deflection required for effective low-frequency vibration isolation.
A Sylomer® layer complements the action of the springs by reducing the transmission of medium and high frequencies that may propagate through the steel springs. The combination of springs + Sylomer® therefore provides effective vibration isolation over a wide frequency range.
The spring mount also incorporates an integrated levelling system and an anti-slip rubber base. Under exceptional or seismic loads, the integrated seismic restraint system limits excessive equipment movement whilst allowing the movement required for effective vibration isolation under normal operating conditions.

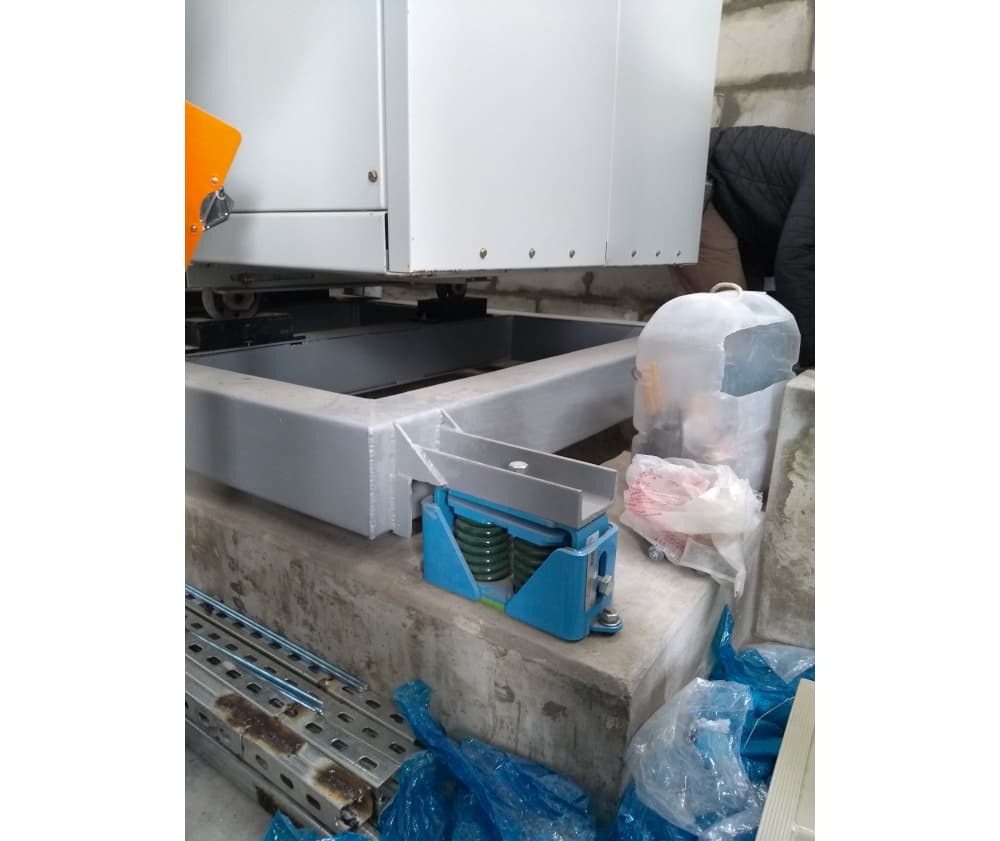

The 2V-SH range is particularly suitable for HVAC equipment, refrigeration units, air handling units, pumps, fans, compressors, generator sets and other heavy technical equipment.
The mounts are able to reach low natural frequencies from 2 to 5 Hz. The spring combined with sylomer® is able to provide high isolation at low and medium frequencies.
The curves are showing the deflection and natural frequencies according to the load of the spring. Temperature working range from -30 to 70º. Short term higher temperatures are possible.
