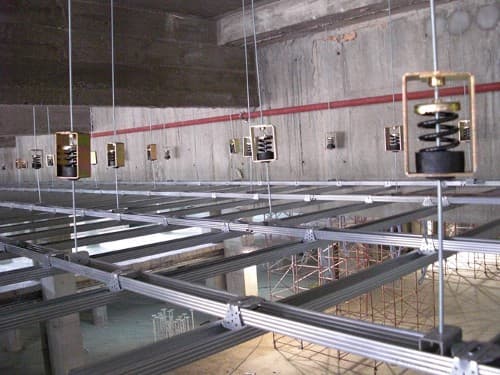

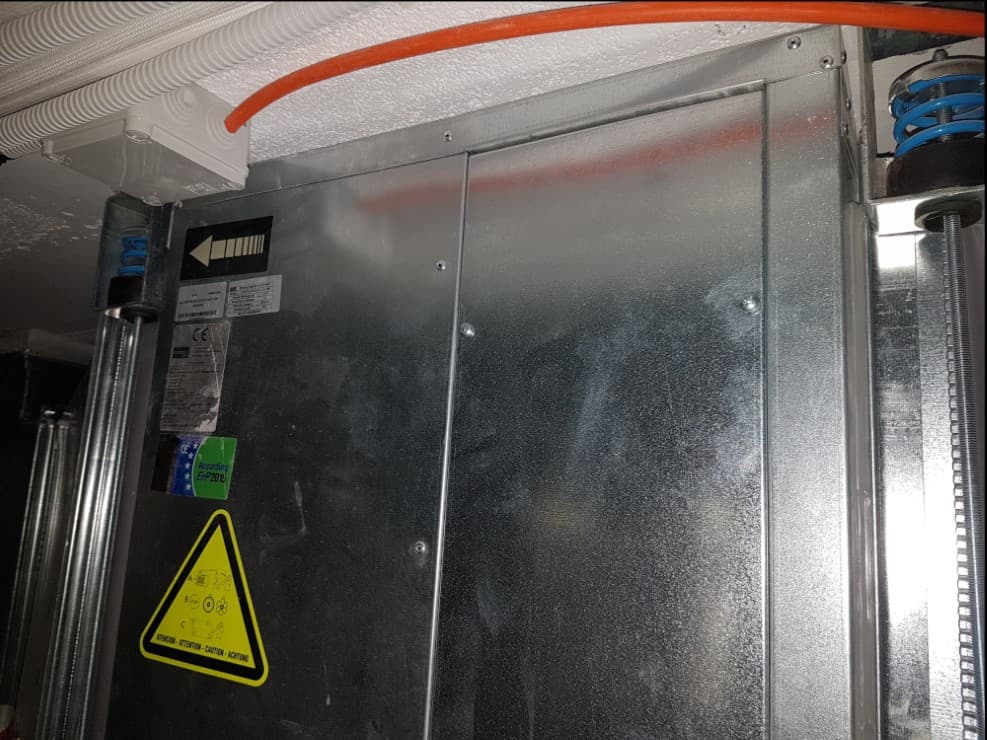

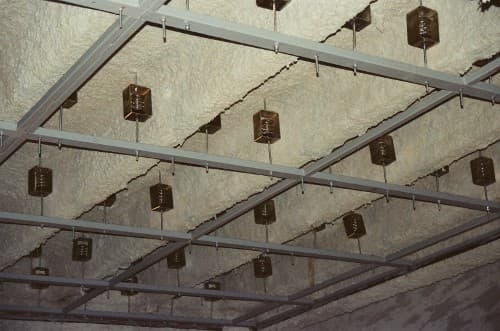

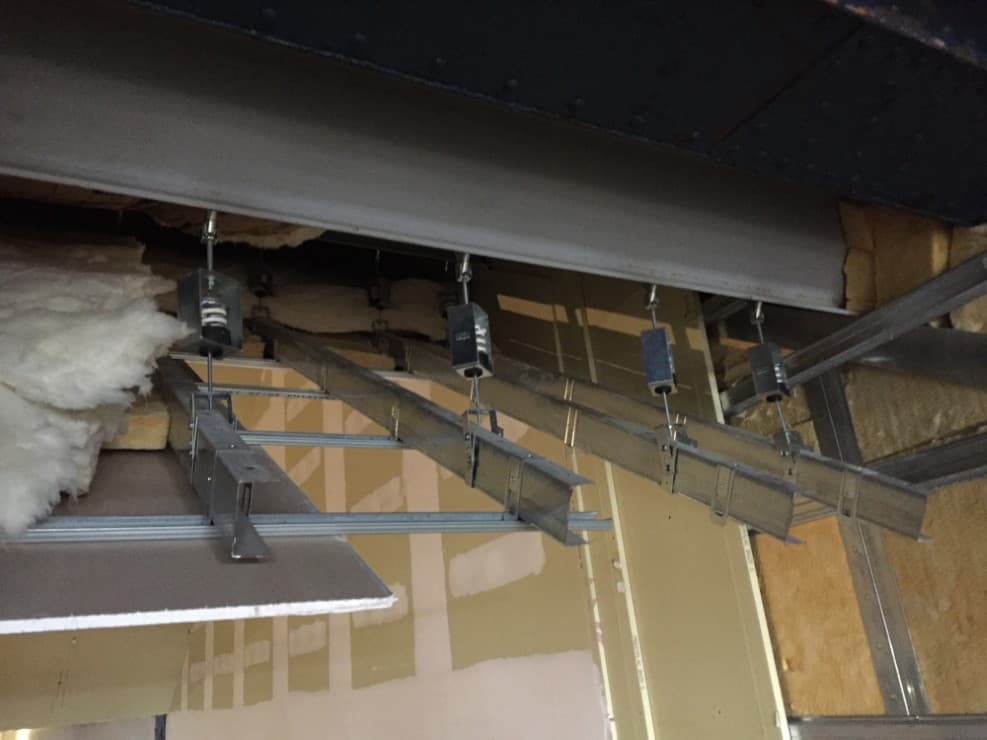

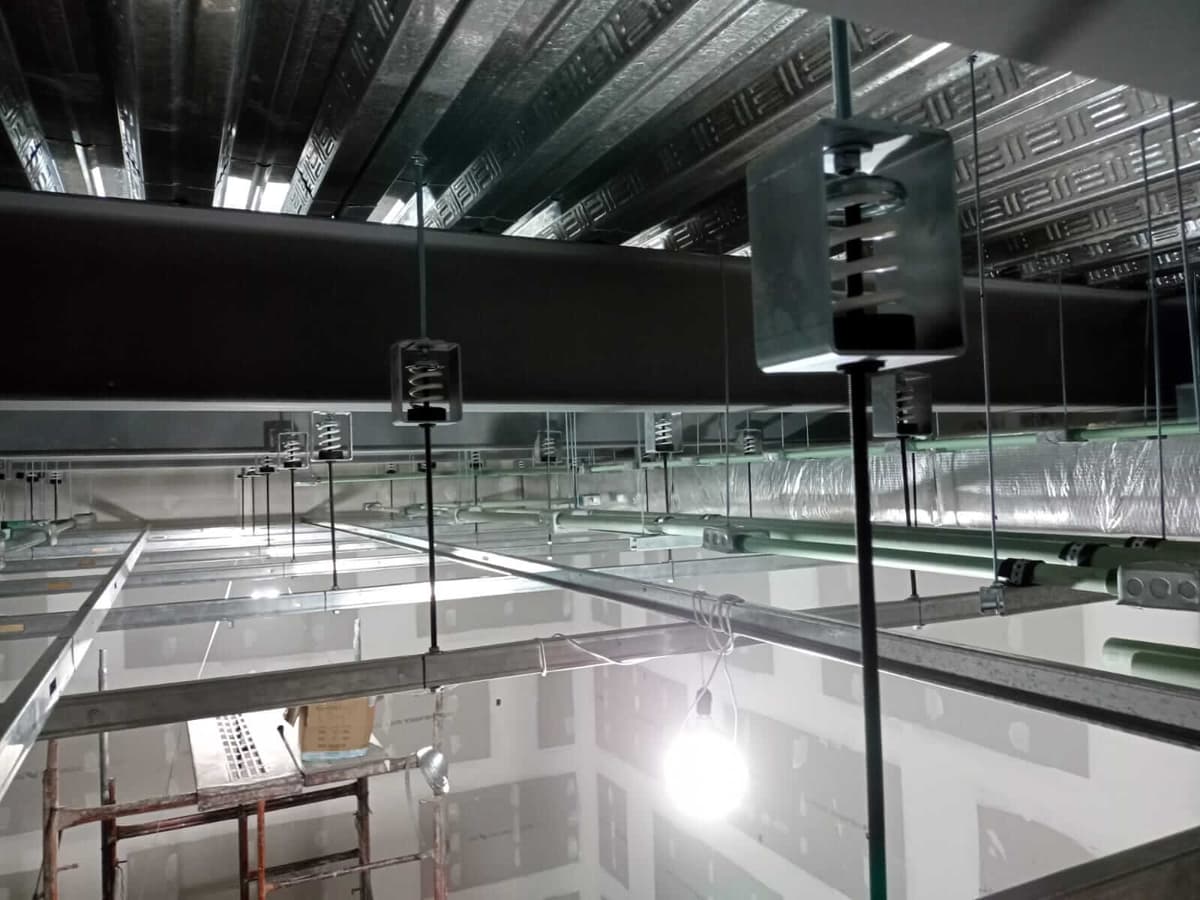

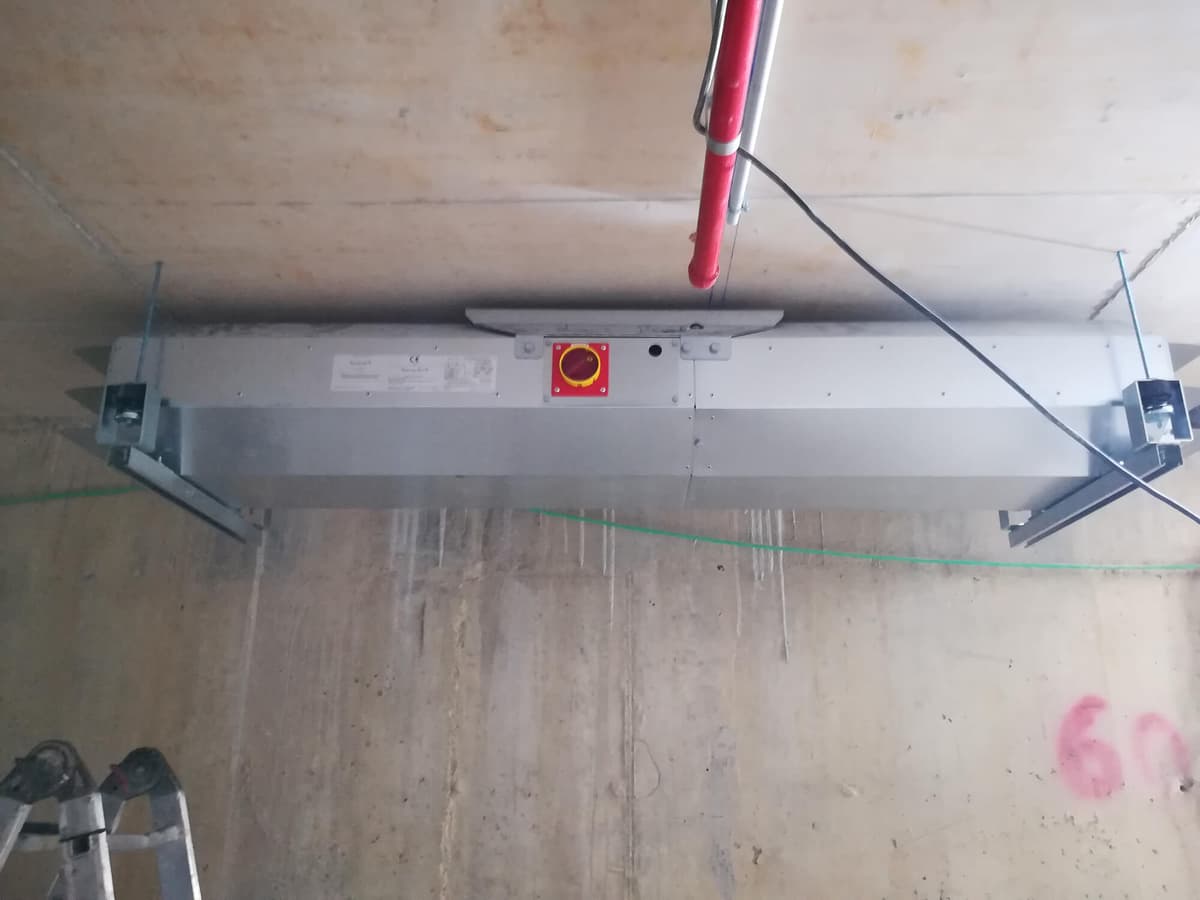

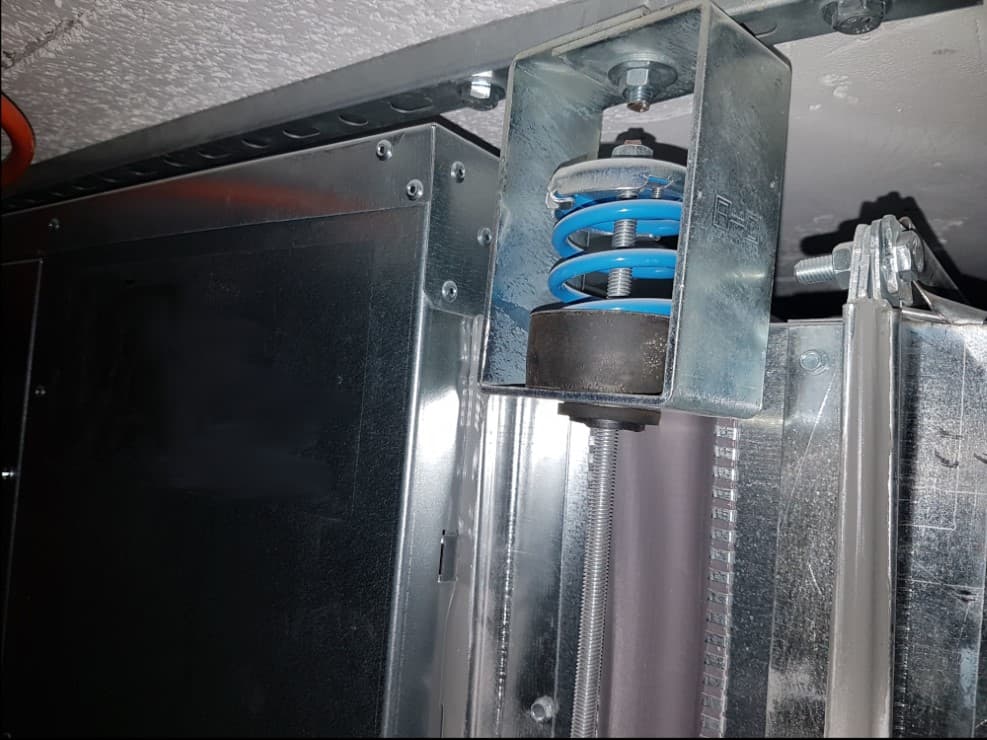

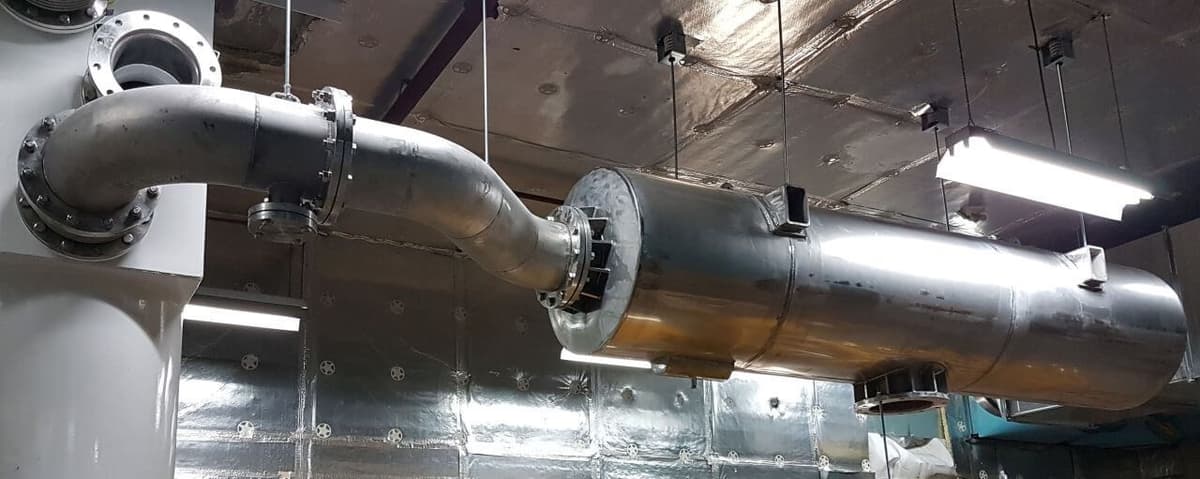

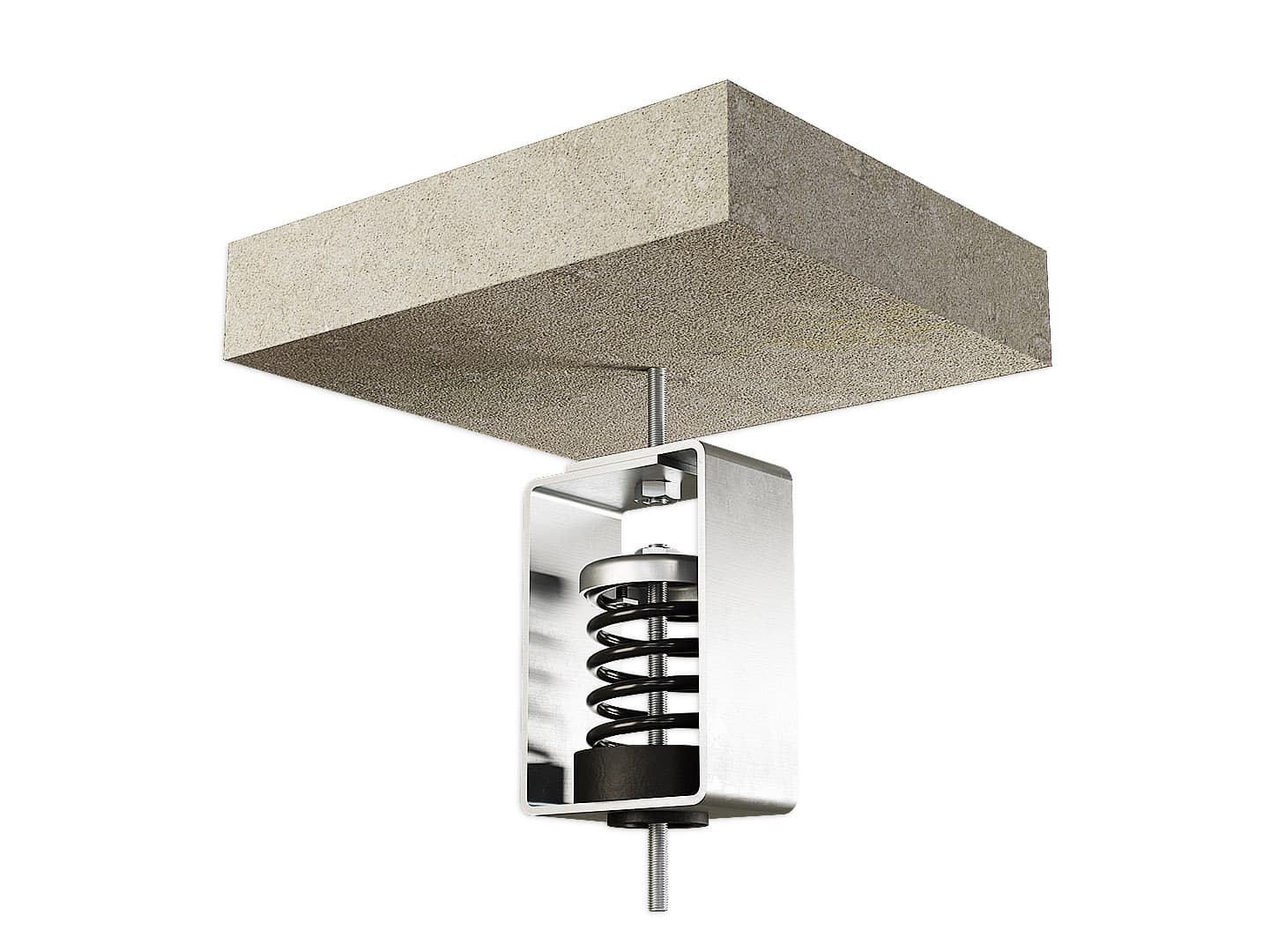

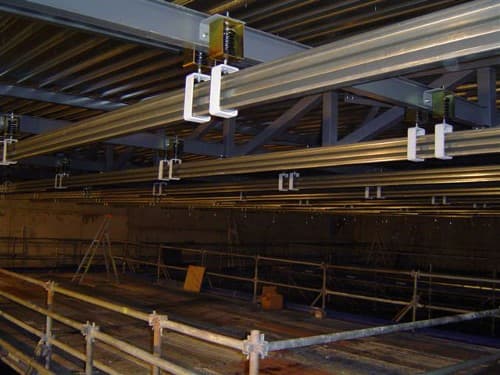

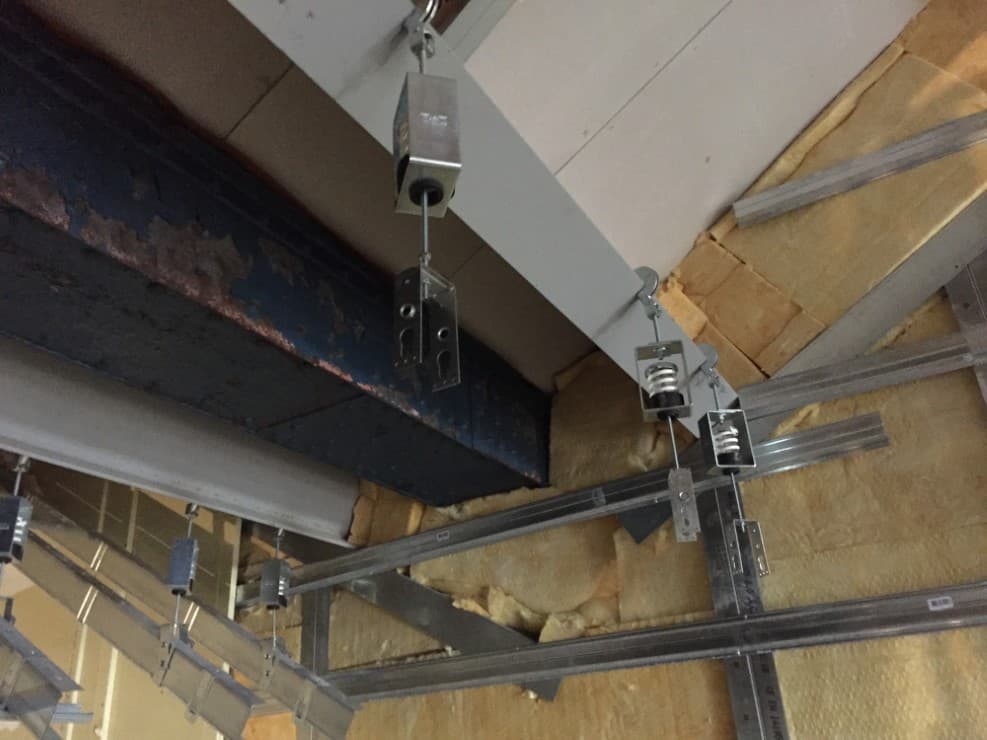

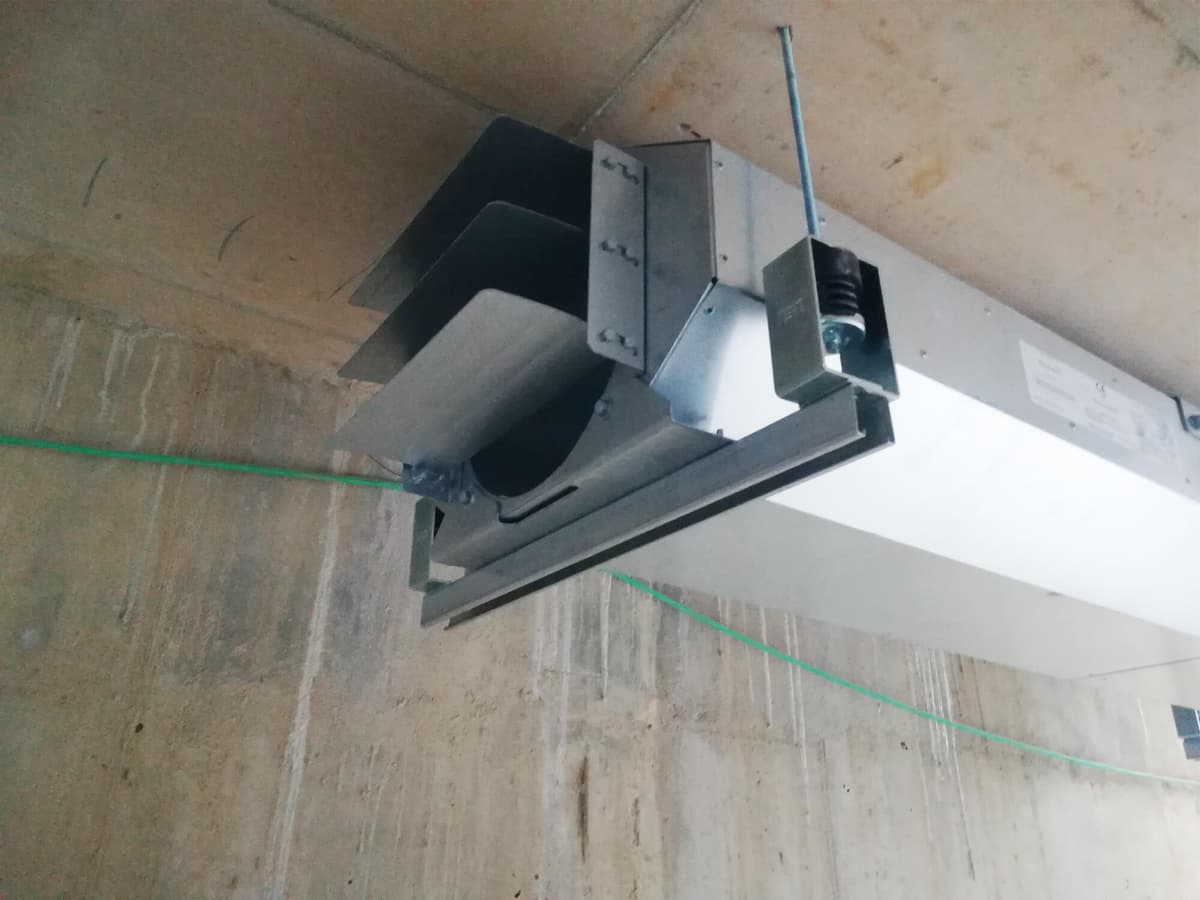

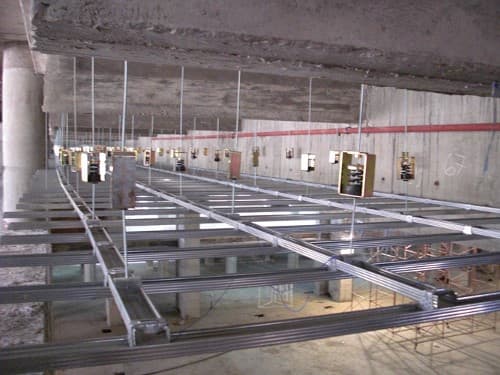

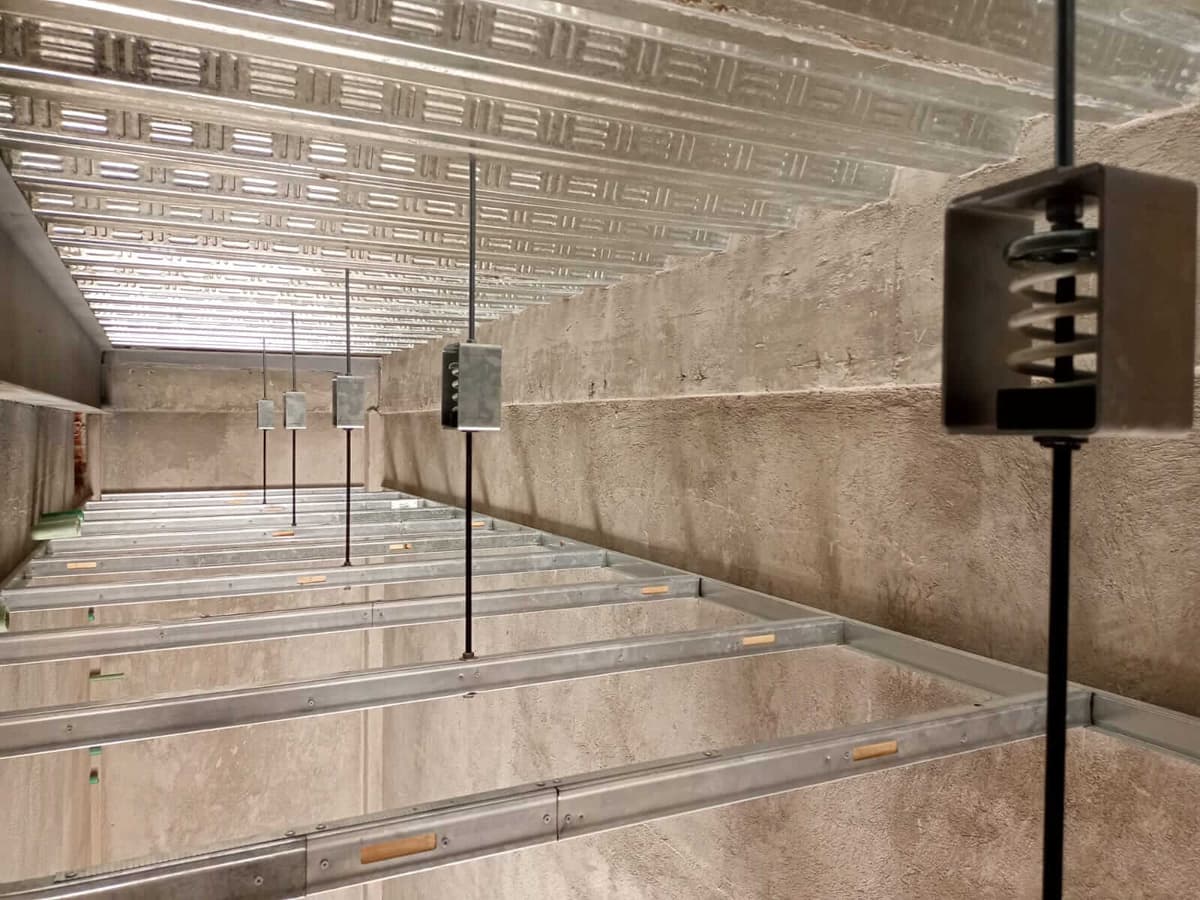

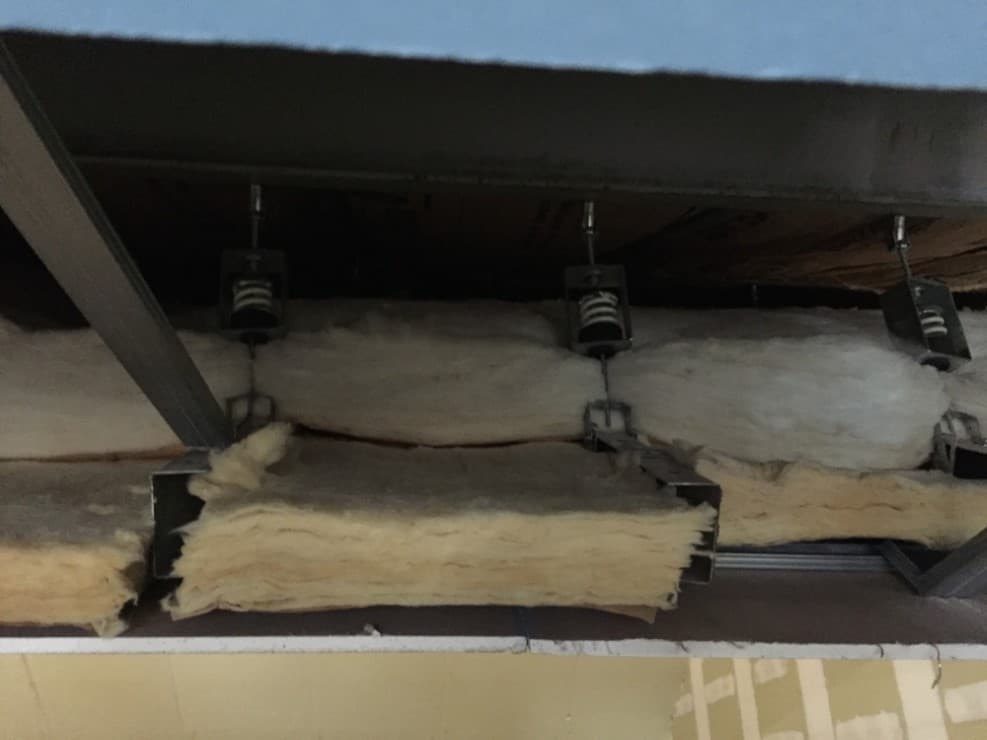

The AMC-MECANOCAUCHO® VT anti-vibration spring hangers are designed for the resilient suspension of acoustic suspended ceilings, machinery and suspended equipment requiring a high level of vibration isolation.

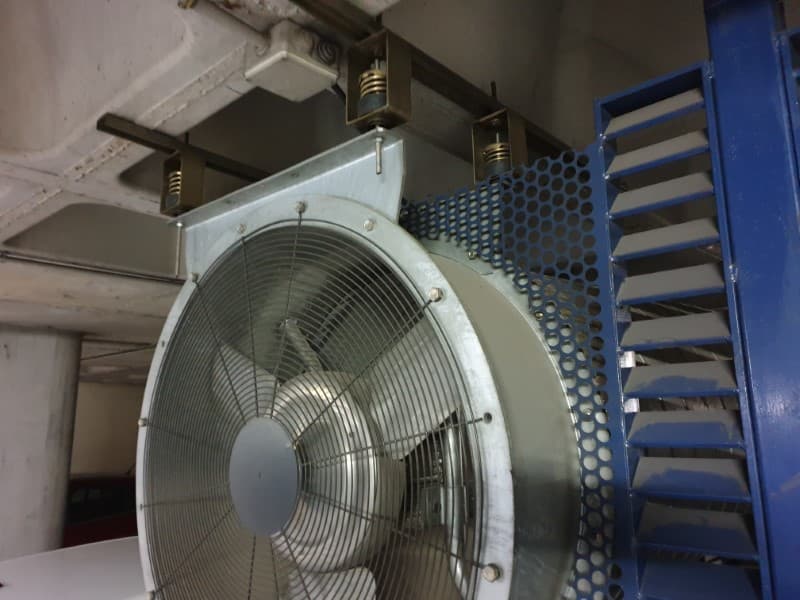

Depending on the model, their natural frequency ranges from 3 to 5 Hz, providing effective low-frequency vibration isolation. They are particularly suitable for machinery operating at rotational speeds from 450 rpm.

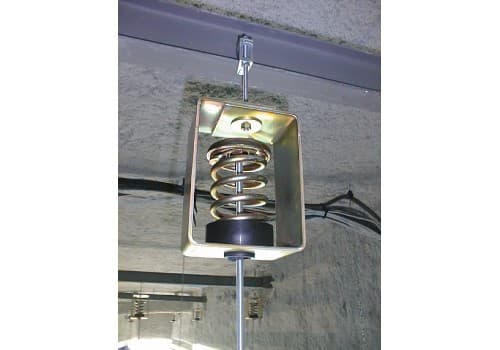

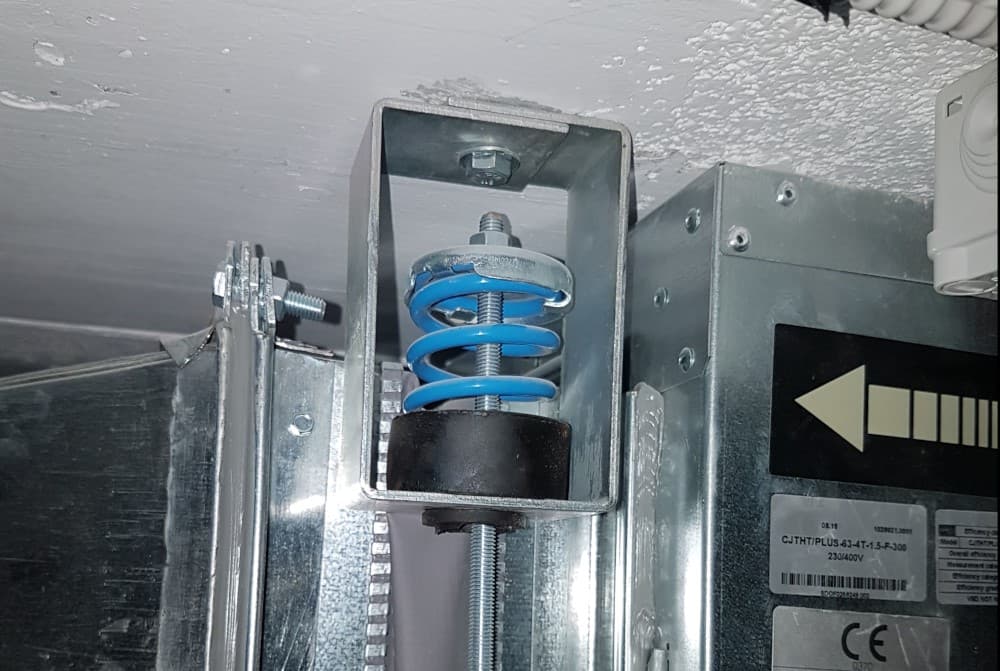

The high-performance steel spring provides high vertical elasticity, while a rubber washer limits vibration transmission through the threaded rod and reduces the risk of acoustic bridging in the event of slight misalignment.
The robust steel structure features a electroplated coating for improved corrosion resistance and durability.
| Type | Max. Permanent Load (kg) | Spring color | A(mm) | C(mm) | E(mm) | H(mm) | Code | K(N/mm) | M | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| VT 8 | 8 | BLACK | 80 | 12 | 50 | 120 | 20199 | 3,3 | M-8 | 0,71 |
| 21399 | 3,3 | M-10 | 0,624 |
NEVER METAL TO METAL CONTACT
The hanger has a clearance that allows the threaded rod to swing within a 35° angle envelope to absorb irregularities in the ceiling.
