Industrial chiller vibration isolation

Vibration control solutions for industrial chillers

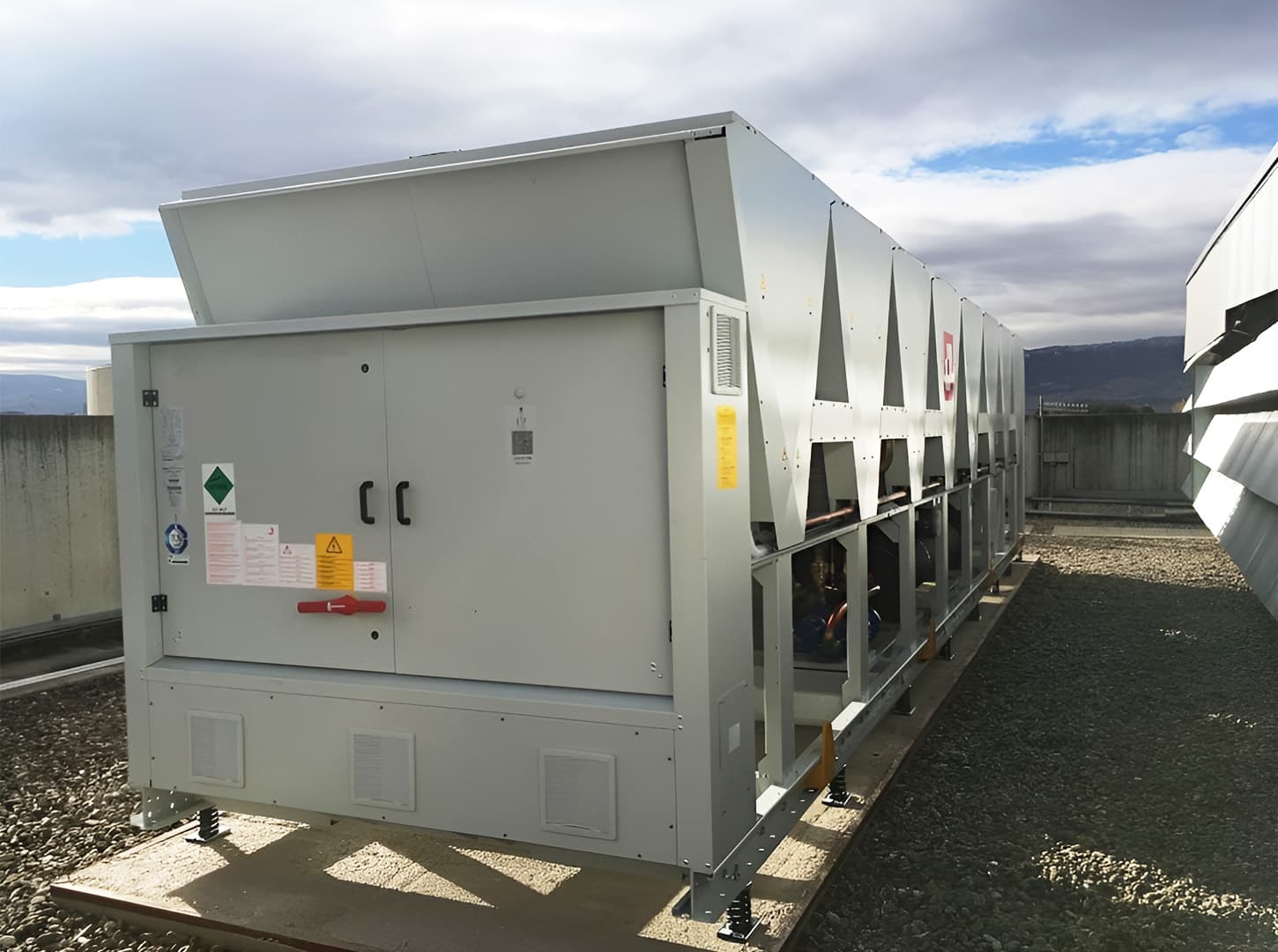

Industrial chillers generate dynamic loads that can be transmitted through the supporting structure, creating structure-borne vibration and noise in adjacent occupied areas. This is particularly important in rooftop installations, technical rooms, hospitals, hotels, offices, and other noise-sensitive buildings.

AMC Mecanocaucho vibration isolation solutions elastically decouple industrial chillers from the building structure, reducing vibration transmission, improving acoustic comfort, protecting the installation, and extending the service life of both the equipment and the building.

isolation-chiller-big
Solutions

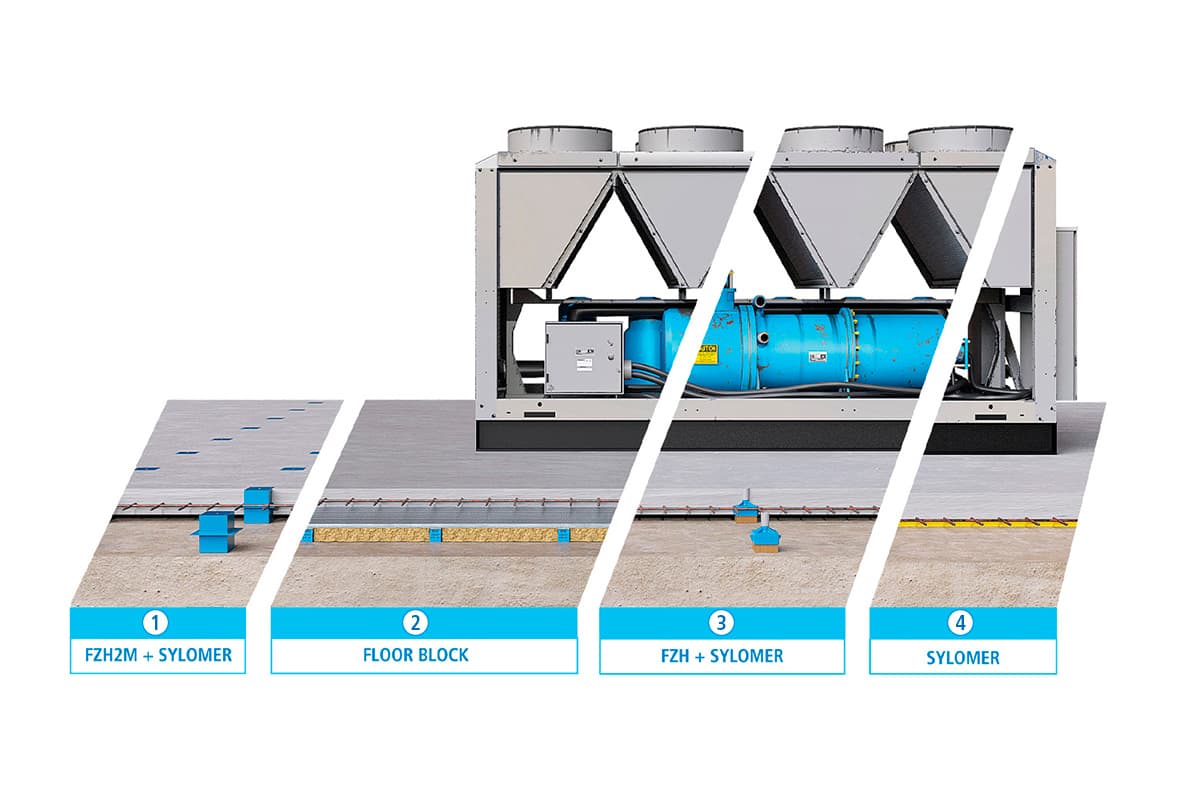

Different Industrial Chiller Vibration Isolation Solutions:

1. FZH2M + Sylomer® Supports: Floating slab vibration isolation using FZH2M + Sylomer® anti-vibration mounts.


2. Floor Blocks + Mineral Wool: High-mass floating floor solution combining Floor Blocks and mineral wool for enhanced vibration isolation.

3. FZH + Sylomer® Supports: Industrial chiller vibration isolation using FZH + Sylomer® anti-vibration mounts.

4. Sylomer® Strip: Continuous Sylomer® strip for resilient support and vibration isolation of industrial chillers.

chiller-solucion
Machinery noise insulation

VIBRATION ISOLATION OF MACHINERY IN FACTORIES

Methods for isolating industrial vibration and noise.

More details
Vibration isolation of machinery in factories
Advice

GOOD PRACTICES FOR THE INSTALLATION OF VIBRATION ISOLATORS FOR HVAC EQUIPMENT

The correct selection of anti-vibration mounts is key for achieving good vibration isolation values on HVAC equipment.
More details
Representation of an air treatment unit equipment with Vibrabsorber+Sylomer® antiseismic mounts.

Anti vibration mounts for this solution

1 AMC Spring Mount

1 AMC Spring Mount

1 AMC spring mount for machinery vibration isolation, with natural frequencies from 3.5 to 8 Hz and a rubber or Sylomer® base.
2 AMC Spring Mount

2 AMC Spring Mount

2 AMC two-spring mount for machinery vibration isolation, with natural frequencies from 3.5 to 8 Hz and a rubber or Sylomer® base.
Alt imagen

1 AMC Anti-Seismic Spring Mounts

Anti-seismic spring mount with integrated seismic restraints, designed for low-frequency vibration isolation and mechanical protection of equipment under seismic conditions.
Alt imagen

FZH + Sylomer® Jack-Up Mounts for Floating Floors

FZH + Sylomer® Jack-Up Mounts integrated into concrete slabs for floating floor construction. Vibration isolation from 8 Hz with a low-profile design.
Alt imagen

TSR 40 x 40

A floor mount for suspending a wide range of equipment. Load range 7.5-25kg
Alt imagen

TSR 70 x 70

A floor mount for suspending a wide range of equipment. Load range 10-300kg
Alt imagen

2 AMC Anti-Seismic Spring Mounts

Double-spring anti-seismic mount for high loads and low-frequency vibration isolation, with integrated seismic restraints for applications in seismic zones.
Alt imagen

TSR 100 x 100

A floor mount for suspending a wide range of equipment. Load range 20-640kg
Alt imagen

10 AMC Anti-Seismic Spring Mounts

Anti-seismic spring mount for loads from 300 to 8,000 kg, designed for low-frequency vibration isolation and dynamic tensile and compressive forces.

Alt imagen

Floor Blocks – Anti-Vibration Mounts for Floating Floors

Floor Blocks anti-vibration mounts for the resilient isolation of floating floors and slabs and the reduction of impact sound, vibration and structure-borne noise.

Alt imagen

FZH2M + Sylomer® – Jack-Up Mounts for Floating Slabs

FZH2M + Sylomer® jack-up mounts for floating slabs, with natural frequencies from 2 Hz and enhanced structure-borne noise isolation at very low frequencies.
