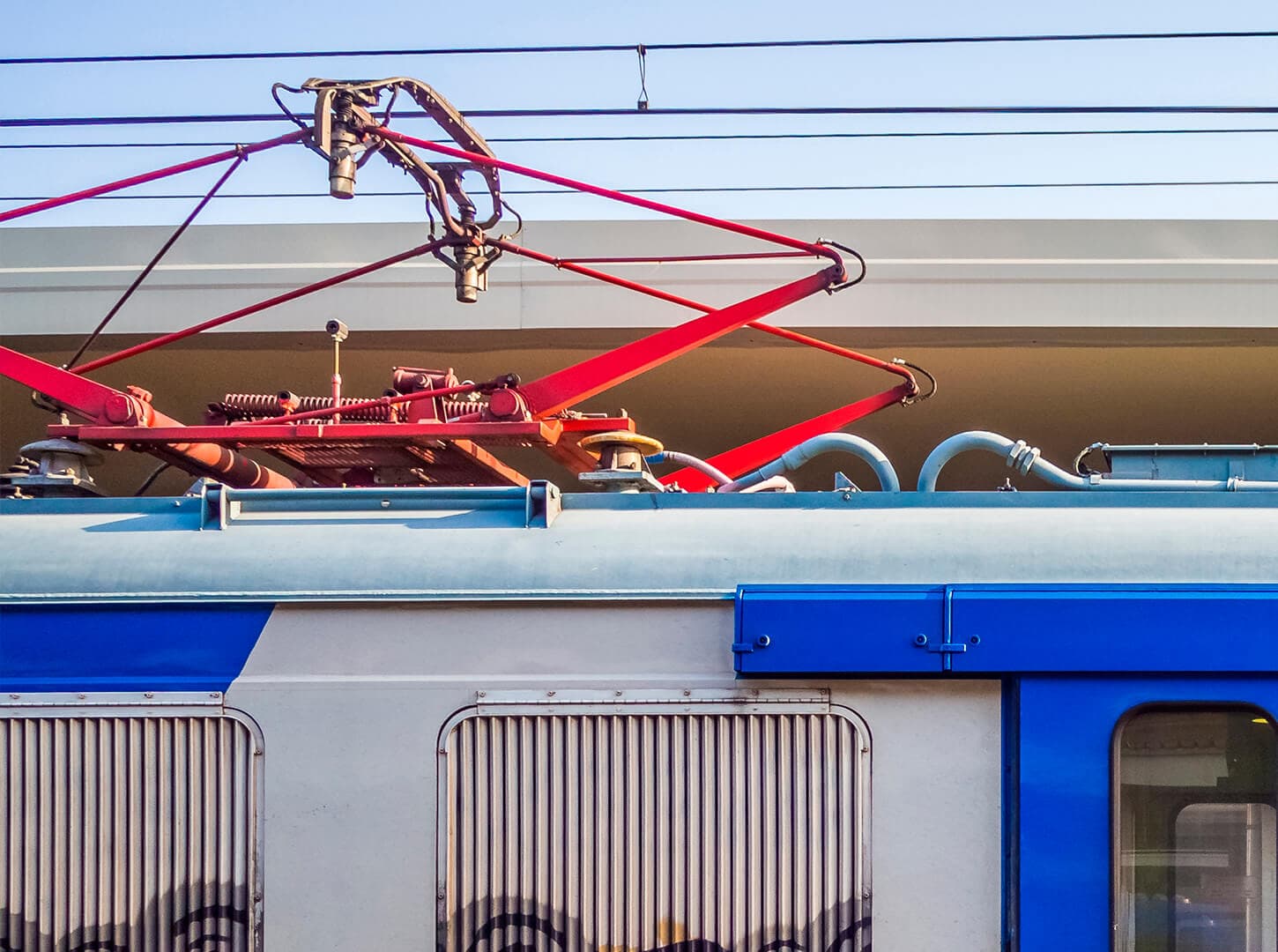

Pantograph operation can generate vibration and dynamic loads that may be transmitted through its mounting points to the roof and vehicle structure.
The installation of anti-vibration mounts between the pantograph frame and the roof structure provides an elastic connection that reduces the transmission of vibration and structure-borne noise into the vehicle body.
The arrangement and characteristics of the mounts are selected according to the loads, mounting-point configuration and dynamic requirements of the installation.

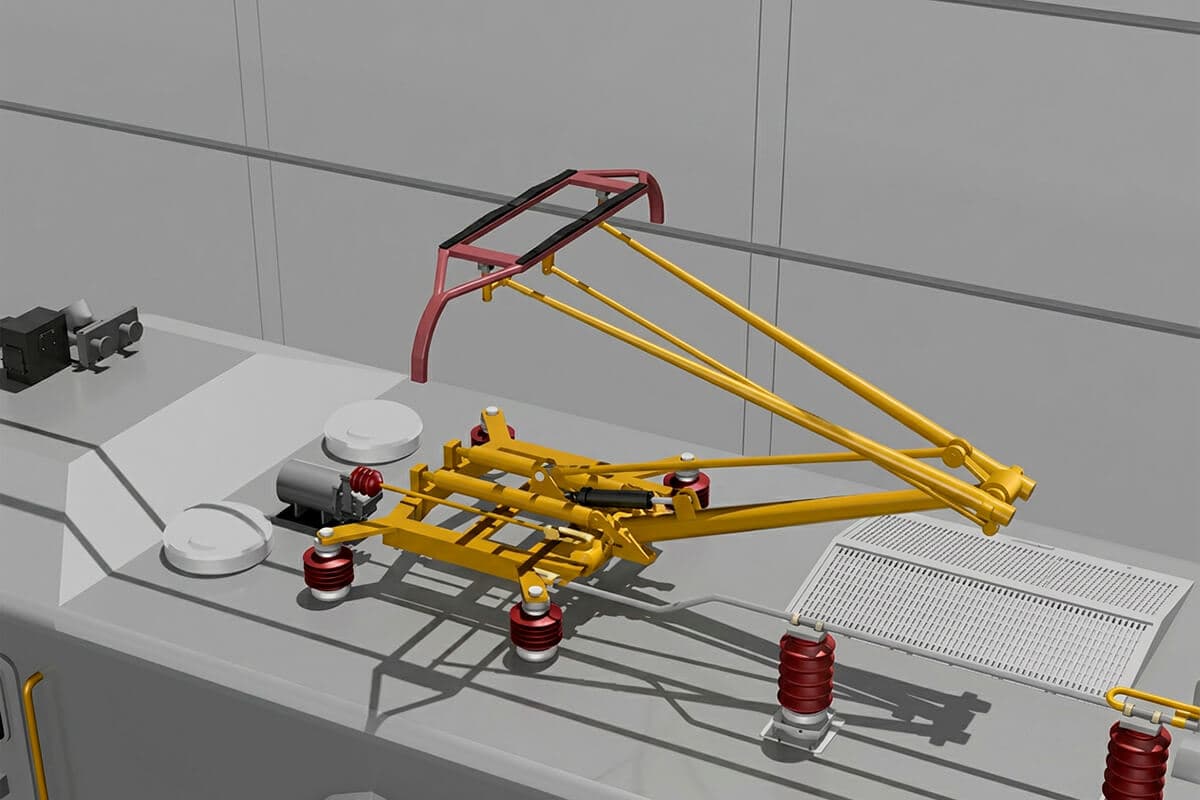

Anti-vibration mounts are installed at the connection points between the pantograph frame and the roof structure to avoid a rigid connection between the two assemblies.
This elastic decoupling helps reduce the transmission of vibration and structure-borne noise from the pantograph into the vehicle structure, while supporting the static and dynamic loads associated with its operation.
The mounts can be selected and positioned according to the frame geometry, load distribution and required level of vibration isolation, facilitating their integration into the railway vehicle design.
