Concentric Bushes

Compact and robust elastomeric bushes designed to withstand high loads while allowing small angular movements without lubrication.

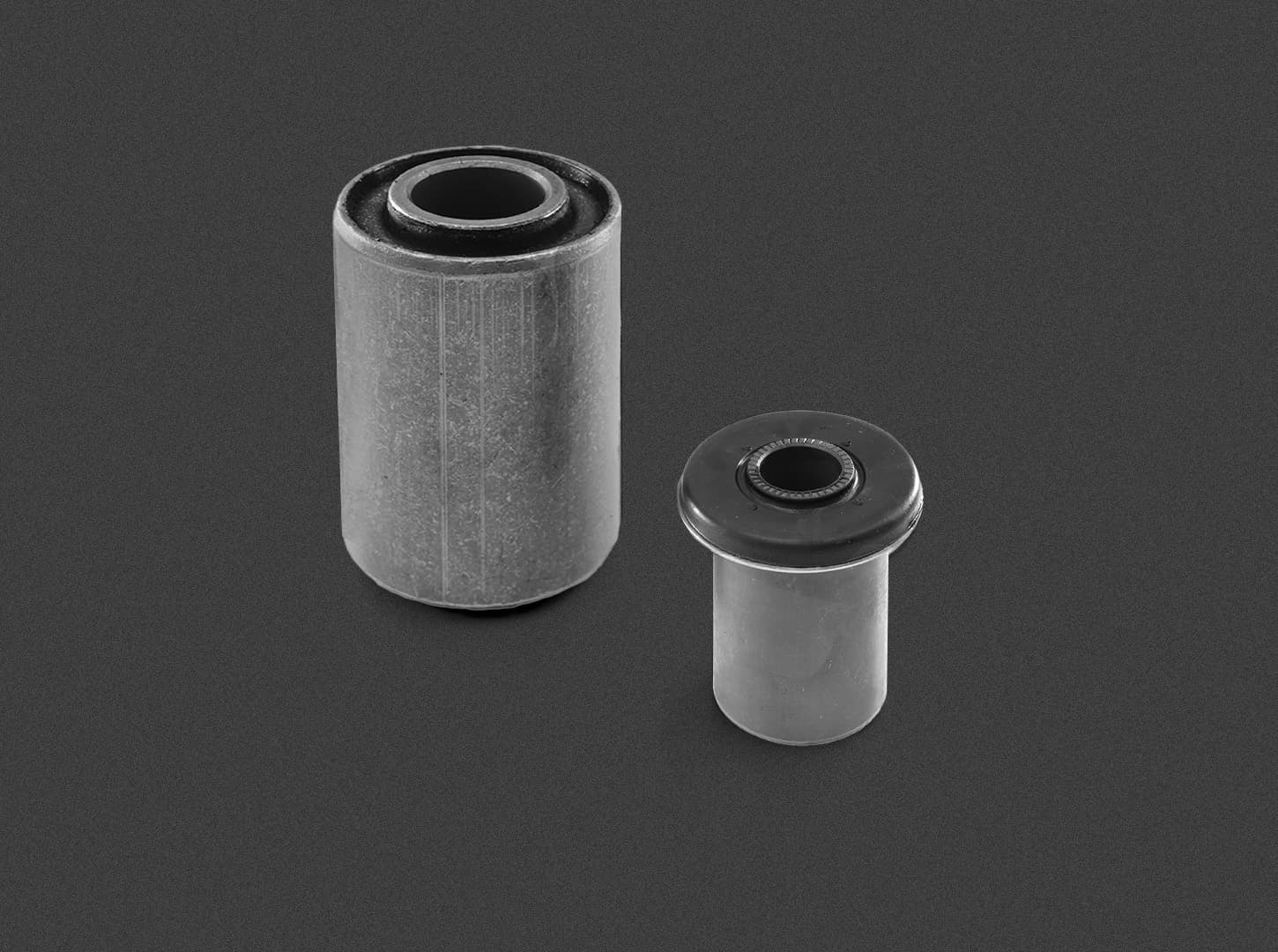

AMC-MECANOCAUCHO® Concentric Bushes are elastomeric components designed to provide flexible mechanical joints while isolating vibrations and shocks.

Their design consists of a concentric inner element and outer sleeve, bonded together by an elastomer that works primarily in torsion during angular movement. This configuration provides a metal-to-metal contact-free joint, reducing wear and eliminating the need for lubrication.

Thanks to their compact and robust design, these bushes can withstand high loads while allowing small angular movements and reducing the transmission of vibrations to the structure.

Concentric Bushes are particularly suitable for vehicle cabs, engines, mobile machinery, industrial equipment and mechanical linkages requiring flexibility, durability and long service life.

BUSHINGS

Type	Code	d(mm)	D(mm)	I(mm)	L(mm)	Weight(kg)	Torsion Mt Max.(Nm)	Angle Torsion Max.φ (°)	Conical Angle Max.β (°)	Max. Axial Load (kg)	Max. Axial Deflection(mm)	Max. Radial Load (kg)	Max. Radial Deflection(mm)
BUSHINGS	154005	10	22	25	30	0.034	7	10	3	50	1	190	0,4
	154006	10	22	30	32	0.038	9	10	2	60	0,8	230	0,45
	154168	10	25	20	25	0.031	8	10	3	25	1	200	0,8
	154103	12	30	28	34	0.064	10	15	2	60	1,9	180	0,8
	154077	12	32	55	59	0.131	19	16	2	120	2,9	700	1,8
	154104	12,2	40	40,2	60	0.198	16	20	3	45	0,95	120	0.4
	154086	12.20	46.4	52	60	0.264	33	25	3	110	1,4	300	1
	154107	14	27	40	45	0.08	20	10	2	60	2,1	450	0,6
	154080	16	32	22	30	0.073	14	10	3	75	1,1	180	0,35
	154021	18	36	48,5	58,5	0.161	35	10	2	145	2,4	740	1
	154133	20	45	35	40	0.152	45	15	2	120	3	590	2,2
	154073	20	45	64	70	0.285	55	15	2	220	2,6	1000	1,5
	154196	20	45.1	69	75	0.31	30	7,2	2	220	2,7	1750	2,4
	154082	24	45	44	55	0.265	55	11	3	190	1,3	880	0,8
	154040	25	50	50	56	0.261	34	6,6	2	280	3	1000	0,95
	154044	25	50	80	85	0.408	49	14	2	300	2,3	1800	1,6
	154054	30,2	60	90	100	0.662	68	6,4	2	350	4	2400	1,5
	154079	32	66	47	55	0.517	77	15	3	250	1,4	850	1
	154043	40	70	55	65	0.616	138	12	3	340	2,5	2100	1,3
	154075	45	75	90	100	0.956	320	10	2	640	3,6	3500	1,7
	154091	45	80	45	45	0.517	80	11	4	155	2,1	790	2,1
	154061	50	80	100	110	1.4	450	9	1	800	3,7	5600	1,8

Advantages

Mount offering high stability

Suspensions built with this mount barely move, thanks to a geometry designed to control the movement of the suspended element.

Excellent value for money

This mount delivers very high performance for its cost compared with other possible solutions.
