Akustik Saw

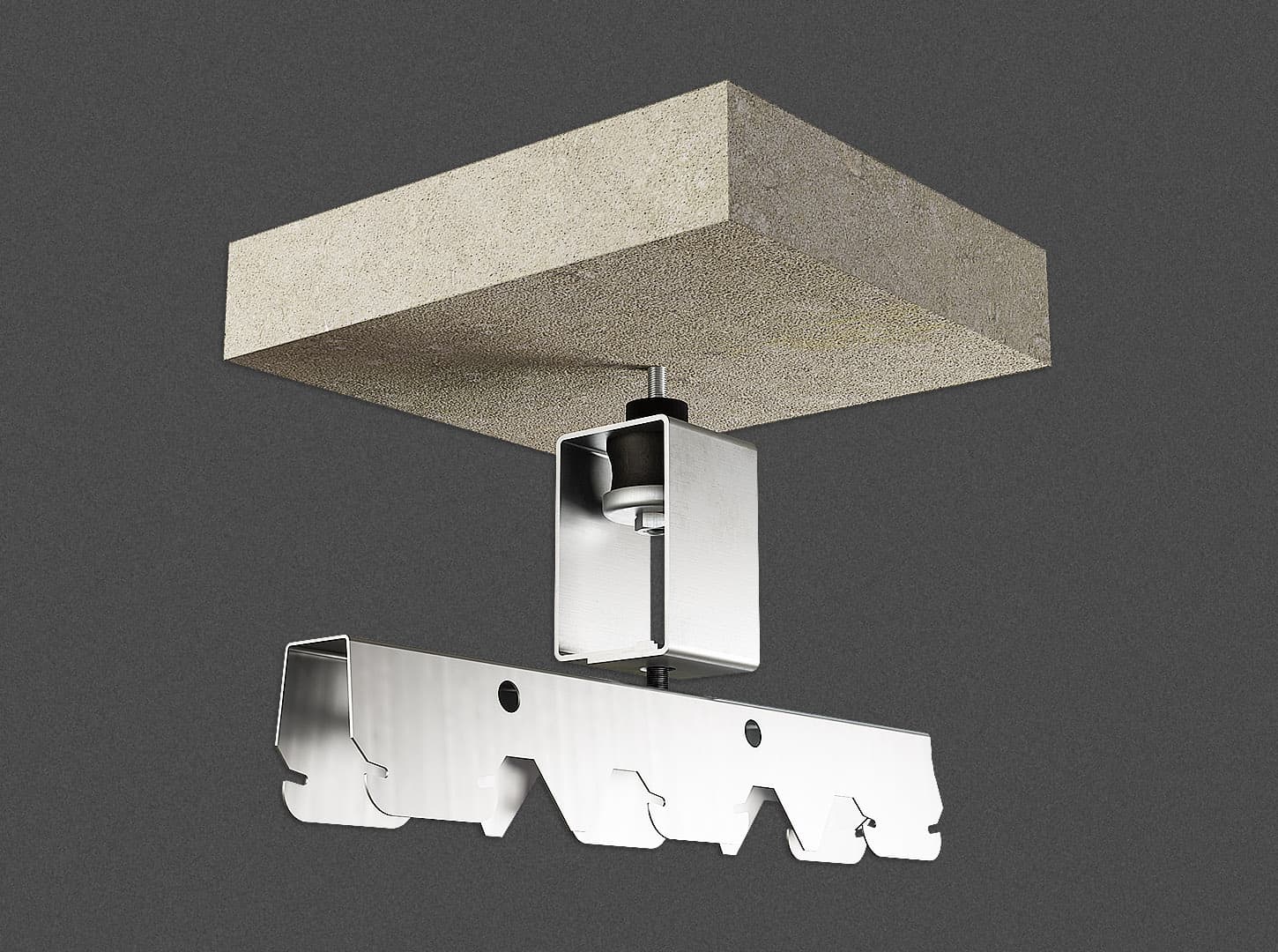

Acoustic hanger for saw-tooth ceiling profiles. Fast, secure, tool-free installation. Load range: 8–60 kg.

The Akustik Saw range is designed for the suspension of acoustic ceilings and machinery operating above 1,000 rpm. Every model incorporates the same high-performance elastomer element, specifically engineered to provide effective vibration isolation and long-term mechanical reliability.

The steel housing is designed to support loads of up to 650 kg and is protected with a corrosion-resistant zinc-plated finish. Its tool-free fixing system enables fast, secure installation on Saw ceiling profiles.

Alt imagen
Akustik Saw A-45
Akustik Saw B-60
 TypeSUMMARYMax. Load(kg)CodeWeight(kg)BIMCEUKCA
alt imagenAkustik Saw A-45Fitted directly to ceiling using two holes.8-30238610.132
 TypeSUMMARYMax. Load(kg)CodeWeight(kg)BIMCEUKCA
alt imagenAkustik Saw B-60Fitted directly to ceiling using two holes.25-60238620.132
Elastic properties
Advantages
01
Easy Installation
This mount requires minimal structural modifications, making installation quick and straightforward.
02
Secure ceiling anchorage
With more than one fixing point to the overhead slab, it is particularly reliable for anchorages with low load-bearing capacity.
Downloads
Technical Data Sheet
PDF
Download
