The AMC-MECANOCAUCHO® A-35 Trapezoidal Mount Kit is a complete set designed to simplify the installation and vibration isolation of air-conditioning and HVAC equipment.

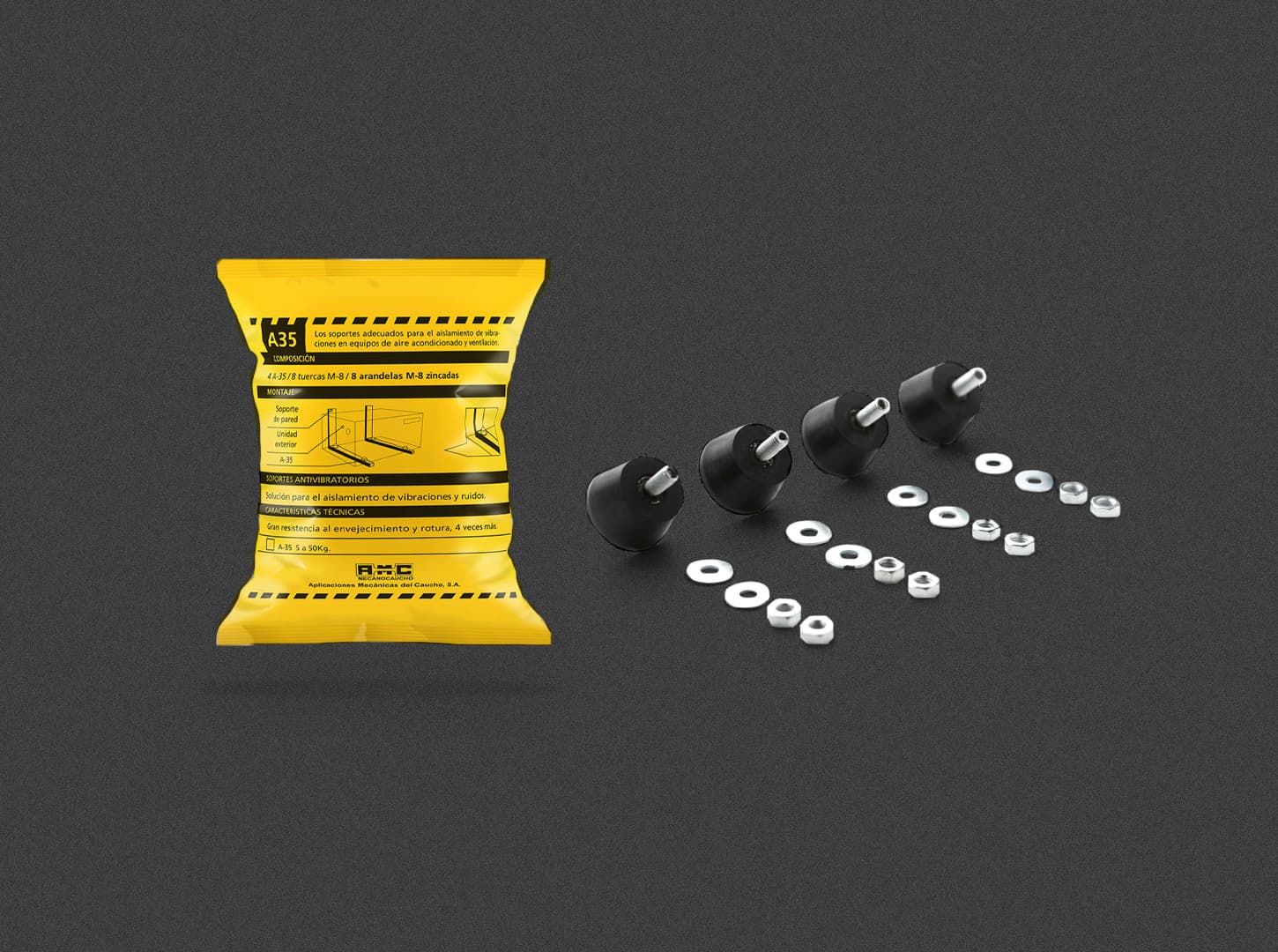

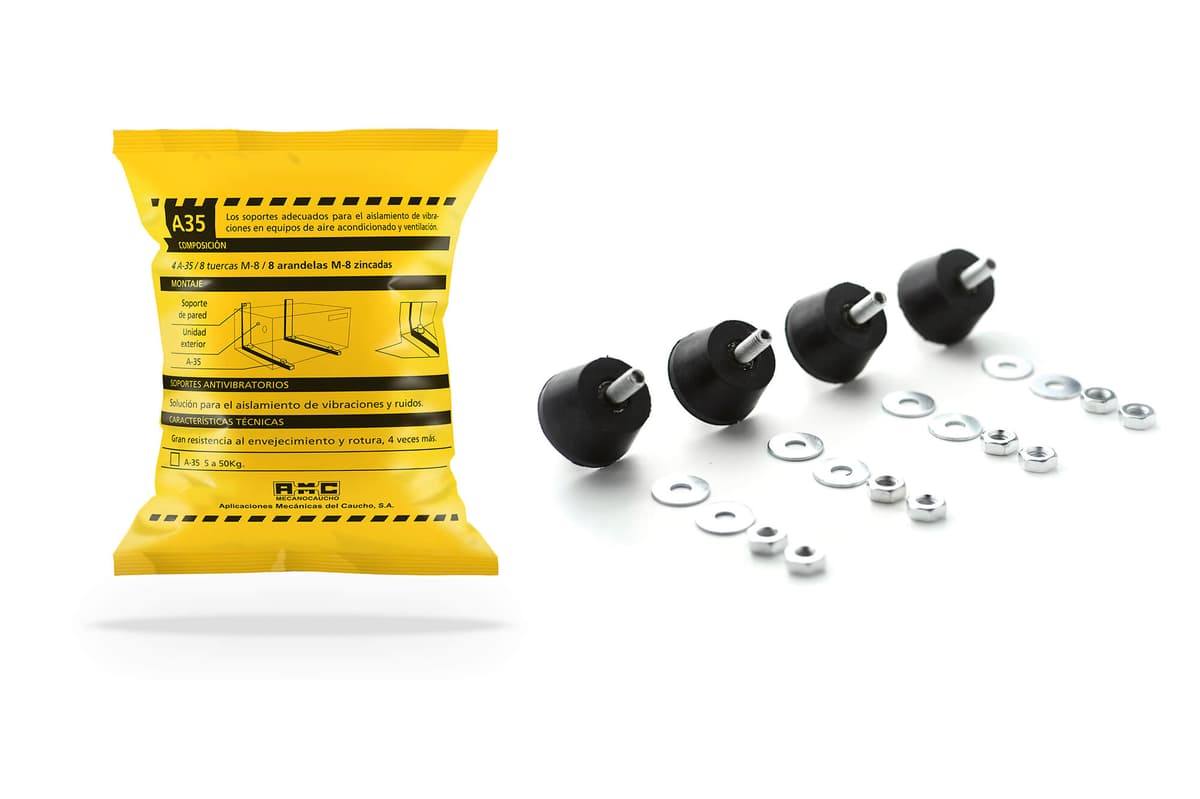

The kit includes 4 trapezoidal anti-vibration mounts together with their mounting accessories, providing a simple and quick method of installing the equipment on its supporting structure.
The elastomer elements provide an elastic connection between the equipment and the structure, helping to reduce the transmission of vibration and structure-borne noise generated during operation.
Thanks to its simple, robust and cost-effective design, the A-35 kit is particularly suitable for air-conditioning units, condensing units, heat pumps, fans and other HVAC equipment.
| Type | Code | Max.Load (kg) | Weight(kg) | Min. Load (kg) |
|---|---|---|---|---|
| A-35 | 649009 | 50 | 0.31 | 5 |
The AMC Mecanocaucho® A-35 supports have a softer stiffness in the direction which is perpendicular to its axis (shear). The AMC Mecanocaucho® A-35 supports allow for relative movements between two secured elements, movement can be accommodated to provide elasticity in the case of heat expansion, chassis deformations, etc.
