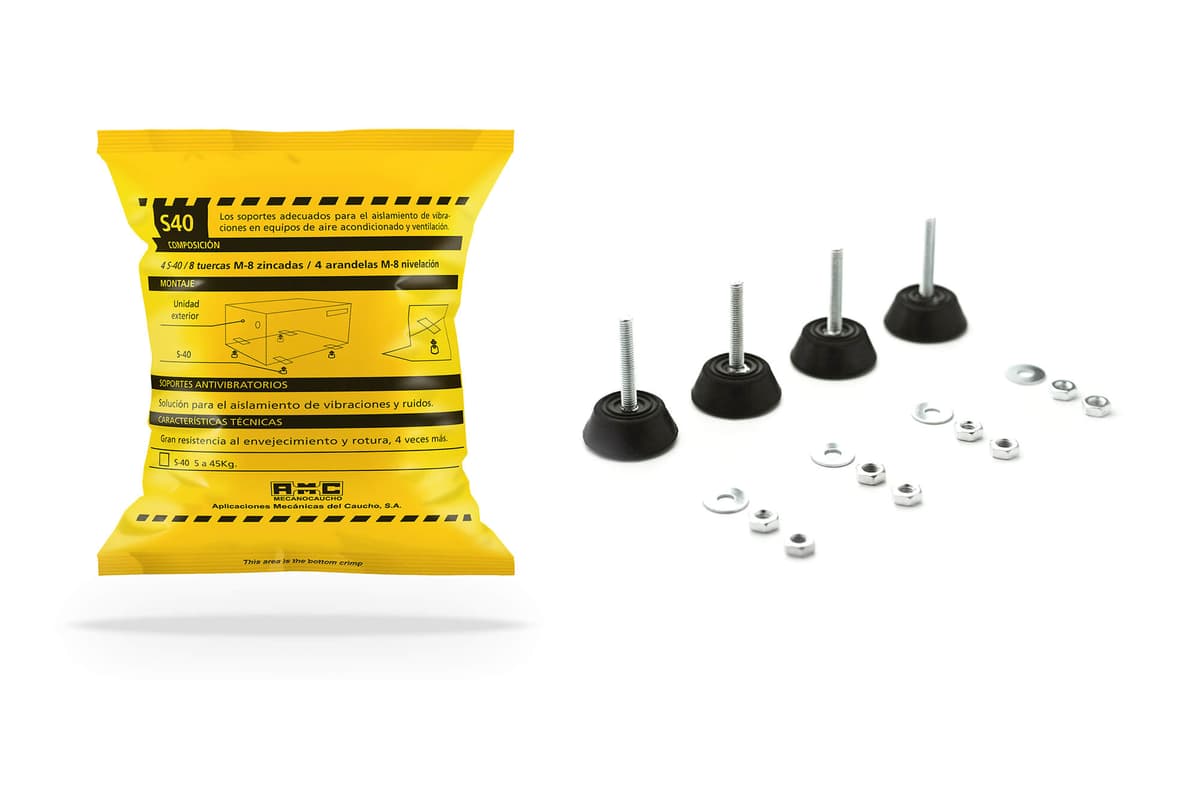

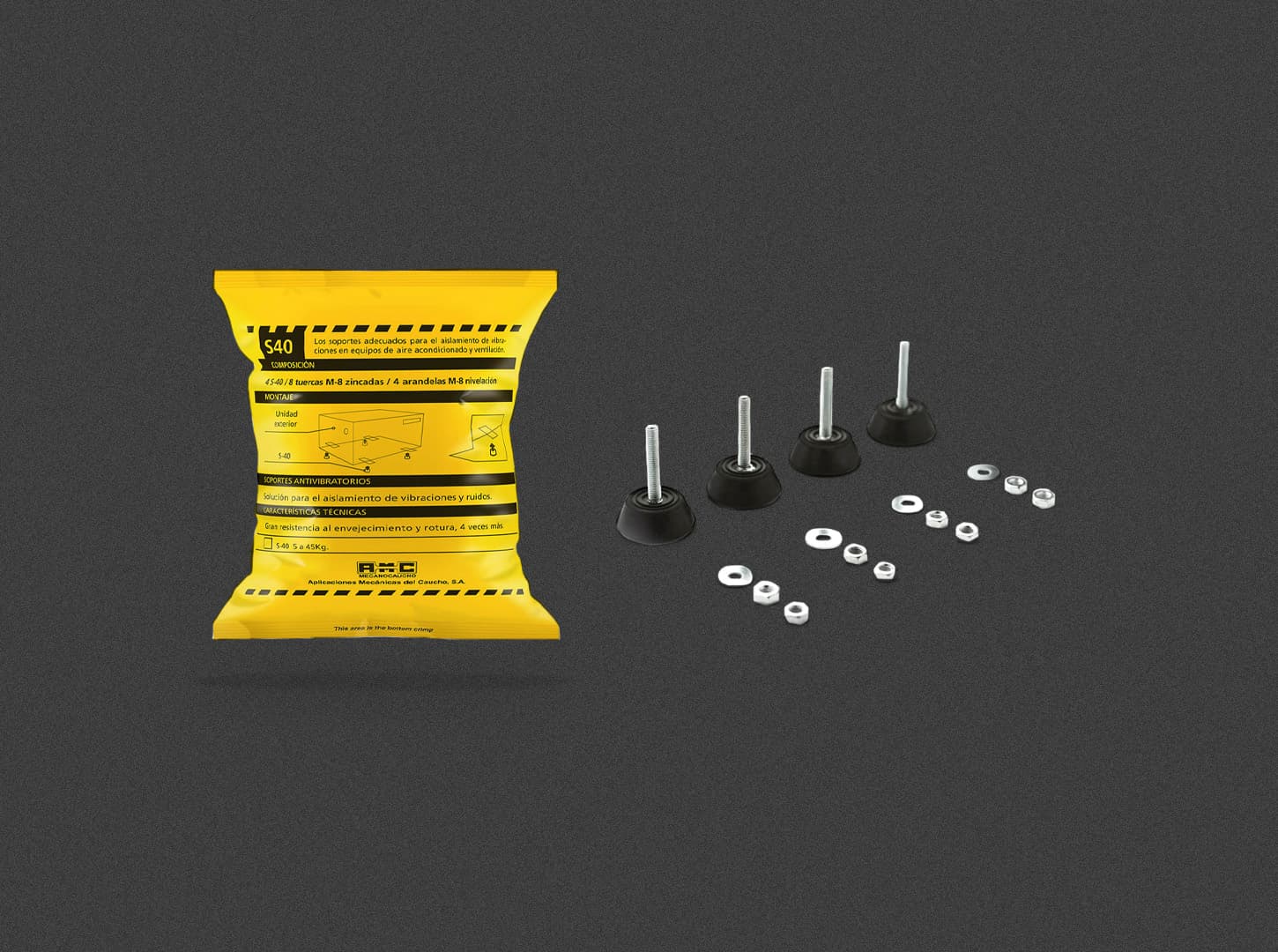

The AMC-MECANOCAUCHO® S-40 Trapezoidal Mount Kit is a set of 4 anti-vibration mounts designed to provide simple, reliable and cost-effective vibration isolation for light machinery and equipment.
The kit includes 4 S-40 trapezoidal anti-vibration mounts with their fixing nuts, allowing simple and quick installation of the equipment on its supporting structure.
The elastomer elements provide an elastic connection between the machine and the structure, helping to reduce the transmission of vibration and structure-borne noise generated during operation.
Thanks to their simple, compact and cost-effective design, S-40 mounts are particularly suitable for small motors, fans, pumps, auxiliary equipment and light industrial machinery requiring straightforward vibration isolation.
| Type | Code | Max.Load (kg) | Weight(kg) | Min. Load (kg) |
|---|---|---|---|---|
| S-40 | 649017 | 45 | 0.281 | 5 |
The AMC Mecanocaucho® S-40 supports have a softer stiffness in the direction which is perpendicular to its axis (shear). The AMC Mecanocaucho® S-40 supports allow for relative movements between two secured elements, movement can be accommodated to provide elasticity in the case of heat expansion, chassis deformations, etc.
