TFS Mount

Compact anti-vibration mount with a symmetrical design, providing similar stiffness in tension and compression and a fail-safe configuration for installations where space is limited.

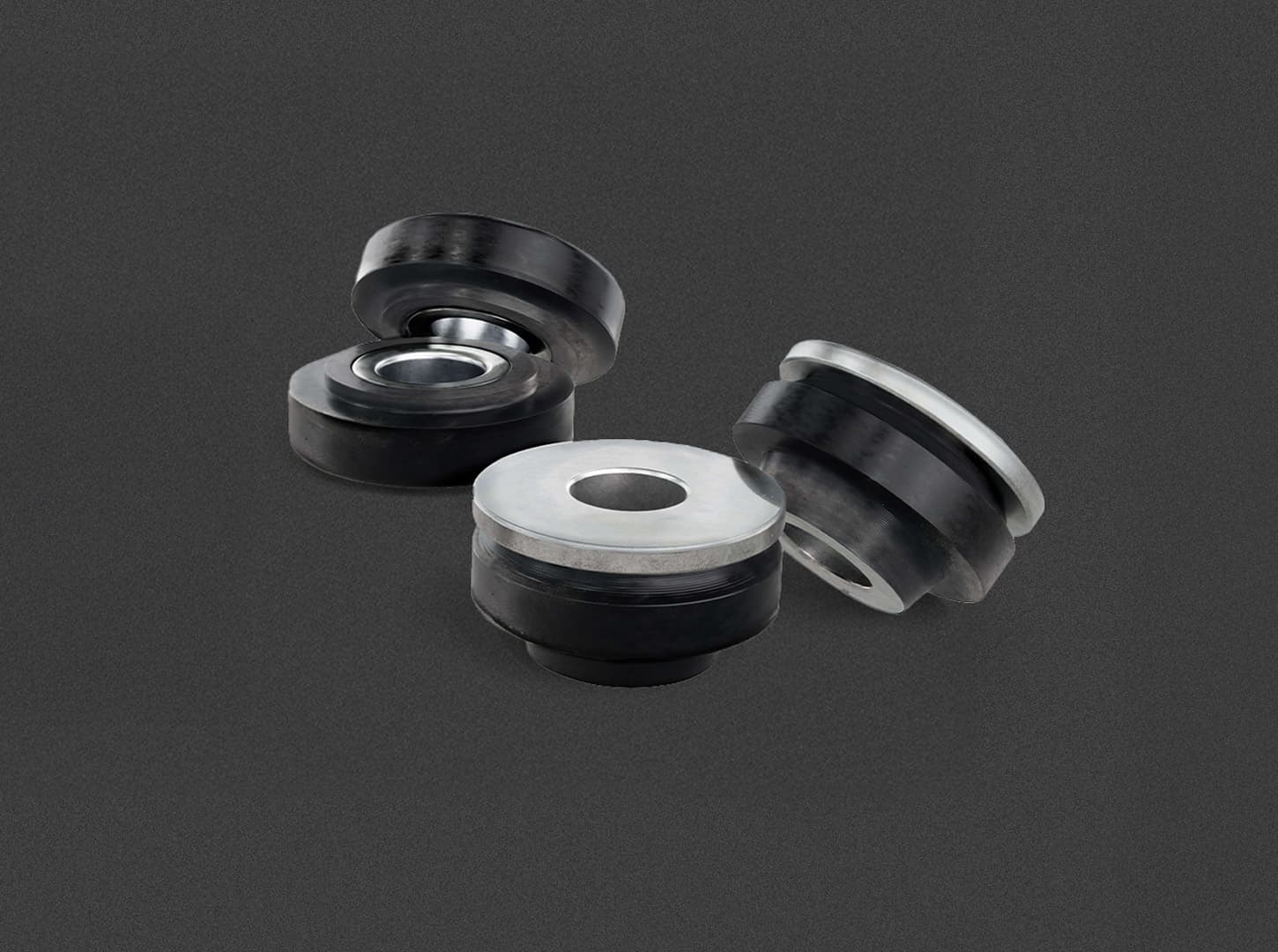

The AMC-MECANOCAUCHO® TFS anti-vibration mounts consist of two symmetrically shaped moulded elastomer elements, specifically designed for applications where installation space is limited.

Their design allows the rubber to work in both tension and compression, with similar stiffness characteristics in both directions. This symmetry provides a balanced elastic response when the equipment is subjected to vibrations, shocks or changes in load direction.

The two elements are combined with metal safety washers that limit excessive movement and provide mechanical retention of the assembly, creating a fail-safe configuration suitable for mobile applications and dynamic loads.

Thanks to their compact dimensions, TFS mounts are particularly suitable for auxiliary equipment, fans, small motors and compact machinery requiring effective vibration isolation with a simple and secure installation.

Alt imagen
TFS 25
TFS 18
TFS 22
TypeCodeMax. Load(kg)ShoreT(mm)Q(mm)R(mm)2D3D
TFS 251380351045 Sh4201
TypeCodeMax. Load(kg)ShoreT(mm)Q(mm)R(mm)2D3D
TFS 181380182040 Sh8120,5
TypeCodeMax. Load(kg)ShoreT(mm)Q(mm)R(mm)2D3D
TFS 221380423560 Sh10160,5
Technical characteristics

Technical characteristics

This anti vibration mount is designed to provide very similar tensile and compression stiffness values. This feature is particularly useful in those applications where vibration and transient forces come from various directions and constant stiffness is required in all of them.

Operation and Assembly

The TFS mounts must be installed according to the following installation instructions:

  • They can be installed in frames of different thicknesses according to the values of T, given in the table below. The load vs. deformation curves will vary depending on the thickness of the frame on which the mount is installed. This thickness "T" determines the degree of precompression of the mount.
  • For the correct installation of the mount, it is recommended to make a hole in the frame with diameter Q, given in the table below.
  • It is recommended to chamfer the hole so as not to damage the rubber.
  • The use of washers is recommended in the event that the support surface does not completely cover the rubber surface.
  • Respect the tightening torque of the mount.
  • In case of any doubt, contact the technical department.
Elastic properties
Applications
isolation-radiators-small
Radiator mounting and vibration isolation
More details
isolation-sensitive-equipment-small
Vibration protection of sensitive equipment
More details
isolation-ventilation-small
Air-Conditioning Equipment Isolation
More details
isolation-compressors-public-transport-small
Compressor Vibration Isolation in Public Transport Vehicles
More details
Advantages
01
Easy Installation
This mount requires minimal structural modifications, making installation quick and straightforward.
02
High protection against weathering and chemical contamination
The bell housing protects the rubber from ozone and UV radiation, while also preventing contact with diesel, oils or other chemicals that could damage it.
03
High robustness in dynamic applications for improved durability
These mounts offer enhanced robustness and are designed to withstand extreme load peaks. They are especially recommended where good durability is required in demanding applications.
Downloads
Technical Data Sheet
PDF
Download
TFS - Installation
PDF
Download
